Deep-Inverse Correlography: Towards Real-Time High-Resolution Non-Line-of-Sight Imaging

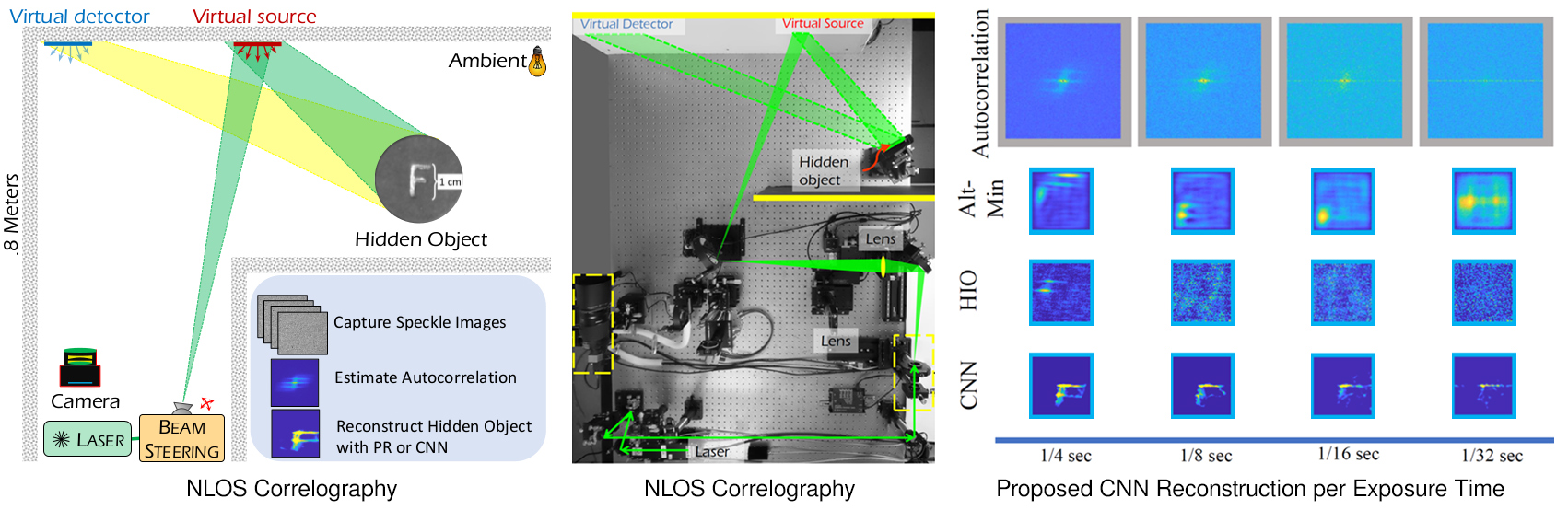

Deep Inverse Correlography: A camera uses light scattered off of a rough wall, known as a virtual detector, to reconstruct an image of the hidden object. When using a continuous-wave laser, the camera records speckle. Inset, non-line-of-sight (NLOS) correlography estimates an object’s autocorrelation using speckle images. It then uses this autocorrelation estimate to recover the object’s shape by solving a Phase Retrieval problem. Because it is more robust to noise, the CNN-based method can operate with far less light and thus at higher frame rates than a system relying on traditional PR algorithms like HIO or Alt-Min (exposure time length indicated in the bottom legend).
Low signal-to-noise ratio measurements, primarily due to the quartic attenuation of intensity with
distance, are arguably the fundamental barrier to real-time, high-resolution, non-line-of-sight (NLoS)
imaging at long stand-offs. To better model, characterize, and exploit these low SNR measurements,
we use spectral estimation theory to derive a noise model for NLoS correlography. We use this model to
develop a speckle correlation based technique for recovering occluded objects from indirect reflections.
Then, using only synthetic data sampled from the proposed noise model, and without knowledge of
the experimental scenes nor their geometry, we train a deep convolutional neural network (CNN) to
solve the noisy phase retrieval problem associated with correlography. We validate that the resulting
Deep-Inverse Correlography approach is exceptionally robust to noise, far exceeding the capabilities of
existing NLOS systems both in terms of spatial resolution achieved and in terms of total capture time.
We use the proposed technique to demonstrate NLoS imaging with 300 μm resolution at a 1 m standoff,
using just two 18-th second exposure-length images from a standard CMOS detector.
||Christopher A. Metzler, Felix Heide, Prasana Rangarajan, Muralidhar Madabhushi Balaji, Aparna Viswanath, Ashok Veeraraghavan, Richard G. Baraniuk

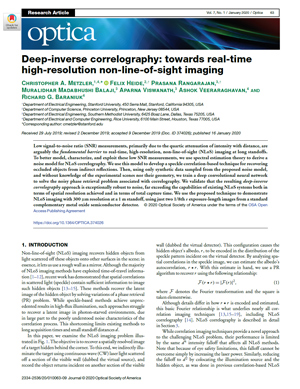

Deep-inverse correlography: towards real-time high-resolution non-line-of-sight imaging
