Frequently Asked Questions (General)

What are the goals of this assignment?

Should I implement the union–find data structures from scratch? No, use the versions in algs4.jar. On some assignments (such as this one), you will apply classic algorithms and data structures (from the textbook) to solve interesting problems. On other assignments (such as the next one), you will implement fundamental algorithms and data structures from scratch. Both are important skills.

How do I use algs4.jar?

Can I add (or remove) methods to (or from) the Percolation or PercolationStats APIs? No. You must implement the APIs exactly as specified, with the identical set of public methods and signatures (or you will receive a substantial deduction). However, you are encouraged to add private methods that enhance the readability, maintainability, and modularity of your program.

Why is it so important to implement the prescribed API? It is an essential component of modular programming, whether you are developing software by yourself or as part of a team. When you properly implement an API, others can write software to use your module or to test it. We do this regularly when grading your programs. For example, your PercolationStats client should work with our Percolation and vice versa. If you add an extra public method to Percolation and call it from PercolationStats, then your client won’t work with our Percolation. Conversely, our PercolationStats client may not work with your Percolation if you remove a public method.

How thoroughly must I test my code? For each program, you must include a main() method that unit tests the class. At a minimum, the main() method must not only call each public constructor and method directly, but it must also help verify that they work as prescribed (e.g., by printing results to standard output).

How many lines of code should my program be? You should strive for clarity and efficiency. Our reference solution for Percolation.java is about 80 lines, plus a test client. Our PercolationStats.java client is about 60 lines.

Frequently Asked Questions (Percolation)

Can I use a depth-first search based approach instead of using union–find? The percolation problem is discussed in Section 2.4 of Computer Science: An Interdisciplinary Approach (the course textbook for COS 126) and it uses depth-first search to solve a related problem. However, depth-first search will not meet the performance requirements of this assignment.

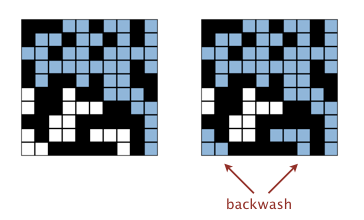

After the system has percolated, PercolationVisualizer colors in light blue all sites connected to open sites on the bottom (in addition to those connected to open sites on the top). Is this “backwash” acceptable? Yes. While allowing backwash does not strictly conform to the Percolation API, it requires a bit of ingenuity to fix. It is extra credit if you are able to implement a solution that meets the performance requirements and has no backwash.

% java-algs4 PercolationVisualizer input10.txt
Percolation backwash

Frequently Asked Questions (PercolationStats)

What should stddev() return if T equals 1? The sample standard deviation is undefined. We recommend returning Double.NaN but we will not test this case.

How do I generate a site uniformly at random among all blocked sites? Pick a site at random—use StdRandom to generate two integers between 0 (inclusive) and n (exclusive)—and use this site if it is blocked; if not, try again and repeat until you find a blocked site.

Frequently Asked Questions (readme.txt)

How do I determine which version of Java I'm using? If compiling from the command line, type the following:

% javac -version
javac 11.0.18

% java -version
openjdk version "11.0.18" 2023-01-17
OpenJDK Runtime Environment Temurin-11.0.18+10 (build 11.0.18+10)
OpenJDK 64-Bit Server VM Temurin-11.0.18+10 (build 11.0.18+10, mixed mode)
In this case, you can write the version as either OpenJDK 11.0.18 or Temurin 11.0.18.

Testing

Testing. We provide two clients that serve as large-scale visual traces. Use them for testing and debugging your Percolation implementation.

Visualization client. PercolationVisualizer.java animates the results of opening sites in a percolation system specified by a file, performing the following steps:

The program should behave as in this movie and the following snapshots when used with input20.txt.

% more input20.txt
20
 6 10
17 10
11  4
 8  4
 4  8
 0  0
...

% java-algs4 PercolationVisualizer input20.txt
Percolation 50 sites
50 open sites
Percolation 100 sites
100 open sites
Percolation 150 sites
150 open sites
Percolation 204 sites
204 open sites
Percolation 250 sites
250 open sites

Sample data files. The file percolation.zip contains sample data files for use with the visualization client. Associated with most input .txt files is an output .png file that contains the desired graphical output at the end of the visualization.

InteractiveVisualization client. InteractivePercolationVisualizer.java is similar to the first test client except that the input comes from a mouse (instead of from a file). It takes a command-line integer n that specifies the grid size.

% java-algs4 InteractivePercolationVisualizer 10
As a bonus, it writes to standard output the sequence of sites opened in the same format used by PercolationVisualizer, so you can use it to prepare interesting files for testing. If you design an interesting data file, feel free to share it with us and your classmates by posting it in the discussion forums.

Possible Progress Steps

These are purely suggestions for how you might make progress. You do not have to follow these steps.
