In this assignment, you will compute Delannoy numbers using recursion and dynamic programming. You will plot a Sierpinski triangle using recursion, then create an original recursive pattern of your own design.

Getting Started

• Read Sections 2.3 and 4.1 of the textbook and review the corresponding lectures and precepts.
• Review the StdDraw API.
• Download and unzip recursion.zip , then open the recursion project in IntelliJ.

Delannoy Numbers (brute force)

Write a program DelannoyBrute.java that takes two integer command-line arguments $m$ and $n$ and prints the Delannoy number $D(m, n)$. The Delannoy number $D(m, n)$ is the number of paths from $(0,0)$ to $(m, n)$ in an $m$-by-$n$ grid using only single steps north, east, and northeast.

For example, $D(2, 2) = 13$ because these are $13$ Delannoy paths in a 2-by-2 grid:

Use the following recurrence to compute $D(m,n)$:

$$ \displaystyle D(m, n) \; = \; \begin{cases} \;\; 1 & \text{if } m = 0 \\[.5em] \;\; 1 & \text{if } n = 0 \\[.5em] \;\; D(m-1, n) + D(m-1, n-1) + D(m, n-1) & \text{otherwise} \end{cases} $$

Organize your program according to the following public API:

public class DelannoyBrute {

    // Returns the Delannoy number D(m, n).
    public static long count(int m, int n)

    // Takes two integer command-line arguments m and n and prints D(m, n).
    public static void main(String[] args)
}

This brute-force approach is far too slow, even for moderately small $m$ and $n$.

~/Desktop/recursion> java-introcs DelannoyBrute 2 2
13

~/Desktop/recursion> java-introcs DelannoyBrute 3 2
25

~/Desktop/recursion> java-introcs DelannoyBrute 2 3
25

~/Desktop/recursion> java-introcs DelannoyBrute 3 3
63

~/Desktop/recursion> java-introcs DelannoyBrute 20 20
[takes too long]

Context: Delannoy numbers arise in combinatorics and computational biology. For example, $D(m,n)$ is the number of global alignments of two strings of lengths $m$ and $n$.

Delannoy Numbers (dynamic programming)

Now, write a program DelannoyMemo.java that takes two integer command-line arguments $m$ and $n$ and computes the Delannoy number $D(m, n)$ using dynamic programming (memoization). Model your solution after FibonacciMemo.java (lecture) and PalindromeMemo.java (precept). Use a private static two-dimensional array memo[][] such that memo[i][j] stores $D(i, j)$.

Organize your program according to the following API:

public class DelannoyMemo {

    // Returns the Delannoy number D(m, n).
    public static long count(int m, int n)

    // Takes two integer command-line arguments m and n and prints D(m, n).
    public static void main(String[] args)
}

Below are some sample executions. Unlike the brute-force version, the memoization version is fast enough to handle much larger values of $m$ and $n$.

~/Desktop/recursion> java-introcs DelannoyMemo 2 2
13

~/Desktop/recursion> java-introcs DelannoyMemo 3 2
25

~/Desktop/recursion> java-introcs DelannoyMemo 2 3
25

~/Desktop/recursion> java-introcs DelannoyMemo 3 3
63

~/Desktop/recursion> java-introcs DelannoyMemo 20 20
260543813797441

Analysis

Conduct the following computational experiments and measure the running time:

~/Desktop/recursion> java-introcs DelannoyBrute 2 2
~/Desktop/recursion> java-introcs DelannoyBrute 4 4
~/Desktop/recursion> java-introcs DelannoyBrute 8 8
~/Desktop/recursion> java-introcs DelannoyBrute 16 16

~/Desktop/recursion> java-introcs DelannoyMemo 2 2
~/Desktop/recursion> java-introcs DelannoyMemo 4 4
~/Desktop/recursion> java-introcs DelannoyMemo 8 8
~/Desktop/recursion> java-introcs DelannoyMemo 16 16

~/Desktop/recursion> java-introcs -Xss10m DelannoyMemo 3000 3000
~/Desktop/recursion> java-introcs -Xss10m DelannoyMemo 6000 6000
~/Desktop/recursion> java-introcs -Xss10m DelannoyMemo 12000 12000
~/Desktop/recursion> java-introcs -Xss10m DelannoyMemo 24000 24000

Based on the results, answer the following questions in readme.txt:

• Which runs faster: DelannoyBrute.count() or DelannoyMemo.count() ?
• Estimate the order of growth of the running time of DelannoyBrute.count(n, n) as a function of $n$?
• Estimate the order of growth of the running time of DelannoyMemo.count(n, n) as a function of $n$.

`java-introcs -Xss50m -Xmx5g DelannoyMemo 24000 24000

Sierpinski Triangle

The Sierpinski triangle is a classic fractal pattern, like the H-tree from Section 2.3 of the textbook.

Order 1

Order 2

Order 3

Order 4

Order 5

Order 6

Despite its complexity, the Sierpinski triangle can be generated with a short recursive function. Your primary task is to write sierpinski(), which that draws a Sierpinski triangle of order $n$ at a specified location and size. I should draw one filled, downward-pointing equilateral triangle, then call itself three times (with an appropriate base case).

In main(), read n from the command line and draw the outline triangle. Then call sierpinski() to draw the Sierpinski triangle of order n inside the outline.

Organize your program into four functions, as specified in the following API:

public class Sierpinski {

    // Height of an equilateral triangle with the given side length.
    public static double height(double length)

    // Draws a filled equilateral triangle with the given side length
    // whose bottom vertex is at (x, y).
    public static void filledTriangle(double x, double y, double length)

    // Draws a Sierpinski triangle of order n in which the largest filled
    // triangle has the given side length and bottom vertex at (x, y).
    public static void sierpinski(int n, double x, double y, double length)

    // Takes an integer command-line argument n; draws the outline of an
    // upward-pointing equilateral triangle of side length 1 with vertices
    // (0, 0), (1, 0), and (1/2, sqrt(3) / 2); and draws a Sierpinski
    // triangle of order n that fits inside the outline.
    public static void main(String[] args)

}

Geometry

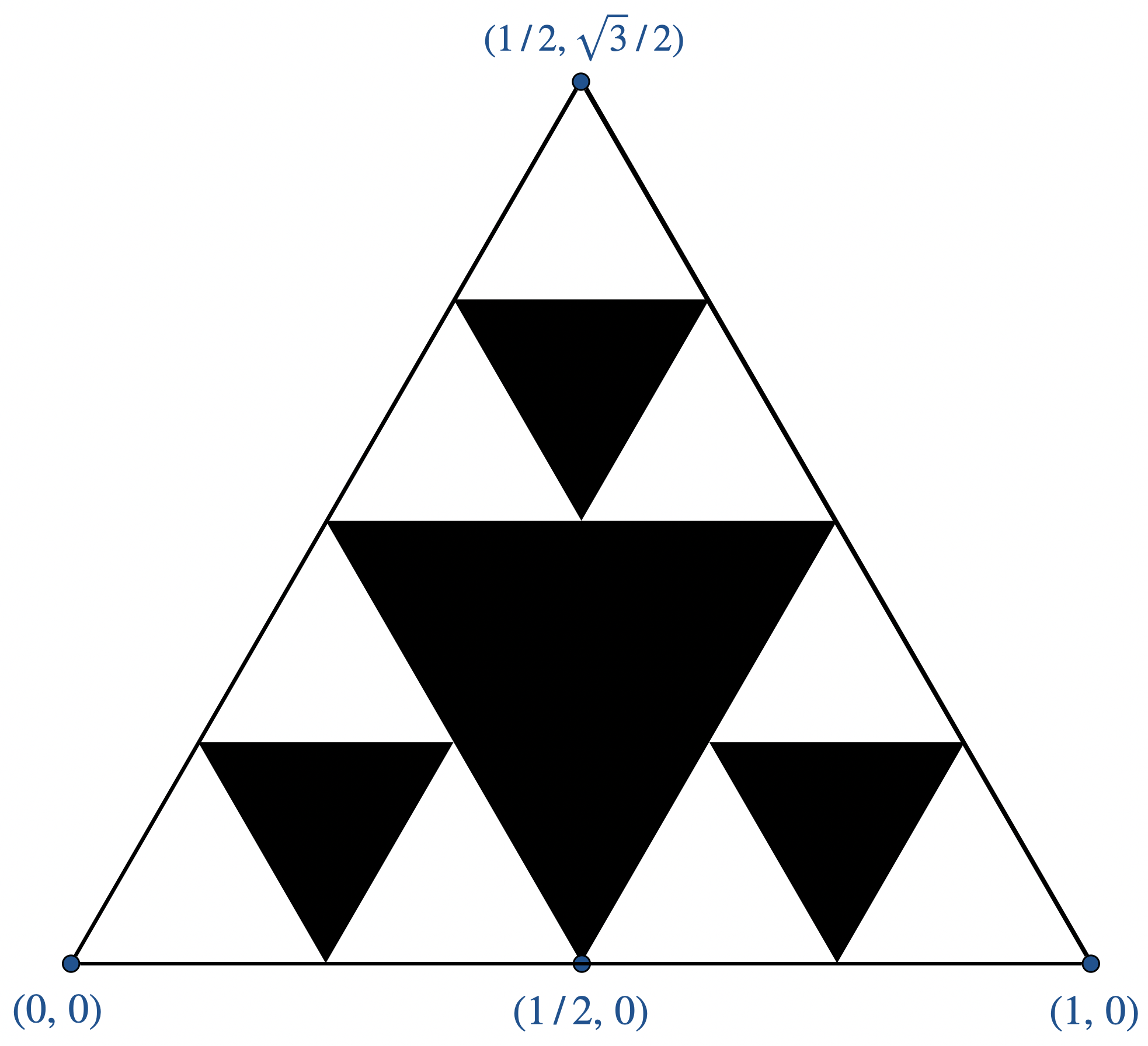

The diagram below shows the outline triangle and an order-2 Sierpinski triangle inside it.

• The outline triangle has vertices $(0, 0)$, $(1, 0)$, and $( 1 / 2, \sqrt{3} / 2)$.
• The order-2 Sierpinski triangle has side length $1 / 2$ and bottom vertex is $(1 / 2 , 0)$.

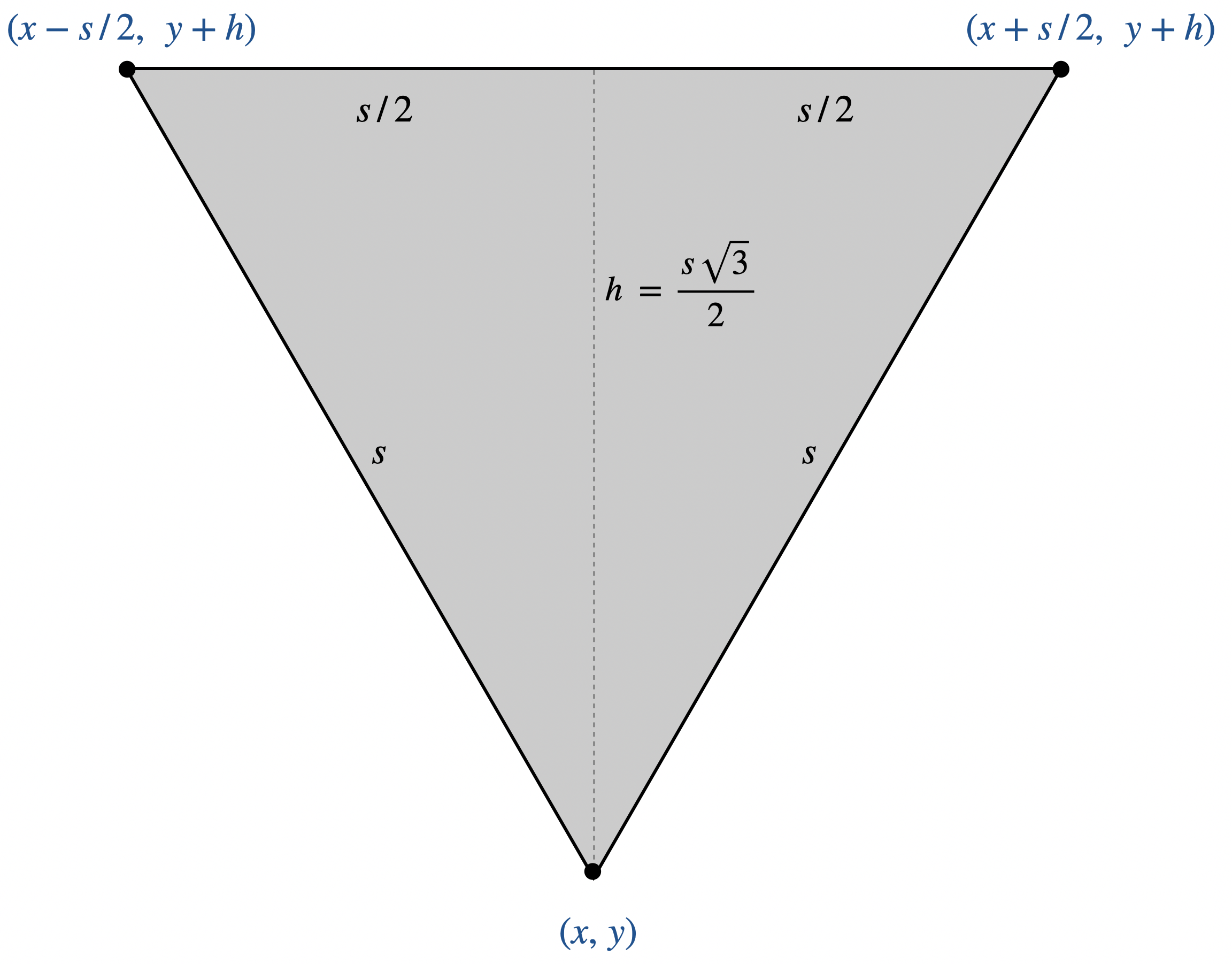

The diagram below shows a downward-pointing equilateral triangle of side length $s$ whose bottom vertex is $(x, y)$.

• The height is $h = s \sqrt{3} \; / \; 2$.
• The vertices are $(x, y)$, $(x - s/2, y + h)$, and $(x + s/2, y + h)$.

Requirements

When implementing Sierpinski.java, follow these requirements:

• Draw filled triangles using StdDraw.filledPolygon().
• Draw the outline triangle using StdDraw.polygon().
• Do not call any method in StdDraw besides polygon() and filledPolygon(). These restrictions ensure consistent grading output.
• Do not add any public methods. You may add private helper methods.

Here are some sample executions. Your output should match exactly.

~/Desktop/recursion> java-introcs Sierpinski 1



~/Desktop/recursion> java-introcs Sierpinski 2



~/Desktop/recursion> java-introcs Sierpinski 3

Context: The Polish mathematician Wacław Sierpiński described this pattern in 1915, but similar motifs appear in Italian art dating back to the 13th century.

Create Your Recursive Art

In this part, you will writeArt.java, a program that produces a recursive drawing of your own design. This part is meant to be fun, but the guidelines below may help if you are not sure where to start.

A good approach is to choose a self-referential pattern as your target output. For inspiration, see this Wikipedia list of fractals. Some patterns are harder to generate than others, and some require trigonometry.

Design your drawing before you code it. Sketch your idea on paper and plan your approach. As usual, comment your code as you go.

Requirements

1. Art.java must take one integer command-line argument n that controls the recursion depth.

2. Your drawing must stay within the drawing window for all n between 1 and 6 (inclusive). The autograder will not test values of n outside this range.

3. You may not change the canvas size. You may change the scale.

4. Do not play sound.

5. Your drawing may be a geometric pattern, a randomized construction, or anything else that takes advantage of recursion.

6. Optional: You may use the Transform2D library from precept. You may also define additional transforms in Art.java (e.g., shear, reflection across the $x$- or $y$-axis, or rotation about an arbitrary point). You may copy Transform2D.java into your local project for reference, but do not submit it. We will use the Ed Lessons implementation when grading.

7. Organize your program into at three functions, including main(). All functions except main() must be private.

8. Your artwork must genuinely rely on recursion and must be substantially different from the in-class examples (HTree, Sierpinski, NestedCircles).

9. To earn full credit, do at least two of the following:

   • Use mutually recursive methods.
   • Use multiple recursive methods.
   • Use recursion that does not always recurse from level n to level n-1.
   • Draw between recursive calls, not only before or after all recursive calls.
   • Use the recursion level for a secondary purpose (e.g., to control the color).
   • Call one or more Transform2D methods (or implement additional transforms)
   • Use different StdDraw primitives than the examples (e.g., ellipses, arcs, or text).
   • Use a non-constant number of recursive calls per level (e.g., conditional recursion).
   • Use additional parameters that affect the recursion or drawing, such as an angle, aspect ratio, color/opacity, branching factor, or a random seed.

10. You may use GIF, JPG, or PNG files in your artwork. If you do, submit them with your other files. In readme.txt, clearly indicate which parts of the design are yours and which parts come from the image files.

Student Art

Here is an animation we produced using student art:

Submission

Upload all files to TigerFile :

• DelannoyBrute.java
• DelannoyMemo.java
• Sierpinski.java
• Art.java (and optional image files)
• readme.txt -acknowledgments.txt

Note: We may anonymously publish your art. If you object, please indicate so in your readme.txt when asked. We also reserve the right to pull any art, at any time, for whatever reason; by submitting your assignment, you implicitly agree with this policy.
