COS 226 Programming Assignment Checklist: Percolation

Frequently Asked Questions

What are the goals of this assigment?

What's a checklist? The assignment checklists are meant to supplement the assignment, clearing up any potentially confusing points and providing some hints.

Is there anything else I should do before getting started? Please read the Assignments Page, including the collaboration policy, lateness policy, and submission system instructions if you have not done so already.

What Java programming environment should I use? We recommend DrJava and the command-line, which is what most of you used in COS 126 (but feel free to use your another, such as Eclipse). For instruction on installling DrJava, go to the first paragraph of Section 1.1 of Introduction to Programming in Java. You should also be comfortable using the Terminal (OS X) or Command Prompt (Windows) on your system. You can review how to do this in Section 1.5.

Where can I learn about the standard input and output libraries that are used in this course? You should be familiar with them already if you took COS 126. If you placed out of COS 126, they are described in Section 1.5 and Section 2.2 of Introduction to Programming in Java booksite. Here are the APIs.

How should I format and comment my code? Here are some recommended style guidelines. Below are some that are particularly important (and you will lose points if you ignore).

Can my Percolation data type assume the row and column indices are between 0 and N-1? No. The API specifies that the row and column indices are between 1 and N.

How long should my program be? You should strive for clarity and efficiency. Our reference solution for is about 70 lines, plus a test client. Our and clients are about 50 lines each. If you are re-implementing the union-find data structure (instead of reusing the implementations provided), you are on the wrong track.

What assumptions can I make about the input to PercolationVisualizer? It can be any valid input: that is an integer N ≥ 1, followed by pairs of integers between 1 and N. So, you do not have to worry about the input containing strings or floating-point numbers. But you do need to deal with pathological cases such as N = 1.

In PercolationVisualizer, do I need to write how many sites have been opened, as in the movie? Do I need to separate each site by a black border as in the diagrams and movie? Do I need to color the full sites exactly the same as in the diagrams and movie? No, none of these are required. To include text, use the command StdDraw.text(). To achieve the black border effect, draw the background in black and draw the sites 90% of the size of grid cell. To color the full sites, We use StdDraw.setPenColor(cyan) where Color cyan = new Color(103, 198, 243);.

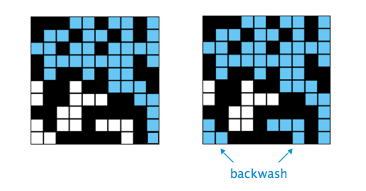

After the system has percolated, my PercolationVisualizer colors in cyan all sites connected to open sites on the bottom (in addition to those connected to open sites on the top). Is this "backwash" acceptable? Yes, we won't deduct for that. You can think of the water as filling back up from the bottom.

    % java PercolationVisualizer < input10.txt
Percolation backwash

Where can I learn about tilde notation and the analysis of algorithms? We will cover that in Lecture 2. You may wish to defer the analysis portion of the assignment until then. It is also discussed in Section 4.2 of Introduction to Programming in Java.

How efficient should the methods in Percolation be? The construction should take N^2 time; the other methods should take time at most logarithmic in N.

How efficient should PercolationVisualizer be? This program is primarily to assist in debugging, so efficiency is not paramount. It is fine (and recommended) to clear the screen and redraw all N^2 sites after each new site is opened.

How do I generate a random blocked site for use in PercolationStats? Pick a site at random (by using StdRandom to generate two integers between 1 and N) and use this site if it is blocked; if not, repeat.

I don't get reliable timing information in PercolationStats when N is 200. What should I do? Increase the size of N (say to 400, 800, and 1600), until the mean running time exceeds the standard deviation of the running time.

Is it possible to perform one experiment in PercolationStats in N^2 time? Yes, but you are not expected to discover such an algorithm on this assignment.

I'm curious. Where can I learn a bit more about the percolation model? Read Section 2.4 of Introduction to Programming in Java.

Testing and Submission

Testing. Use the input*.txt files in the directory percolation for testing.

Submission.   Be sure to click the Check All Submitted Files button to check that you submitted all of the required files and that they compile cleanly.

Possible Progress Steps

These are purely suggestions for how you might make progress. You do not have to follow these steps.

  1. Installing a Java programming environment. Follow the instructions from the Hello World assignment from COS 126 to install Java 1.6 on your system. If you have a previous version of Java, we recommend uninstalling it before upgrading. To develop your programs, we recommend DrJava and the command line. If you use an IDE (integrated development environment), be sure that you can use command-line arguments, read from standard input, and redirect standard input and output.

  2. Getting started. Download the directory percolation to your system. It contains the files stdlib.jar, Quick*.java, and readme.txt that you need to get started. There are many files in stdlib.jar which you will use each week; this week you will use StdIn, StdDraw, StdRandom, StdStats, and Stopwatch.

  3. Union-find. Read Chapter 1 of Algorithms in Java and review the slides for lecture 1 for more information on union-find algorithms. Completing this assignment successfully requires a general idea of how these algorithms work, but not a detailed understanding of the analytic results.

  4. Analysis of algorithms. Review Lecture 2, especially the section on estimating running time and the doubling hypothesis, and the section on measuring space.
