# Natural Algorithms and Influence Systems

Algorithms lay the grounds for numerical simulations and, crucially, provide a powerful framework for their analysis. The new area of natural algorithms may reprise in the life sciences the role differential equations have long played in the physical sciences.

Algorithms offer a
rich, expressive language for modelers of biological and social systems.
They lay the grounds for numerical simulations and, crucially, provide a
powerful framework for their analysis. The new area of *natural algorithms*
may reprise in the life sciences the role differential equations have
long played in the physical sciences. For this to happen, however, an
"algorithmic calculus" is needed. We discuss what this program entails
in the context of *influence systems*, a broad family of multiagent models arising in social dynamics.

The gradual elevation of "computational
thinking" within the sciences is enough to warm the heart of any
computer scientist. Yet the long-awaited dawning of a new age may need
to wait a little longer if we cannot move beyond the world of simulation
and build a theory of *natural algorithms* with real analytical
heft. By "natural algorithms," I mean the myriad of algorithmic
processes evolved by nature over millions of years. Just as differential
equations have given us the tools to explain much of the physical
world, so will natural algorithms help us model the living world and
make sense of it. At least this is the hope and, for now, I believe, one
of the most pressing challenges facing computer science.

**1.1. Science or engineering?**

To draw a fine line between science and engineering is a fool's errand. Unrepentant promiscuity makes a clean separation neither wise nor easy. Yet a few differences bear mentioning. If science is the study of the nature we have, then engineering is the study of the nature we want: the scientist will ask how the valley was formed; the engineer will ask how to cross it. Science is driven by curiosity and engineering by need: one is the stuff of discovery, the other of invention. The path of science therefore seems more narrow. We want our physical laws to be right and our mousetraps to be useful. But there are more ways to be useful than to be right. Engineering can "negotiate" with nature in ways science cannot. This freedom comes at a price, however. Any mousetrap is at the mercy of a better one. PageRank one day will go; the Second Law of thermodynamics never will. And so algorithms, like mousetraps, are human-designed tools: they are engineering artifacts.

Or are they? Perhaps search engines do not grow on trees, but leaves do, and a sophisticated algorithmic formalism, *L-systems*, is there to tell us how^{20}.
It is so spectacularly accurate, in fact, that the untrained eye will
struggle to pick out computer-generated trees from the real thing. The
algorithmic modeling of bird flocking has been no less successful. Some
will grouch that evolution did not select the human eye for its capacity
to spot fake trees and catch avian impostors. Ask a bird to assess your
computer-animated flock, they will snicker, and watch it cackle with
derision. Perhaps, but the oohs and ahhs from fans of CGI films
everywhere suggest that these models are on to something. These are
hardly isolated cases. *Natural algorithms* are quickly becoming
the language of choice to model biological and social processes. And so
algorithms, broadly construed, are *both* science and engineering.

**1.2. It is all about language**

The
triumph of 20th-century physics has been, by and large, the triumph of
mathematics. A few equations scattered on a single page of paper explain
most of what goes on in the physical world. This miracle speaks of the
organizing principles of the universe: symmetry, invariance, and
regularity—precisely the stuff on which mathematics feasts. Alas, not
all of science is this tidy. Biology = physics + history; but history is
the great, unforgiving symmetry breaker. Instead of identical particles
subject to the same forces, the life sciences feature autonomous
agents, each one with its own idea of what laws to obey. It is a long
way, scientifically speaking, from planets orbiting the sun in orderly
fashion to unruly slime molds farming bacterial crops. Gone are the
symmetry, invariance, and clockwork regularity of astronomy: what we
have is, well, sludge. But the sludge follows a logic that has its own
language, the language of *natural algorithms*.

The point of
departure with classical mathematics is indeed linguistic. While
differential equations are the native idiom of electromagnetism, no one
believes that cancer has its own "Maxwell's equations." Yet it may well
have its own natural algorithm. The chain of causal links, some
deterministic, others stochastic, cannot be expressed solely in the
language of differential equations. It is not just the diversity of
factors at play (genetic, infectious, environmental, etc.); nor is it
only their heterogeneous modes of interaction. It is also the need for a
narrative of collective behavior that can be expressed at different
levels of abstraction: first-principles; phenomenological;
systems-level; and so on. The issue is not size alone: the 3-body
problem may be intractable but, through the magic of *universality*, intricate phase transitions among 10^{30}
particles can be predicted with high accuracy. The promise of
agent-based natural algorithms is to deliver tractable abstractions for
descriptively complex systems.

**1.3. What is complexity?**

Such is the appeal of the word "complexity" that it comes in at least four distinct flavors.

*Semantic*: What is hard to understand. For 99.99% of mankind, complex means complicated.*Epistemological*: What is hard to predict. An independent notion altogether: complex chaotic systems can be simple to understand while complicated mechanisms can be easy to predict.*Instrumental*: What is hard to compute, the province of theoretical computer science.*Linguistic*: What is hard to describe. Physics has low descriptive complexity—that is part of its magic.^{a}By contrast, merely specifying a natural algorithm may require an arbitrarily large number of variables to model the diversity present in the system. To capture this type of complexity is a distinctive feature of natural algorithms.

**1.4. Beyond simulation**

Decades
of work in programming languages have produced an advanced theory of
abstraction. Ongoing work on reactive systems is attempting to transfer
some of this technology to biology^{9}.
Building on years of progress in automata theory, temporal logic, and
process algebra, the goal has been to build a modeling framework for
biological systems that integrate the concepts of concurrency,
interaction, refinement, encapsulation, modularity, stochasticity,
causality, and so on. With the right specifications in place, the hope
is that established programming language tools, such as type theory,
model checking, abstract interpretation, and the pi-calculus can aid in
verifying temporal properties of biosystems. The idea is to reach beyond
numerical simulation to analyze the structure and interactions of
biological systems.

Such an approach, however, can only be as
powerful as the theory of natural algorithms behind it. To illustrate
this point, consider classifying all possible sequences **x**, *P***x**, *P*^{2}**x**, *P*^{3}**x**, and so on, where **x** is a vector and *P*
is a fixed stochastic matrix. Simulation, machine learning, and
verification techniques can help, but no genuine understanding of the
process can be achieved without Perron–Frobenius theory. Likewise,
natural algorithms need not only computers but also a theory. The
novelty of the theory will be its reliance on algorithmic proofs—more on
this below.

**1.5. Algorithms from nature**

If
living processes are powered by the "software" of nature, then natural
selection is the ultimate code optimizer. With time and numbers on their
side—billions of years and 10^{30} living specimens—bacteria
have had ample opportunity to perfect their natural algorithm. No wonder
computer scientists are turning to biology for algorithmic insight:
neural nets and DNA computing, of course, but also ant colony
optimization^{3}, shortest path algorithms in slime molds^{2}; maximal independent sets in fly brain development^{1}, and so on. Consensus, synchronization, and fault tolerance are concepts central to both biology and distributed computing^{15,17}.
The trade of ideas promises to be flowing both ways. This article
focuses on the outbound direction: how algorithmic ideas can enrich our
understanding of nature.

A bad, fanciful script will make a
good stage-setter. One fateful morning, you stumble out of bed and into
your kitchen only to discover, crawling on the floor, a swarm of insects
milling around. Soon your dismay turns to curiosity, as you watch the
critters engage in a peculiar choreography. Each insect seems to be
choosing a set of neighbors (living or inert) and move either toward or
away from them. From what you can tell, the ants pick the five closest
termites; the termites select the nearest soil pellets; the ladybugs
pick the two ants closest to the powdered sugar that is not in the
vicinity of any termite; and so on. Each insect seems equipped with its
own selection procedure to decide how to pick neighbors based on their
species and the local environment. Once the selection is made, each
agent invokes a second procedure, this time to move to a location
determined entirely by the identities and positions of its neighbors. To
model this type of multiagent dynamics, we have introduced *influence systems*^{6}:
the model is new, but only new to the extent that it unifies a wide
variety of well-studied domain-dependent systems. Think of influence
systems as a brand of networks that perpetually rewire themselves
endogenously.

**2.1. Definition and examples**

An *influence system*, is specified by two functions *f* and *G*: it is a discrete-time dynamical system,^{b} **x** ↦ *f*(**x**) in (^{d})^{n}, where *n* is the number of agents, *d* is the dimension of the ambient space (*d* = 2 in the example above), and each "coordinate" *x*_{i} of the state **x** = (*x*_{1},..., *x*_{n}) (^{d})^{n} is a *d*-tuple encoding the location of *agent i* in ^{d}. With any state **x** comes a directed "communication" graph, *G*(**x**), with one node per agent. Each coordinate function *f*_{i} of the map *f* = (*f*_{1}, ..., *f*_{n}) takes as input the neighbors of agent *i* in *G*(**x**), together with their locations, and outputs the new location *f*_{i}(**x**) of agent *i* in ^{d}. The (action) function *f* and (communication) function *G* are evaluated by deterministic or randomized algorithms. An influence system is called *diffusive* if *f*
keeps each agent within the convex hull of its neighbors. Diffusive
systems never escape to infinity and always make consensus (*x*_{1} = ... = *x*_{n}) a fixed point. The system is said to be *bidirectional* if the communication graph always remains undirected.

While *f* and *G* can be arbitrary functions, the philosophy behind influence systems is to keep *f*
simple so that emergent phenomena can be attributed not so much to the
power of individual agents, but to the flow of information across the
communication network *G*(**x**). By distinguishing *G* from *f*,
the model also separates the syntactic (who talks to whom?) from the
semantic (who does what?). It is no surprise then to see recursive graph
algorithms play a central role and provide a dynamic version of *renormalization*, a technique used in quantum mechanics and statistical physics.

*Bounded-confidence systems*: In this popular model of social dynamics^{10},*d*= 1 and*x*_{i}is a real number denoting the "opinion" of agent*i*. That agent is linked to*j*if and only if |*x*_{i}*– x*_{j}| ≤ 1. The action function*f*instructs each agent to move to the mass center of their neighbors. This is the prototypical example of a bidirectional diffusive influence system.*Sync*: An instance of Kuramoto synchronization, this diffusive influence system links each of*n*fireflies to the other fireflies whose flashes it can spot. Every critter has its own flashing oscillator, which becomes coupled with those of its neighbors. The function*f*specifies how the fireflies adjust their flashings in reaction to the graph-induced couplings^{3,23}. The model has been applied to Huygens's pendulum clocks as well as to circadian neurons, chirping crickets, microwave oscillators, yeast cell suspensions, and pacemaker cells in the heart^{25}.*Swarming*: The agents may be fish or birds, with states encoding positions and velocities (for rigid 3D animal models,*d*= 9). The communication graph links every agent to some of its nearest neighbors. The function*f*instructs each agent to align its velocity with those of its neighbors, to move toward their center of gravity, and to fly away from its perilously close neighbors^{21,24}.*Chemotaxis*: Some organisms can sense food gradients and direct their motion accordingly. In the case of bacterial chemotaxis, the stimuli are so weak that the organisms are reduced to performing a random walk with a drift toward higher food concentrations. Influence systems can model these processes with the use of both motile and inert agents.^{c}Chemotaxis is usually treated as an asocial process (single agents interacting only with the environment). It has been observed, however, that schooling behavior can facilitate gradient climbing for fish, a case where living in groups enhances foraging ability^{19}.

Other examples of influence systems include the Ising model, neural nets, Bayesian social learning, protein–protein interaction networks, population dynamics, and so on.

**2.2. How expressive are influence systems?**

If agent *i* is viewed as a computing device, then the *d*-tuple *x*_{i} is its memory. The system is Markovian in that all facts about the past with bearing on the future are encoded in **x**. The communication graph allows the function *f* to be local if so desired. The procedure *G*
itself might be local even when appearance suggests otherwise: for
example, to identify your nearest neighbor in a crowd entails only local
computation, although, mathematically, the function requires knowledge
about everyone. The ability to encode different action/communication
rules for each agent is what drives up the *descriptive complexity* of the system. In return, one can produce great behavioral richness even in the presence of severe computational restrictions.

*Learning, competition, hierarchy*: Agents can implement game-theoretic strategies in competitive environments (e.g., pursuit-evasion games) and learn to cooperate in groups (e.g., quorum sensing). They can self-improve, elect leaders, and stratify into dominance hierarchies.*Coarse-graining*: Flocks are clusters of birds that maintain a certain amount of communicative cohesion over a period of time. We can view them as "super-agents" and seek the rules governing interaction among them. Iterating in this fashion can set the stage for dynamic renormalization in a time-changing analog of the renormalization group of statistical mechanics (see Section 6).*Asynchrony and uncertainty*: In the presence of delayed or asynchronous communication, agents can use their memory to implement a clock for the purpose of time stamping. Influence systems can also model uncertainty by limiting agents' access to approximations of their neighbors' states.

A few words about our agent-based approach. Consider the diffusion of pollen particles suspended in water. A *Eulerian* approach to this process seeks a differential equation for the concentration *c*(*x, t*) of particles at any point *x* and time *t*. There are no agents, just density functions evolving over time^{18}. An alternative approach, called *Lagrangian*,
would track the movement of all the individual particles and water
molecules by appealing to Newton's laws. Given the sheer number of
agents, this line of attack crashes against a wall of intractability.
One way around it is to pick a single imaginary self-propelled agent and
have it jiggle about randomly in a Brownian motion. This agent models a
typical pollen particle—typical in the "ergodic" sense that its time
evolution mimics the space distribution of countless particles caught on
film in a snapshot. Scaling plays a key role: our pollen particles
indeed can be observed only on a timescale far larger than the molecular
bumps causing the jiggling. Luckily, Brownian motion is scale-free,
meaning that it can be observed at any scale. As we shall see in Section
6, the ability to express a dynamical process at different scales is an
important feature of influence systems.

The strength of the
Eulerian approach is its privileged access to an advanced theory of
calculus. Its weakness lies in two commitments: global behavior is
implied by *infinitesimal* changes; and every point is subject to *identical*
laws. While largely true in physics, these assumptions break down in
the living world, where diversity, heterogeneity, and autonomy prevail.
Alas, the Lagrangian answer, agent-based modeling, itself suffers from a
serious handicap: the lack of a theory of natural algorithms.

**2.3. What could go wrong?**

There
are two arguments against the feasibility of a domain-independent
theory of natural algorithms. One is an intrinsic lack of structure. But
the same can be said of graphs, a subject whose ties to algebra,
geometry, and topology have met with resounding success, including the
emergence of universality. A more serious objection is that, before we
can analyze a natural algorithm, we must be able to specify it. The
bottom-up, reductionist approach, which consists of specifying the
functionality and communicability of each agent by hand (as is commonly
done in swarming models), might not always work. Sometimes, only a
top-down, phenomenological approach will get us started on the right
track. We have seen this before: the laws of thermodynamics were not
derived as abstractions of Newton's laws—though that is what they
are—but as rules governing observable macrostates (*P, V, T*, and
all that). Likewise, a good flocking model might want to toss aside
anthropomorphic rules ("stay aligned," "don't stray," etc.) and choose
optimized statistical rules inferred experimentally. The specs of the
natural algorithm would then be derived algorithmically. This is why we
have placed virtually no restriction on the communication function *G* in our present analysis of diffusive influence systems.

**2.4. Outline**

We open the discussion in Section 3 with the *total s-energy*,
a key analytical device used throughout. We turn to bird flocking in
Section 4, which constitutes the archetypical nondiffusive influence
system. We take on the diffusive case in Section 5, with the notion of *algorithmic calculus* discussed in Section 6.^{d}
General diffusive influence systems are Turing-complete, yet the
mildest perturbation creates periodic behavior. This is disconcerting.
Influence systems model how people change opinions over time as a result
of human interaction and knowledge acquisition. Instead of ascending
their way toward enlightenment, however, people are doomed to recycle
the same opinions in perpetuity—there is a deep philosophical insight
there, somewhere.

This section builds the tools needed for the bidirectional case and can be read separately from the rest. Let (*P*_{t})_{t≥0} be an infinite sequence of *n*-by-*n*
stochastic matrices; stochastic means that the entries are nonnegative
and the rows sum up to 1. Leaving aside influence systems for a moment,
we make no assumption about the sequence, not even that it is produced
endogenously. We ask a simple question about matrix sequences: under
what conditions does *P*_{<t}: = *P*_{t−1} ... *P*_{0} converge as *t* → ∞? Certainly not if

The problem here is lack of *self-confidence*:
the two agents in the system do not trust themselves and follow their
neighbors blindly. So let us assume that the diagonal entries of *P*_{t} are positive. Alas, this still does not do the trick: the matrices

grant
the agents self-confidence, yet composing them in alternation exchanges
the vectors (0, 1, 1/4) and (0, 1, 3/4) endlessly. The oscillation is
caused by the lack of *bidirectionality*: for example, the
recurring link from agent 3 to agent 1 is never reciprocated. The fix is
to require the graphs to be undirected or, equivalently, the matrices
to be type-symmetric,^{e} which instills mutual confidence among the agents. With both self-confidence and bidirectionality in place, the sequence *P*_{<t} *always* converges^{12, 14, 16}. (Interestingly, this is *not* true of forward products *P*_{0} ... *P*_{t} in general.) With nothing keeping (*P*_{t})_{t ≥ 0}
from "stalling" by featuring arbitrarily long repeats of the identity
matrix, bounding the convergence rate is obviously impossible. Yet an
analytical device, the *total s-energy*^{5},
allows us to do just that for bidirectional diffusive influence
systems. The trick is to show that they cannot stall too long without
dying off.

**3.1. Preliminaries**

Fix a small ρ > 0 and let (*P*_{t})_{t ≥ 0} be a sequence of stochastic matrices such that . Let *G*_{t} be the (undirected) graph whose edges are the positive entries in *P*_{t}. With **x**(*t* + 1) = *P*_{t} **x**(*t*) and **x**(0) = **x** [0, 1]^{n}, the *total s-energy* is defined as

We use the *s*-energy
in much the same way one uses Chernoff's inequalities to bound the
tails of product distributions. Being a generalized Dirichlet series,
the *s*-energy can be inverted and constitutes a lossless encoding
of the edge lengths. Why this unusual choice? Because, as with the most
famous Dirichlet series of all, the Riemann zeta function Σ*n*^{−s}, the system's underlying structure is multiplicative: indeed, just as *n* is a product of primes, *x*_{i}(*t*) – *x*_{j}(*t*) is a product of the form *v*^{T} *P*_{t}_{−1} ... *P*_{0} **x**. Let *E*_{n}(*s*) denote the maximum value of *E*(*s*) over all **x** [0, 1]^{n}. One should expect the function *E*_{n}(*s*) to encode all sorts of symmetries. This is visible in the case *n* = 2 by observing that it can be continued meromorphically in the whole complex plane (Figure 1).

The sequence formed by (*P*_{t})_{t≥0} is called *reversible* if *G*_{t} is connected and there is a probability distribution (π_{1}, ..., π_{n}) such that for any *t*; see detailed definition in Chazelle^{5}.
This gives us a way to weight the agents so that their mass center
never moves. The notion generalizes the concept of reversible Markov
chains, with which it shares some of the benefits, including faster
convergence to equilibrium.

**3.2. Bounds**

The *s*-energy measures the total length of all the edges for *s* = 1 and counts their number for *s* = 0; the latter is usually infinite, so it is sensible to ask how big *E*_{n}(*s*) can be for 0 < *s* ≤ 1. On the lower bound front, we have *E*_{n}(1) = Ω(1/ρ)^{n/2} and *E*_{n}(*s*) = *s*^{1−n},(1/ρ)^{Ω(n)}, for any *n* large enough, *s ≤ s*_{0}, and any fixed positive *s*_{0} < 1. Of course, the *s*-energy is useful mostly for its upper bounds^{5}:

For reversible sequences and any 0 < *s* ≤ 1.

where diam^{s} {*x*_{1}(*t*),...,*x*_{n}(*t*)}. This is essentially optimal. Fix an arbitrarily small ε > 0. A step *t* is called *trivial* if |*x*_{i}(*t*) – *x*_{j}(*t*)| < ε for each (*i,j*) *G*_{t}. The maximum number *C*_{ε} of nontrivial steps is bounded by *ε*^{−s} *E*_{n}(*s*); hence,

which is optimal if ε is not too small. Convergence in the reversible case is polynomial: if ε < ρ/*n*, then ||**x**(*t*) – π^{T}**x**||_{2} ≤ ε, for *t = O*(ρ^{−1} *n*^{2}|log
ε|). This bound is optimal. In particular, we can specialize it to the
case of random walks in undirected graphs and retrieve the usual mixing
times.

We briefly mention two examples of diffusive influence systems for which the *s*-energy readily yields bounds on the convergence time^{5}. *HK systems* track opinion polarization in a population^{10}: in the bounded-confidence version (mentioned earlier), the agents consist of *n* points in ^{d}. At each step, each agent moves to the mass center of the agents within distance 1 (Figure 2).

*Truth-seeking systems* assume a "cognitive division of labor"^{11}. We fix one agent, the truth, and keep the *n* – 1 others mobile. A "truth seeker" is a mobile agent that is joined to the truth in every *G*_{t}.
All the other mobile agents are "ignorant," meaning that they never
join to the truth through an edge, although they might indirectly
communicate with it along a path. Any two mobile agents are joined in *G*_{t} whenever their distance is less than 1.

**3.3. Why the -energy?**

Let `conv`

*P* denote the convex hull of the points formed by the rows of the matrix *P*. We have the "Russian doll" nesting structure (Figure 3):

The literature on stochastic matrices features a variety of *coefficients of ergodicity*
to help us measure how quickly the Russian dolls deflate: eigenvalues,
joint spectral radius, width, diameter, volume, and so on^{22}.
This is how the convergence of products of stochastic matrices, which
includes the whole subject of Markov chain mixing, is established. By
seeking progress at each step, however, these methods cannot cope with
stalling. The total *s*-energy gets around this by factoring time
out (as a Fourier transform would with a time series) and producing a
global deflation measure integrated over the whole time horizon.

The *s*-energy is controlled by a single parameter *s*, which we can adjust at will to get the most out of the inequality *C*_{ε} *≤ ε*^{−s} *E*(*s*), typically choosing *s* so that (d*E*/d*s*)_{|s} *= E* ln ε. We sketch the proof of (2), beginning with the case *s* < 1. The argument relies on an importance device: the *flow tracker*.

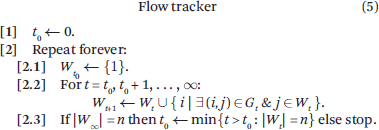

Think of it as breadth-first search in a dynamic graph. A little
imagery will help. Pick agent 1 and dip it in water, keeping all the
other agents dry. Whenever an edge of *G*_{t} links a
dry agent to a wet one, the dry one gets wet. As soon as all the agents
become wet (if ever), dry them all except agent 1; repeat.

Let *W*_{t} denote the set of wet agents at time *t*, which always includes agent 1. The assignments of *t*_{0} in step [2.3] divide the timeline into *epochs*,
time intervals during which either all agents become wet or, failing
that, the flow tracker comes to a halt (breaking out of the repeat loop
at "stop"). Take the first epoch: it is itself divided into subintervals
by the *coupling times t*_{1} < ... < *t*_{l} at which the set of wet agents grows: . If ||*W*_{t}|| denotes the length of the smallest interval enclosing *W*_{t}, it can be shown by induction that It then follows that *E*_{1}(*s*) = 0 and, for *n* ≥ 2,

which implies (2) for *s* < 1.

The case *s* = 1 features a fundamental concept in the study of natural algorithms, that of an *algorithmic proof*.
Think of the agents as car drivers: the 1-energy can then be shown to
measure the total mileage. Fill the gas tank of each car with an initial
amount determined by some formula (whose details are immaterial for our
purposes). Since we do not know ahead of time how much gas any given
car will need, we set up a gas trading mechanism: a refueling tanker
hovers over the cars, ready to provide (or take) gas to (or from) any
car that needs it. The needs come in two ways: first, a car needs gas to
move; second, the trading mechanism specifies how much gas any car must
have at any time, so any excess supply must be handed over to the
refueling tanker. Any car in need of gas (for driving or simply
complying with the rules) is free to help itself from the fuel tanker.
The trick is to show that the system can run forever without the fuel
tanker ever running out of gas and being unable to meet the drivers'
needs.

Dynamicists might think of this as a kind of distributed Lyapunov function. This would be missing the point. Algorithmic proofs of the type found in the amortized analysis of algorithms—often expressed, as above, via the trading rules of a virtual economy—are meant to cope with the sort of descriptive complexity typically absent from low-dimensional dynamics. The benefits come from the richer analytical language of algorithmic proofs: indeed, it is all about language!

We briefly discuss a classic instance of a nondiffusive influence system, bird flocking, and report the results from Chazelle^{4}. The alignment model we use^{8, 13, 24} is a trimmed-down version of Reynolds's original model^{21}. In this influence system, *d* = 6 and each bird *i* is specified by its position *z*_{i} and velocity *v*_{i}. The undirected communication graph *G*(**x**) joins any two birds within a certain fixed distance of each other (Figure 4). The birds in any connected component form a *flock*. Reordering the coordinates of the 6*n*-dimensional state vector **x** as (**z, v**), we specify the dynamics as

where *Q*(**x**) is the *n*-by-*n* "velocity" stochastic matrix of a (lazy) random walk on the graph *G*(**x**) and ⊗ is the Kronecker product that distributes the action along each coordinate axis. The matrix *P* is 2*n*-by-2*n*, so each entry is multiplied not by a single coordinate in × but by a 3-tuple; in other words, *P*(*x*) acts not on ^{2n} but on (^{3})^{2n}.
Although the velocities can be inferred from the positions, they need
to be included in the phase space to keep the system Markovian.

The
system always converges in the following sense: after an initial period
when the behavior can be fairly arbitrary, the birds aggregate in
flocks which, from that point on, can only merge together. If we wait
long enough, the flocks will eventually stabilize. The communication
graph will remain forever fixed and the flocks will each move at a
constant speed and never meet again. The fragmentation period is at most
exponential in the bit length of the input. The convergence of birds'
velocities requires the use of the total *s*-energy and various geometric considerations. One of them is to show that some *virtual bird*
must necessarily fly almost along a straight line after a while. This
addresses the issue of whether all birds can keep flying in spirals.

What
is a virtual bird? Imagine the presence of one baton in the system. At
any given time, a single bird holds the baton and may pass it on to any
of its neighbors in the communication graph (Figure 5).
Whoever holds the baton is the virtual bird at that instant (virtual
because its identity keeps changing). Is there a baton-passing protocol
that will keep the virtual bird flying in (almost) a straight line? (A
question whose answer can only be an algorithmic proof.) This is key to
determining whether two flocks flying away from each other can be
brought together by other flocks. The design of a protocol involves the
geometric analysis of the *flight net* (Figure 6), which is the unfolding of all neighboring relations in four-dimensional spacetime. This is a tree-like geometric object in ^{4}
with local convexity properties, which encodes the exponentially large
number of influences among birds. The position of each bird can be
expressed by a path integral in that space. Examining these integrals
(actually sums) and the geometry that produces them allows us to answer
the question above^{4}.

While flocks
cease to fragment reasonably rapidly (thus ensuring quick physical
convergence), it might take very long for them to stop merging. How
long? A tower-of-twos of height logarithmic in the number of birds.
Surprisingly, this result is tight! To prove that, we regard the set of
birds as forming a computer and we ask a "busy-beaver" type of question:
What is the smallest nonzero angle between any two stationary
velocities? The term "stationary" refers to the fact that each flock is a
coupled oscillator with constant stationary velocity (the lowest mode
of its spectrum). These velocity vectors form angles between them. How
small can they get short of 0? (Zero angles correspond to flocks flying
in parallel.) To answer this question requires looking at the flocks of
birds as a circuit whose gates, enacting flock merges, produce a
redistribution of the energy among the modes called a *spectral shift*.
It is remarkable that the busy-beaver function of this exotic computing
device can be pinned down almost exactly: the logarithmic height of the
tower-of-twos is known up to a factor of 4.

We set *f*(**x**) = (*P*(**x**) ⊗ **I**_{d}) **x** ε (^{d})^{n}, where *P*(**x**) is a stochastic matrix whose positive entries correspond to the edges of *G*(**x**)
and are rationals assumed larger than some arbitrarily small ρ > 0.
We grant the agents a measure of self-confidence by adding a self-loop
to each node of *G*(**x**). Agent *i* computes the *i*-th row of *P*(**x**) by means of its own algebraic decision tree; that is, on the basis of the signs of a finite number of *dn*-variate polynomials evaluated at the coordinates of **x**. This high level of generality allows *G*(**x**) to be specified by any first-order sentence over the reals.^{f} Note how the descriptive complexity resides in the communication algorithm *G*, which can be arbitrarily expressive: the action *f* is confined to diffusion (with different weights for each agent if so desired).

By taking tensor powers (no details needed here), we can linearize the system and reduce the dimension to *d* = 1, so *f*(**x**) = *P*(**x**)**x**, where *P*(**x**) = *P*_{c}, for any **x** ε *c*, and *c* is an *atom* (open *n*-cell) of an arrangement of hyperplanes in ^{n}, called the *switching partition SP* (Figure 7). We assume self-confidence but not mutual confidence, that is, positive diagonal entries but not necessarily bidirectionality.

In
spite of having no positive Lyapunov exponents, diffusive systems can
be chaotic and even Turing-complete. Perturbations wipe out their
computational power, however, by making them attracted to periodic
orbits. Such systems, in other words, are clocks in disguise.^{g} This dichotomy requires a subtle bifurcation analysis, which we sketch in the next section.

THEOREM 1:^{6} *Given
any initial state, the orbit of a diffusive influence system is
attracted exponentially fast to a limit cycle almost surely under an
arbitrarily small perturbation. The period and preperiod are bounded by a
polynomial in the reciprocal of the failure probability. In the
bidirectional case, the system is attracted to a fixed point in time n*^{O(n)}|log ε|, *where n is the number of agents and ε is the distance to the fixed point*.

The
number of limit cycles is infinite, but if we measure distinctness the
right way (i.e., by factoring out foliations), there are actually only a
finite number of them.^{h} The critical
region of parameter space is where chaos, strange attractors, and Turing
completeness reside. It is still very mysterious.^{i}
This does not mean that it is difficult to identify at least some of
the critical points. Here is a simple example of a chaotic diffusive
influence system with *n* = 4 and *d* = 1: the first two
agents stay on opposite sides of the origin; at any time, the one
further from the origin moves to their midpoint, that is,

Agent 3 is fixed at *x*_{3}
= 1. Agent 4 moves midway toward agent 1 if the latter is moving and
midway toward agent 3 if agent 2 is the one moving. To see why the
system has positive topological entropy (the usual sign of chaos), it
suffices to consider the infinite bit string *s*_{0}*s*_{1}*s*_{2} ..., where *s*_{t} = 0/1 depends on whether agent 1 or 2 is moving at time *t*. If agent 2 is initialized at *x*_{2} = 1 and agent 1 anywhere in (–1, 0), the string matches the binary expansion of 1/(1 – *x*_{1}); in other words, predicting the *t*-th step requires knowing the initial placement of agent 1 with an error exponentially small in *t*.

**5.1. Energy vs. entropy**

As
in the Ising model, the system mediates a clash between two opposing
"forces": one, caused by the map's discontinuities, is "entropic" and
leads to chaos; the other one, related to the Lyapunov exponents, is
energetic and pulls the system toward an attracting set within which the
dynamics is periodic. The goal is to show that, outside a vanishingly
small "critical" region in parameter space, entropy always loses. What
does it mean? If, unlike in Figure 7, the iterated image of any ball *b* never intersected the *SP* hyperplanes, it would merrily bounce around until eventually periodicity kicked in. In the figure, *f*^{3}(*b*)
does not oblige and splits into two smaller bodies. Both will bounce
around until possibly splitting again and so on. If this branching
process gets out of control, chaos will ensue. To squelch this entropic
process and induce periodicity, we have the stochasticity of the
matrices on our side: it causes the ball *b* to shrink and
dissipate energy. Unlike the classical Ising model, however, the system
has a single phase outside the critical region.

Entropy against energy: which one will win? For entropy to lose out, the ball *b*
must avoid splitting up too frequently. This can be expressed by an
(infinite) system of linear inequalities. Feasibility hinges on a type
of *matrix rigidity* question: in this case, given a certain
matrix, how many rows must be removed before we can express the first
column as a linear combination of the others? Periodicity requires that
this number be high. The matrix in question is extracted from the
system's stochastic matrices and the *SP* equations, hence is highly structured.

Our sketchy explanation skipped over the main source of difficulty. The ball *b* in fact does not shrink in all directions. Take (1, ..., 1)^{T}:
it is a principal right-eigenvector for the eigenvalue 1, so we would
not see much contraction in that direction. Worse, the noncontracting
principal eigenspace can have arbitrarily high dimension *d*_{t}. To prove that the critical region has measure zero requires a firm analytical grip on *d*_{t}. At time *t*, the dimension *d*_{t} is equal to the number of essential communicating classes in the Markov chain *P*(*f*^{t}(**x**)). To keep track of *d*_{t}, a number that can change constantly, we extend the flow tracker to dynamic directed graphs.

As the system evolves, we are in
a position to isolate certain subsystems and treat them recursively.
If, during a certain time interval, the communication network consists
of two dynamic subgraphs *A, B* with no directed edges from *B* to *A*, then we can break down the system during that period into *B* and *C*, where *C* consists of *A* together with the contraction of *B*
into a single vertex. This recursive treatment ("dynamic
renormalization") can only be accomplished algorithmically since we do
not know the structure of the recursive systems ahead of time—what with
edges coming and going all the time. (Observe the difference with the
Ising model, where the particles sit on a lattice and the
coarse-graining can be structured prior to action.) We mention another
difference, this time with classical algorithms. The decision tree of
influence systems (called the coding tree) is infinite, so any
perturbation has rippling effects that translate into infinitely many
conditions; this explains the need to deal with infinite series such as
the total *s*-energy or infinite sets of algebraic conditions as in the matrix rigidity problem mentioned earlier.

By scale invariance and convexity, we may confine the phase space to [0, 1]^{n}. Let *M*_{δ} denote the union of all the *SP* hyperplanes shifted by a small δ. It is useful to classify the initial states by how long it takes their orbits to hit *M*_{δ}, if ever. With *f*^{0} = **I**_{n} and min φ = ∞, we define the label *l*(**x**) of **x** ε [0, 1]^{n} as the minimum integer *t* such that *f*^{t}(**x**) ε *M*_{δ}. The point **x** is said to *vanish* at time *l*(**x**) if its label is finite. The points that do not vanish before time *t* form the set *S*_{t}: we have *S*_{0} = [0, 1]^{n}; and, for *t* > 0,

Each of *S*_{t}'s connected components is specified by a set of strict linear inequalities in ^{n}, so *S*_{t} is a union of disjoint open *n*-cells, whose number we denote by #*S*_{t}. Each cell of *S*_{t+1} lies within a cell of *S*_{t}. The limit set *S*_{∞}, = ∩_{t≥0}*S*_{t} collects the points that never vanish. We say that the system is *nesting at t* if *S*_{t} *= S*_{t+1}. The minimum value of *t* (or ∞) is called the *nesting time v* of the system. Labels cannot be skipped: if *k* is a label, then so is *k* – 1. It follows that the nesting time *v* is the minimum *t* such that, for each cell *c* of *S*_{t}, *f*^{t} (*c*) lies within an atom. If *c* is a cell of *S*_{v}, then *f*(*c*) intersects at most one cell of *S*_{v} and *S*_{v} *= S*_{∞}. Any nonvanishing orbit is eventually periodic and the sum of its period and preperiod is bounded by #*S*_{v}.

We define the directed graph *F* with one node per cell *c* of *S*_{v} and an edge from (*c, c'*), where *c'* is the unique cell of *S*_{v}, if it exists, that intersects *f*(*c*). The edge (*c, c'*) is labeled by the linear map *f*_{|c} defined by the matrix *P*_{a}, where *a* is the unique atom *a ⊆ c*.
The graph defines a sofic shift (i.e., a regular language) of the
functional kind, meaning that each node has exactly one outgoing edge,
possibly a self-loop, so any infinite path leads to a cycle. Periodicity
follows immediately. The *trajectory* of a point **x** is the string *s*(**x**) = *c*_{0}*c*_{1}... of atoms that its orbit visits: *f*^{t} (**x**) ε *c*_{t} for all 0 ≤ *t < l*(**x**). It is infinite if and only if **x** does not vanish, so all infinite trajectories are eventually periodic.

**6.1. The coding tree**

This infinite rooted tree *Τ*
encodes into one geometric object the set of all orbits. (It is the
natural-algorithm equivalent of the decision tree of classical
algorithms.) It is embedded in [0, 1]^{n} × , with the last dimension representing time. The atoms are redefined as the *n*-dimensional cells in [0, 1]^{n}\*M*_{δ}. Each child *v* of the root is associated with an atom *U*_{v}. The *phase tube* (*U*_{v}*, V*_{v}) of each child *v* is the "time cylinder" whose cross sections at times 0 and 1 are *U*_{v} and *V*_{v} *= f*(*U*_{v}), respectively. The tree is built recursively by subdividing *V*_{v} into the cells c formed by its intersection with the atoms, and attaching a new child *w* for each *c*: we set *V*_{w} *= f*(*c*) and , where *t*_{v} is the depth of *v* (Figure 8). We denote by *P*_{w} the matrix of the map's restriction to *c*. The phase tube (*U*_{V}*, V*_{V}) consists of all the cylinders whose cross sections at *t* = 0, ..., *t*_{v} are, respectively, . Intuitively, *Τ* divides up the atoms into maximal regions over which the iterated map is linear.

Let *ww'w"* ... denote the upward, *t*_{w}-node path from *w* to the root (but excluding the root). Using the notation *P*_{≤w} = *P*_{w}*P*_{w′}*P*_{w″} ..., we have the identities *V*_{w} = *P*_{≤w} *U*_{w} and *S*_{k} = _{w} {*U*_{w}|*t*_{w} = *k*}. Labeling each node *w* by the unique atom that contains the cell *c* above allows us to interpret any path as a word of atom labels and define the language *L*(*Τ*)
of all such words. The coding tree is the system's Rosetta stone, from
which everything of interest can be read. To do that, we need to define a
few parameters:

- The
*nesting time v = v*(*Τ*) is the minimum depth at which any node has at most one nonvanishing child. A node*v*is*shallow*if*t*_{v}*≤ v*. - The
*word-entropy h*(*Τ*) captures the growth rate of the language*L*(*Τ*): it is defined as the logarithm of the number of shallow nodes; #*S*_{v}≤ 2^{h(Τ)}. - The
*period p*(*Τ*) is the maximum (prime) period of any word in*L*(*Τ*).

**6.2. The arborator**

We assemble the coding tree by glueing together smaller coding trees defined recursively. We entrust this task to the *arborator*,
a recursive algorithm expressed in a language for "lego-like" assembly.
The arborator needs two (infinite) sets of parameters to do its job,
the *coupling times* and the *renormalization scales*. To
produce these numbers, we use an extension of the flow tracker (Section
3) to directed graphs. The arborator relies on a few primitives that we
briefly sketch. The direct sum and direct product are tensor-like
operations that we use to assemble the coding tree from smaller pieces (Figure 9). We can also compile a *dictionary* to keep track of the tree's parameters (nesting time, word-entropy, etc.) as we build it up one piece at a time.

*Direct sum*. The coding tree *T = T*_{1} *Τ*_{2} models two independent systems of size *n*_{1} and *n*_{2}. The phase space of the direct sum is of dimension *n = n*_{1} + *n*_{2}. A path *w*_{0}, *w*_{1}, ... of *Τ* is a pairing of paths in the constituent trees: the node *w*_{t} is of the form (*u*_{t}*, v*_{t}), where *u*_{t} (respectively, *v*_{t}) is a node of *Τ*_{1} (respectively, *Τ*_{2}) at depth *t*. The direct sum is commutative and associative; furthermore, *U*_{w} *= U*_{u} *× U*_{v}*, V*_{w} *= V*_{u} *× V*_{v}, and *P*_{w} *= P*_{u} *P*_{v}.

*Direct product*. Consider two systems *S*_{1} and *S*_{2}, governed by different dynamics yet evolving in the same phase space [0, 1]^{n}. Given an arbitrary region Λ ⊂ [0, 1]^{n}, define the hybrid system *S* with the dynamics of *S*_{2} over Λ and *S*_{1} elsewhere. Suppose we had complete knowledge of the coding tree *T*_{i} of each *S*_{i} (*i* = 1, 2). Could we then combine them in some ways in cut-and-paste style to assemble the coding tree *Τ* of *S*? The direct product *Τ*_{1} ⊗ *Τ*_{2} provides the answer. The operation is associative but not commutative. It begins by marking certain nodes of *Τ*_{1} as *absorbed* and pruning the subtrees below. This operation is called *absorption*
by analogy with the absorbing states of a Markov chain: any orbit
reaching an absorbed leaf comes to a halt, broken only after we reattach
a copy of *Τ*_{2} at that leaf. The copy must be properly cropped.

**6.3. Dynamic renormalization**

Direct
sums model independent subsystems through parallel composition. Direct
products model sequential composition. What are the benefits? In pursuit
of some form of contractivity, the generalized flow tracker classifies
the communication graphs by their connectivity properties and breaks up
orbits into sequential segments accordingly (Figure 10). It partitions the set of stochastic matrices into classes and decomposes the coding tree *Τ* into maximal subtrees consisting of nodes *v* with matrices *P*_{v}
from the same class. The power of this "renormalization" procedure is
that it can be repeated recursively. We classify the communication
graphs by their *block-directionality* type: *G*(**x**) is of type *m* → *n − m* if the agents can be partitioned into *A, B* (|*A*| = *m*) so that no *B*-agent ever links to an *A*-agent; if in addition, no *A*-agent links to any *B*-agent, *G*(**x**) is of type *m* → *n - m*. If we define the renormalization scale - *n + m* for *k* = 1, ..., *l* – 1 (where *W*_{t} denotes the set of wet nodes), any path of the coding tree can be expressed as

The
subscripts indicate the lengths of the (underlined) renormalized
subsystems. Varying the shift δ may change the coding tree, so we extend
all the previous definitions to the *global coding tree T*^{Δ} with phase space [0, 1]^{n}
× Δ, for a tiny interval Δ centered at the origin. We have all the
elements in place for the algorithmic proof of Theorem 1 to proceed: see
Chazelle^{6} for details.

I wish to thank Andrew Appel, Stan Leibler, Ronitt Rubinfeld, David Walker, and the anonymous referee for helpful comments and suggestions. This work was supported in part by NSF grants CCF-0832797, CCF-0963825, and CCF-1016250.

1. Afek,
Y., Alon, N., Barad, O., Hornstein, E., Barkai, N., Bar-Joseph, Z. A
biological solution to a fundamental distributed computing problem. *Science 331* (2011), 183–185.

2. Bonifaci, V., Mehlhorn, K., Varma, G. Physarum can compute shortest paths. In *Proceedings of 23rd Annual ACM-SIAM Symposium on Discrete Algorithms* (2012), 233–240.

3. Camazine, S., Deneubourg, J.L., Franks, N., Sneyd, J., Bonabeau, E., Theraulaz, G. Self-Organization in Biological Systems, Princeton University Press, 2001.

4. Chazelle, B. The convergence of bird flocking, arXiv:0905.4241vl, 2009. Prelim, version in *Proceedings of SIAM SODA 2009*, with improvements in *Proceedings of ACM SoCG 2010*.

5. Chazelle, B. The total s-energy of a multiagent system, *SIAM J. Control Optim. 49* (2011), 1680–1706.

6. Chazelle, B. The dynamics of influence systems, arXiv:1204.3946v2, 2012. Prelim, version in *Proceedings of 53rd FOCS*, 2012.

7. Collins, G. E. Quantifier elimination for real closed fields by cylindrical algebraic decomposition. In *Proceedings of 2nd GI Conference on Automata Theory and Formal Languages* (1975), Springer-Verlag, New York, 134–183.

8. Cucker, F., Smale, S. Emergent behavior in flocks. *IEEE Trans. Automatic Control 52* (2007), 852–862.

9. Fisher, J., Harel, D., Henzinger, T.A. Biology as reactivity. *Commun. ACM 54* (2011), 72–82.

10. Hegselmann, R., Krause, U. Opinion dynamics and bounded confidence models, analysis, and simulation. *J. Artif. Soc. Soc. Simulat. 5* (2002), 3.

11. Hegselmann R, Krause U. Truth and cognitive division of labor: first steps towards a computer aided social epistemology. *J. Artif. Soc. Soc. Simulat. 9* (2006).

12. Hendrickx, J.M., Blondel, V.D. Convergence of different linear and non-linear Vicsek models. In *Proceedings of 17th International Symposium on Mathematical Theory of Networks and Systems (MTNS2006)* (July 2006, Kyoto, Japan), 1229–1240.

13. Jadbabaie, A., Lin, J., Morse, A.S. Coordination of groups of mobile autonomous agents using nearest neighbor rules. *IEEE Trans. Automatic Control 48* (2003), 988–1001.

14. Lorenz, J. A stabilization theorem for dynamics of continuous opinions. *Phys. Stat. Mech. Appl. 355* (2005), 217–223.

15. Lynch, N.A. Distributed Algorithms, Morgan Kaufmann Publishers Inc., San Francisco, CA, 1996.

16. Moreau, L. Stability of multiagent systems with time-dependent communication links. *IEEE Trans. Automatic Control 50* (2005), 169–182.

17. Navlakha, S., Bar-Joseph, Z. Algorithms in nature: the convergence of systems biology and computational thinking. *Mol. Syst. Biol. 7* (2011), 546.

18. Okubo, A., Levin, S.A. Diffusion and Ecological Problems, 2nd edn, Springer, 2002.

19. Parrish, J.K., Hamner, W.M. Animal Groups in Three Dimensions, Cambridge University Press, 1997.

20. Prusinkiewicz, P., Lindenmayer, A., Hanan, J.S., Fracchia, F.D. The Algorithmic Beauty of Plants, Springer-Verlag, 1996.

21. Reynolds, C.W. Flocks, herds, and schools: a distributed behavioral model. *Comput. Graph. 21* (1987), 25–34.

22. Seneta, E. Non-Negative Matrices and Markov Chains, 2nd edn, Springer, 2006.

23. Strogatz, S.H. From Kuramoto to Crawford: exploring the onset of synchronization in populations of coupled oscillators. *Physica D 143* (2000), 1–20.

24.
Vicsek, T., Czirók, A., Ben-Jacob, E., Cohen, I., Shochet, O. Novel
type of phase transition in a system, of self-driven particles. *Phys. Rev. Lett. 75* (1995), 1226–1229.

25. Winfree, A.T. Biological rhythms and the behavior of populations of coupled oscillators. *J. Theoret. Biol. 16*, 1 (1967), 15–42.

a. Descriptive complexity is an established subfield of theoretical computer science and logic. Our usage is a little different, but not different enough to warrant a change of terminology.

b. A dynamical system generates an orbit by starting at a point **x** and iterating the function *f* to produce *f*(**x**), *f*^{2}(**x**), and so on. The goal is to understand the geometry of these orbits. We write the phase space ^{dn} as (^{d})^{n} to emphasize that the action is on the *n* agents embedded in *d*-space.

c. Some living systems (e.g., ants and termites) exchange information by *stigmergy*:
instead of communicating directly with signals, they leave traces such
as pheromones in the environment, which others then use as cues to
coordinate their collective work. Although lacking autonomy, inert
components can still be modeled as agents in an influence system.

d. Unless noted otherwise, the results discussed are from Chazelle^{5} for Section 3; Chazelle^{4} for Section 4; Chazelle^{6} for sections 5 and 6.

e. The zero-entries of a *type-symmetric* matrix and its transpose occur at the same locations.

f.
This is the language of geometry and algebra over the reals with
statements specified by any number of quantifiers and polynomial
(in)equalities. It was shown to be decidable by Tarski and amenable to
quantifier elimination and algebraic cell decomposition by Collins^{7}.

g. To perturb the system means randomly perturbing the switching partition and making exceptions for infinitesimal and indefinitely disappearing edges. The conditions are easy to enforce and, in one form or another, required. Note that we do not perturb the matrices or the initial states.

h. A limit cycle is an attracting periodic orbit, for example, {–1, 1} where *x*(*t*) = (–1)^{t} + 2^{−t} *x*(*t*–1) and *x*(0) .

i. I only know that the critical region has measure zero and looks like a Cantor set.

This paper is based on "Natural Algorithms," which was published in the *Proceedings of the 20th Annual ACM-SIAM Symposium on Discrete Algorithms*, 2009, and subsequent work.

Figure 1. The analytic continuation of |E_{2}(*s*)|.

Figure 2. Randomly placed agents evolve to form shapes of dimension 2, then 1, and finally 0.

Figure 3. The deflating matrix polytope.

Figure 4. The bird at the center of the circle is influenced by its two neighbors in it.

Figure 5. the virtual bird can hold on to the baton or pass it to any neighbor.

Figure 6. the flight net and path integrals in ^{4}.

Figure 7. The atom *c* of the *SP* maps via *f* to a cell intersecting two atoms.

Figure 8. A phase tube (*U*_{w}*, V*_{w}) of length two.

**©2012 ACM 0001-0782/12/12**

Permission to make digital or hard copies of part or all of this work for personal or classroom use is granted without fee provided that copies are not made or distributed for profit or commercial advantage and that copies bear this notice and full citation on the first page. Copyright for components of this work owned by others than ACM must be honored. Abstracting with credit is permitted. To copy otherwise, to republish, to post on servers, or to redistribute to lists, requires prior specific permission and/or fee. Request permission to publish from permissions@acm.org or fax (212) 869-0481.

The Digital Library is published by the Association for Computing Machinery. Copyright © 2012 ACM, Inc.

No entries found

## Comment on this article

Signed and anonymous comments submitted to this site are moderated and will appear if they are relevant to the topic and not abusive. Your comment will appear with your username if you are signed into the site, and will be anonymous if you are not signed in. View our policy on comments## Log in to Submit a Signed Comment

## Sign In »

## Sign In

To submit a signed comment, sign in using your ACM Web Account username and password if you are an ACM member, Communications subscriber or Digital Library subscriber.## Create a Web Account »

## An email verification has been sent to youremail@email.com

ACM veri�es that you are the owner of the email address you've provided by sending you a veri�cation message. The email message will contain a link that you must click to validate this account.## NEXT STEP: CHECK YOUR EMAIL

You must click the link within the message in order to complete the process of creating your account. You may click on the link embedded in the message, or copy the link and paste it into your browser.## Continue as an anonymous user »
