# Turing Machines

*First published Thu Sep 14, 1995; substantive revision Fri Nov 5, 2004*

Turing machines, first described by Alan Turing in (Turing 1937), are simple abstract computational devices intended to help investigate the extent and limitations of what can be computed.

Turing, writing before the invention of the modern digital computer,
was interested in the question of what it means to be computable.
Intuitively a task is computable if one can specify a sequence of
instructions which when followed will result in the completion of the
task. Such a set of instructions is called an *effective
procedure*, or *algorithm*, for the task. This intuition
must be made precise by defining the capabilities of the device that is
to carry out the instructions. Devices with different capabilities may
be able to complete different instruction sets, and therefore may
result in different classes of computable tasks (see the entry
on computability and complexity).

Turing proposed a class of devices that came to be known as Turing
machines. These devices lead to a formal notion of computation that we
will call *Turing-computability*.

The proposition that Turing's notion captures exactly the intuitive idea of effective procedure is called the Church-Turing thesis. This proposition, being a claim about the relationship between a formal concept and intuition, is not provable, though it would be refuted by an intuitively acceptable algorithm for a task that is not Turing-computable. That no such counterexample has been found, together with the fact that Turing-computability is equivalent to independently defined notions of computability based on alternative foundations, such as recursive functions and abacus machines, indicates that there is at least something natural about this notion of computability.

Turing machines are not physical objects but mathematical ones. We
require neither soldering irons nor silicon chips to build one. The
architecture is simply described, and the actions that may be carried
out by the machine are simple and unambiguously specified. Turing
recognized that it is not necessary to talk about *how* the
machine carries out its actions, but merely to take as given the twin
ideas that the machine can carry out the specified actions, and that
those actions may be uniquely described.

- 1. A Definition of Turing Machine
- 2. Describing Turing Machines
- 3. Varieties of Turing Machines
- 4. What Can Be Computed
- 5. What Cannot Be Computed
- 6. Alternative Formulations of Computability
- 7. Restricted Turing Machines
- Bibliography
- Other Internet Resources
- Related Entries

## 1. A Definition of Turing Machines

A Turing machine is a kind of *state machine*. At any time
the machine is in any one of a finite number of states. Instructions
for a Turing machine consist in specified conditions under which the
machine will transition between one state and another.

A Turing machine has an infinite one-dimensional *tape* divided
into cells. Traditionally we think of the tape as being horizontal
with the cells arranged in a left-right orientation. The tape has one
end, at the left say, and stretches infinitely far to the right. Each
cell is able to contain one symbol, either ‘0’ or
‘1’.

The machine has a *read-write head*, which at any time
scanning a single cell on the tape. This read-write head can move left
and right along the tape to scan successive cells.

The action of a Turing machine is determined completely by (1) the current state of the machine (2) the symbol in the cell currently being scanned by the head and (3) a table of transition rules, which serve as the “program” for the machine.

Each transition rule is a 4-tuple:

< State_{0},Symbol,State_{next},Action>

which can be read as saying “if the machine is in state
*State*_{0} and the current cell contains
*Symbol* then move into state *State*_{next}
taking *Action*”. The actions available to a Turing
machine are either to write a symbol on the tape in the current cell
(which we will denote with the symbol in question), or to move the head
one cell to the left or right, which we will denote by the symbols
« and » respectively.

If the machine reaches a situation in which there is not exactly one transition rule specified, i.e., none or more than one, then the machine halts.

In modern terms, the tape serves as the memory of the machine, while the read-write head is the memory bus through which data is accessed (and updated) by the machine. There are two important things to notice about the definition. The first is that the machine's tape is infinite in length, corresponding to an assumption that the memory of the machine is infinite. The second is similar in nature, but not explicit in the definition of the machine, namely that a function will be Turing-computable if there exists a set of instructions that will result in the machine computing the function regardless of the amount of time it takes. One can think of this as assuming the availability of infinite time to complete the computation.

These two assumptions are intended to ensure that the definition of computation that results is not too narrow. This is, it ensures that no computable function will fail to be Turing-computable solely because there is insufficient time or memory to complete the computation. If a function is not Turing-computable it is because Turing machines lack the computational machinery to carry it out, not because of a lack of spatio-temporal resources.

### 1.1. The Definition Formalized

Talk of "tape" and a "read-write head" is intended to aid the intution (and reveals something of the time in which Turing was writing) but plays no important role in the definition of Turing machines. In situations where a formal analysis of Turing machines is required, it is appropriate to spell out the definition of the machinery and program in more mathematical terms. Purely formally a machine might be defined to consist of:- A finite set of states
*Q*with a distinguished start state, - A finite set of symbols Σ

*Q*_{state}a member of*Q*.- A function σ
_{state}from the natural numbers into Σ. - A natural number
*h*_{state}.

*S*) =

*T*

- σ
_{T}agrees with σ_{S}everywhere except on*h*(and perhaps there too.)_{S} - If σ
_{S}(*h*) ≠ σ_{S}_{T}(*h*) then_{S}*h*=_{T}*h*otherwise, |_{S}*h*−_{T}*h*| ≤ 1_{S}

A formal definition such as this facilitates the analysis of the concept of Turing machine, at the cost of obscuring the underlying intutions about such machines. To see how the formal definition relates to the original one, think of the function σ as representing the tape by assigning an index to each cell of the tape, and then encoding the symbol in that cell as the value of the function σ given the index of the cell.

The read-write head is represented by the number *h* which is
the index of the cell scanned by the head.

The transition function determines the new content of the tape by returning a new function σ but this new function is constrained to differ from the original in at most the cell being scanned. If that cell is modified, then the head must not be moved in the transition, and if it is not modified, then the head is constrained to move at most one cell in either direction.

This definition is very similar to that given in the entry on computability and complexity, with the significant difference that the transition function may write a new symbol as well as move during any transition. This change does not alter the set of Turing-computable functions, and simplifies the formal definition by removing the second condition on the transition function in our definition. Both formal definitions permit the alphabet of symbols on the tape to be any finite set, while the original definition insisted on Σ={0,1} this change also does not impact the definition of the set of Turing-computable functions.

## 2. Describing Turing Machines

Every Turing machine has the same machinery. What makes one Turing machine perform one task and another a different task is the table of transition rules that make up the machine's program, and a specified*initial state*for the machine. We will assume throughout that a machine starts in the lowest numbered of its states.

We can describe a Turing machine, therefore, by specifying only the 4-tuples that make up its program. Here are the tuples describing a simple machine.

<s _{0}, 1, s_{0}, » >< s _{0}, 0, s_{1}, 1 >< s _{1}, 1, s_{1}, « >< s _{1}, 0, s_{2}, » >

When we are interested in examining the behaviour of a Turing machine, it is common and perhaps more perspicuous to represent the machine using a state diagram. Here is the machine represented in this format.

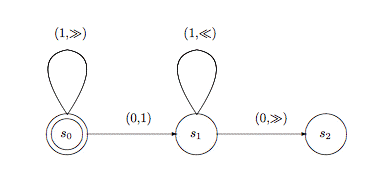

Figure 1: A State Diagram

In this figure, states are represented by the circles, with the unique double circle being the initial state. A transition is represented as an arrow originating from one circle and landing at another (possibly the same) circle. The arrows are labeled by a pair consisting first of the symbol that must be being scanned for the arrow to be followed, and second the action that is to be taken as the transition is made. The action will either be the symbol to be written, or « or » indicating a move to the left or right.

In what follows we will describe Turing machines in the state machine format.

### 2.1 Examples

In order to speak about a Turing machine that does something useful, we will have to provide an interpretation of the symbols recorded on the tape. For example, if we want to design a machine which will perform some mathematical function, addition say, then we will need to describe how to interpret the ones and zeros appearing on the tape as numbers.

In the examples that follow we will represent the number *n*
as a block of *n*+1 copies of the symbol ‘1’ on the tape. Thus
we will represent the number 0 as a single ‘1’ and the number 3 as a
block of four ‘1’s.

We will also have to make some assumptions about the configuration of
the tape when the machine is started, and when it finishes, in order
to interpret the computation. We will assume that if the function to
be computed requires *n* arguments, then the Turing machine
will start with its head scanning the leftmost ‘1’ of a
sequence of *n* blocks of ‘1’s. the blocks of
‘1's representing the arguments must be separated by a single
occurrence of the symbol ‘0’. For example, to compute the
sum 3+4, a Turing machine will start in the following configuration,
where the ellipses indicate that the tape has only zeros on the cells
that we can't see, and the upward arrow indicates the cell that is
currently scanned.

A machine must finish in standard configuration too. There must be a single block of ‘1’s on the tape, and the machine must be scanning the leftmost such ‘1’. If the machine correctly computes the function then this block must represent the correct answer. So an addition machine started in the configuration above must finish on a tape that looks like this:

Adopting this convention for the terminating configuration of a Turing machine means that we can compose machines by identifying the final state of one machine with the initial state of the next.

Under these conventions, the state diagram in
Figure 1
describes a machine which computes the successor (add-one)
function. That is when started in standard configuration on a tape
representing the number *n* it will halt in standard
configuration representing the number *n*+1. It does this by
using state s_{0} to scan to the first ‘0’ to the
right of the (single) block of ‘1’s. It then replaces that
‘0’ by a ‘1’, and scans left in state
s_{1} until a ‘0’ is found (this is the first zero
to the left of the block of ‘1’s.) It then moves back to scan
the first ‘1’ and halts in state s_{2}.

You can see a movie of the execution of this machine here.

For another example, consider the machine in Figure 2 which computes
the addition function. That is, when started on a standard tape
representing the numbers *n* and *m*, the machine halts
on a tape representing *n+m*.

Notice that this machine is like the add one machine in that states s

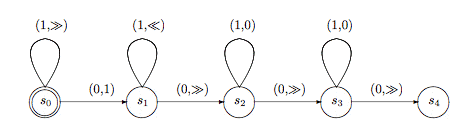

Figure 2: A Machine for Computingn+m

_{0}through s

_{2}cause the machine to write a ‘1’ to the right of the first block of ‘1’s, and returns the head to the leftmost ‘1’. In standard configuration for addition, this joins the two blocks of ‘1’s into a single block, containing (

*n*+1)+1+(

*m*+1) copies of the symbol ‘1’, so that on entering state s

_{2}the tape represents the number

*n*+

*m*+2. In order to correct this, we need to remove two copies of the symbol ‘1’, which is achieved by states s

_{2}and s

_{3}, each of which replaces a ‘1’ by ‘0’ and then moves to the right.

Since the tape initially contains at least two ‘1’s and we write one more, the deletion of two ‘1’s will leave at least one on the tape at the end of the computation, and we will be scanning the leftmost of them.

### 2.2 Instantaneous Descriptions of a Computation

The complete state of a Turing machine at any point during a
computation may be described by the name of the state that the machine
is in, the symbols on the tape, and the cell that is currently being
scanned. A description of these three data is called an
*instantaneous description* of the computation. We will
represent such a description using a figure like that in Figure 3, in
which the arrow represents the currently scanned cell and the name of
the current state is written below the arrow.

Figure 3: The Instantaneous Description of a Turing Machine Computation

## 3. Varieties of Turing Machines

We have presented here one of the most common formulations of Turing's basic idea. There are a number of variations to the formulation that turn out to be equivalent to this one, and different authors present Turing machines using any of these. Since they are all provably equivalent to one another we can consider any of the formulations as being the definition of Turing machine as we find convenient.
Formulation *F*_{1} and formulation
*F*_{2} are equivalent if for every machine
described in formulation *F*_{1} there is machine a
described in *F*_{2} which has the same input-output
behavior, and vice versa, i.e. when started on the same tape at the
same cell, will terminate with the same tape on the same cell.

**Two-way infinite tapes**

In our original formulation we specified that the tape had an end, at the left say, and stretched infinitely far to the right. Relaxing this stipulation to allow the tape to stretch infinitely far to right and left results in a new formulation of Turing machines equivalent to the original. That is for any Turing machine using a two way tape there is a Turing machine with a one-way infinite tape with the same input-output behavior, and vice versa.

**Two-dimensional tapes**

Instead of a one-dimensional infinite tape, we could consider a two-dimensional “tape”, which stretches infinitely far up and down as well as left and right. We would add to the formulation that a machine transition can cause the read-write head to move up or down one cell in addition to being able to move left and right. Again this formulation is equivalent to the original.

**Arbitrary movement of the head**

Modifying the definition of a Turing machine so that the read-write head may move an arbitrary number of cells at any given transition does not alter the notion of Turing-computability.

**Arbitrary numbers of read-write heads**

Modifying the definition of a Turing machine so that the machine has several read-write heads does not alter the notion of Turing-computability.

**Arbitrary finite alphabet**

In our original formulation we allowed the use of only two symbols on the tape. In fact we do not increase the power of Turing machines by allowing the use of any finite alphabet of symbols.

**5-tuple formulation**

A common way to describe Turing machines is to allow the machine to both write and move its head in the same transition. This formulation requires the 4-tuples of the original formulation to be replaced by 5-tuples

<State_{0},Symbol,State_{new},Symbol_{new},Move>

where *Symbol*_{new} is the symbol written,
and *Move* is one of « and ».

Again, this additional freedom does not result in a new definition of Turing-computable. For every one of the new machines there is one of the old machines with the same properties.

**Non-deterministic Turing machines**

An apparently more radical reformulation of the notion of Turing
machine allows the machine to explore alternatives computations in
parallel. In the original formulation we said that if the machine
specified multiple transitions for a given state/symbol pair, and the
machine was in such a state then it would halt. In this reformulation,
*all* transitions are taken, and all the resulting computations
are continued in parallel. One way to visualize this is that the
machine spawns an exact copy of itself and the tape for each
alternative available transition, and each machine continues the
computation. If any of the machines terminates successfully, then the
entire computation terminates and inherits that machine's resulting
tape. Notice the word successfully in the preceding sentence. In this
formulation, some states are designated as *accepting states*
and when the machine terminates in one of these states, then the
computation is successful, otherwise the computation is unsuccessful
and any other machines continue in their search for a successful
outcome.

The addition of non-determinism to Turing machines does not alter the definition of Turing-computable.

Turing's original formulation of Turing Machines used the 5-tuple representation of machines. Post introduced the 4-tuple representation, and the use of a two-way infinite tape.

**A more complex machine**

In addition to performing numerical functions using unary representation for numbers, we can perform tasks such as copying blocks of symbols, erasing blocks of symbols and so on. Here is an example of a Turing machine which when started in standard configuration on a tape containing a single block of ‘1’s, halts on a tape containing two copies of that block of ‘1’s, with the blocks separated by a single ‘0’. It uses an alphabet consisting of the symbols ‘0’, ‘1’ and ‘A’.

The action of this machine is to repeatedly change one of the original ones into an A, and then write a new ‘1’ to the right of all remaining ‘1’ on the tape, after leaving a zero between the original block and the copy. When we run out of the original ‘1’s, we turn the As back into ‘1’s.

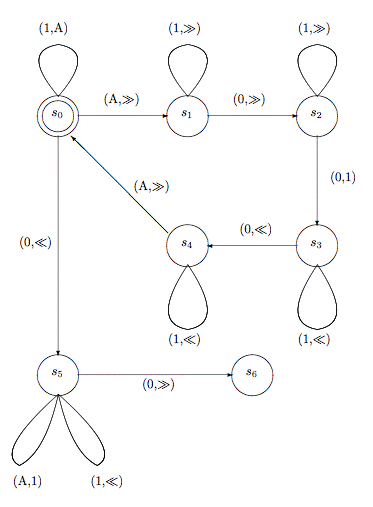

Figure 4: A Machine for Copying a Block of 1s

The initial state, *s*_{0}, is used to change a
‘1’ into an ‘A’, and move to the right and
into state *s*_{1}. In state *s*_{1} we
skip the remainder of the block of ‘1’s until we find a
‘0’ (the block separator) and in *s*_{2} we
skip any ‘1’s to the right of that ‘0’ (this
is the copy of the block of ‘1’s that we are
making.). When we reach the end of that block, we find a
‘0’, which we turn into a ‘1’ and head back to
the left, and into state *s*_{3}. States
*s*_{3} and *s*_{4} skip leftward over
the ‘1’s and separating ‘0’ on the tape until
an ‘A’ is found. When this occurs, we go back into state
*s*_{0}, and move rightward.

At this point, we are either scanning the next ‘1’ of the
original block, or the original block has all been turned into
‘A's, and we are scanning the separator ‘0’. In the
former case, we make another trip through states
*s*_{1}–*s*_{4}, but in the latter, we
move into state *s*_{5}, moving leftward. In this
state we will repeatedly find ‘A's, which we replace with
‘1’s, and move to the left. If we find a ‘0’,
then all of the ‘A's have been turned back into
‘1’s. We will be scanning the ‘0’ to the left
of the original cell, and so we move right, and into the final state
*s*_{6}.

This copying machine could be used in conjunction with the addition
machine of
Figure 2
to construct a doubling machine, i.e. a machine which, when started
on a tape representing the number *n* halts on a tape
representing *2n*. We could do this by first using the copying
machine to produce a tape with two copies of *n* on the tape,
and then using the addition machine to compute *n+n*
(=*2n*). We would do this by identifying the copying machine's
halt state (*s*_{6}) with the adding machine's initial
state (*s*_{0}).

The construction just suggested relies on the fact that the copying machine terminates in standard position, which is required for the adding machine to correctly compute its result. By designing Turing machines which start and end in standard configuration, we can ensure that they may be composed in this manner. In the example, the copying machine has a unique terminating state, but this is not necessary. We might build a Turing machine which indicates the result of its computation by terminating on one of many states, and we can the combine that machine with more that one machine, with the identity of the machine which follow dependent on the switching machine. This would enable us to create a machine which adds one to the input if that input is even, and doubles it if odd, for example (should we want to for some reason).

## 4. What Can Be Computed

Turing machines are very powerful. For a very large number of computational problems, it is possible to build a Turing machine that will be able to perform that computation. We have seen that it is possible to design Turing machines for arithmetic on the natural numbers, for example.
**Computable Numbers**

Turing's original paper concerned *computable numbers*. A
number is Turing-computable if there exists a Turing machine which
starting from a blank tape computes an arbitrarily precise
approximation to that number. All of the algebraic numbers (roots of
polynomials with algebraic coefficients) and many transcendental
mathematical constants, such as *e* and π are
Turing-computable.

**Computable Functions**

As we have seen, Turing machines can do more than write down numbers. Among other things they can compute numeric functions, such as the machine for addition (presented in Figure 2) multiplication, proper subtraction, exponentiation, factorial and so on.

By adopting a convention for representing TRUE and FALSE, perhaps that TRUE is represented as a sequence of two ‘1’s and FALSE as one ‘1’, we can compute the characteristic functions of computable predicates, and we may combine the results of such functions using the boolean functions: AND, NOT, OR, IF-THEN-ELSE.

In fact the Turing-computable functions are just the recursive functions, described below.

**Universal Turing Machines**

The most striking positive result concerning the capabilities of
Turing machines is the existence of *Universal Turing Machines*
(UTM). When started on a tape containing the encoding of another Turing
machine, call it *T*, followed by the input to *T*, a UTM
produces the same result as *T* would when started on that
input. Essentially a UTM can simulate the behavior of any Turing
machine (including itself.)

One way to think of a UTM is as a programmable computer. When a UTM is given a program (a description of another machine), it makes itself behave as if it were that machine while processing the input.

Note again, our identification of input-output equivalence with
“behaving identically”. A machine *T* working on
input *t* is likely to execute far fewer transitions that a UTM
simulating *T* working on *t*, but for our purposes this
fact is irrelevant.

In order to design such a machine, it is first necessary to define a way of representing a Turing machine on the tape for the UTM to process. To do this we will recall that Turing machines are formally represented as a collection of 4-tuples. We will first design an encoding for individual tuples, and then for sequences of tuples.

**Encoding Turing Machines**

Each 4-tuple in the machine specification will be encoded as a sequence of four blocks of ‘1’s, separated by a single ‘0’

- The first block of ones will encode the current state number, using
the unary number convention above (
*n+1*ones represents the number*n*). - The second block of ones will encode the current symbol, using one ‘1’ to represent the symbol zero, and two to represent the symbol ‘1’ (again because we can't use zero ones to represent ‘0’.)
- The third element of the tuple will represent the new state number in unary number notation.
- The fourth element represents the action, and there are four possibilities: symbols will be encoded as above, with a block of three ‘1’s representing a move to the left («) and a block of four ‘1’s representing a move to the right (»).

Using this convention the tuple <0, ‘1’, 0, »> would be represented as in Figure 4.

Figure 4: The Encoding of the Tuple <0, ‘1’, 0, »>

To encode a complete machine, we need to simply write down the tuples on the tape, in any order, but separated from one another by two blank cells. The add-one machine of Figure 1, would be represented by the somewhat intimidating string shown in Figure 5.

… 010110101111 00 101011011 00 110110110111 00 11010111011110 …

Figure 5: The Encoding of the Machine in Figure 1

If we interpret encodings such as that in Figure 5 as a binary number (ignoring trailing zeros), we see that each Turing machine has a serial number.

## 5. What Cannot Be Computed

A crucial observation about Turing machine is that there are only countably many machines (a set is countable if it is finite, or may be placed in one-to-one correspondence with the integers.) It follows immediately that there are uncountably many real numbers that are not computable, since the reals are not countable. There are simply not enough Turing machines to compute all of those numbers.

Like the real numbers, the number of functions on the natural numbers is not countable. It follows therefore that there are uncountably many such functions that are not computable by any Turing machine.

Here we give two examples of uncomputable functions.

### 5.1 The Busy Beaver

Define the *productivity* of a Turing machine as the number of
ones on the tape when it halts in standard configuration, if it does,
and 0 if it does not. The machine is assumed to start in its lowest
number state and with an initially blank tape. Now define
*p*(*n*) to be the productivity of the most productive
*n*-state machine. There is no Turing machine which will
compute the function *p*, i.e., which when started in standard
configuration on a tape with *n* ‘1’s will halt in
standard configuration on a tape with *p*(*n*)
‘1’s. This example is due to Tibor Radó
(Radó 1962).

We can prove the uncomputability of the busy beaver function by
deriving a contradiction from the assumption that such a machine
exists. The crucial step in the proof, is to note that if the Busy
Beaver machine were to exist, the productivity of the most productive
*n*+2*k* state machine is at least
*p*(*p*(*n*)), where *k* is the number of
states of the (alleged) Busy Beaver machine. This is demonstrated by
building a machine which initially writes *n* ‘1’s
on the tape (which can be done in *n* states — exercise
for the reader), and then connecting the halt state of that machine to
the start state of the Busy Beaver machine (resulting in a computation
of *p*(*n*)), and then connecting the halt state of that
machine with another copy of the Busy Beaver machine, resulting a
computation of *p*(*p*(*n*)). Thus (if the Busy
Beaver machine exists)

It is easy to show that the productivity of Turing machines increases as states are added, i.e.p(n+2k) ≥p(p(n)) for anyn.

if(another exercise). Consequently (if the Busy Beaver machine exists)i<j, thenp(i) <p(j)

Since this is true for anyn+2k≥p(n) for anyn.

*n*, it is true for

*n*+11, yielding:

But it is easy to show thatn+11+2k≥p(n+11) for anyn.

*p*(

*n*+11) ≥ 2

*n*(another exercise, but show that there is an eleven state machine for doubling the number of ‘1’ on the tape, and compose such a machine with the

*n*-state machine for writing

*n*‘1’s). Combining this fact with the previous inequality we have:

from which by subtractingn+11+2k≥p(n+11) ≥ 2nfor anyn.

*n*from both sides we have 11+2

*k*≥

*n*for any

*n*if the Busy Beaver exists, which is a contradiction.

Even though the productivity function is uncomputable, there is considerable interest in the search for Busy Beaver Turing machines (most productive machines with a given number of states). Some candidates can be found by following links in the Other Internet resources section of this article.

### 5.2 The Halting Problem

It would be very useful to be able to examine the description of a
Turing machine and determine whether it halts on a given input. this
problem is called the *Halting problem* and is, regrettably,
uncomputable. That is, no Turing machine exists which computes the
function *h*(*t*,*n*) which is defined to be TRUE
if machine *t* halts on input *n* and FALSE
otherwise.

To see the uncomputability of the halting function, imagine that
such a machine *H* exists, and consider a new machine built by
composing the copying machine of
Figure 4
with *H* by joining the halt state of the copier to the start
state of *H*. Such a machine, when started on a tape with
*n* ‘1’s determines whether the machine whose code is
*n* halts when given input *n*, i.e. it computes
*M*(*n*) = *h*(*n*,*n*).

Now lets add another little machine to the halt state of *H*.
This machine goes into an infinite sequence of transitions if the tape
contains TRUE when it starts, and halts if the tape contains FALSE (its
an exercise for the reader to construct this machine, assume that TRUE
is represented by ‘11’, and FALSE by ‘1’.)

This composed machine, call it *M*, halts if the machine with
the input code *n* does not halt on an initial tape containing
*n* (because if machine *n* does not halt on *n*,
the halting machine will leave TRUE on the tape, and *M* will
then go into its infinite sequence.) and vice versa.

To see that this is impossible, consider the code for *M*
itself. What happens when *M* is started on a tape containing
*M*s code? Assume that *M* halts on *M*, then by
the definition of the machine *M* it does not halt. But equally,
if it does not halt on *M* the definition of *M* says
that it should halt.

This is a contradiction, and the Halting machine cannot exist. The fact that the halting problem is not Turing-computable was first proved by Turing in (Turing 1937).

## 6. Alternative Formulations of Computability

### 6.1 Recursive Functions

Recursive function theory is the study of the functions that can be defined using recursive techniques (see the entry on recursive functions). Briefly, the primitive recursive functions are those that can be formed from the basic functions:

the zero function:z(x)= 0, for all xthe successor function:s(x)= x+1,for all xtheith projection overjarguments:p_{i,j}(x_{0},…x_{j})= x,_{i}for all x,_{i}i,j

by using the operations of composition and primitive recursion.

The recursive functions are formed by the addition of the minimization operator, which takes a function

Composition:f(x_{1},…,x_{n})= g(h_{1}(x_{1},…,x_{n}),…,h_{m}(x_{1},…,x_{n}))for all g,h_{1},…,h_{m}Primitive Recursion:f(x,0)= g(x)for any gf(x,s(y))= h(x,y,f(x,y))for any h

*f*and returns

*h*defined as follows:

Minimization:h(x_{1}, …,x_{n})= y, iff(x_{1}, …,x_{n},y)=0 and ∀t<y.f(x_{1}, …,x_{n},t) is defined and positive.= undefined otherwise.

It is known that the Turing computable functions are exactly the recursive functions.

### 6.2 Abacus Machines

Abacus machines abstract the more familiar architecture of the modern digital computer (the von Neumann architecture.) In its simplest form a computer with such an architecture has a number of addressable registers each of which can hold a single datum, and a processor which can read and write to these registers.

The machine can perform two basic operations, namely: add one to the
content of a named register (which we will symbolize as *n+*,
where *n* is the name of the register) and (attempt to) subtract
one from a named register, with two possible outcomes: a success branch
if the register was initially non-zero, and a failure branch if the
register was initially zero (we will symbolize the operation as
*n-*).

These are called *abacus computers* by Lambek (Lambek 1961),
and are known to be equivalent to Turing machines.

The modern digital computer is subject to finiteness constraints that we have abstracted away in the definition of abacus machines, just as we did in the case of Turing machines. Physical computers are limited in the number of memory locations that they have, and in the storage capacity of each of those locations, while abacus machines are not subject to those constraints. Thus some abacus-computable functions will not be computable by any physical machine. (We won't consider whether Turing machines and modern digital computers remain equivalent when both are given external inputs, since that would require us to change the definition of a Turing machine.)

## 7. Restricted Turing Machines

One way to modify the definition of Turing machines is by removing their ability to write to the tape. The resulting machines are called*finite state machines*. They are provably less powerful than Turing machines, since they cannot use the tape to remember the state of the computation. For example, finite state machines cannot determine whether an input string consists of some As followed by the same number of Bs. The reason is that the machine cannot remember how many As it has seen so far, except by being in a state that represents this fact, and determining whether the number of As and Bs match in all cases would require the machine to have infinitely many states (one to remember that it has seen one A, one to remember that it has seen 2, and so on.)

## Bibliography

- Barwise, J. and Etchemendy, J., 1993,
*Turing's World*, Stanford: CSLI Publications. - Boolos, G.S. and Jeffrey, R.C., 1974,
*Computability and Logic*, Cambridge: Cambridge University Press. - Davis, M., 1958,
*Computability and Unsolvability*, McGraw-Hill; reprinted Dover 1982. - Herken, R., (ed.), 1988,
*The Universal Turing Machine: A Half-Century Survey*, New York: Oxford University Press. - Hodges, A., 1983,
*Alan Turing, The Enigma*, New York: Simon and Schuster. - Kleene, S.C., 1936, "General recursive Functions of Natural Numbers".
*Mathematische Annalen*, 112. - Lambek, J., 1961, "How to program an infinite abacus",
*Canadian Mathematical Bulletin*, 4: 279–293. - Lewis, H.R. and Papadimitriou, C.H., 1981,
*Elements of the Theory of Computation*, Prentice-Hall. - Lin, S. and Radó, T., 1965, "Computer Studies of Turing Machine
Problems,"
*Journal of the Association for Computing Machinery*, 12, 196–212. - Post, E., 1947, "Recursive Unsolvability of a Problem of Thue,"
*The Journal of Symbolic Logic*, 12. - Radó, T., 1962, "On Non-computable functions",
*Bell System Technical Journal*, May. - Turing, A.M., 1936-7, "On Computable Numbers, With an Application
to the Entscheidungsproblem",
*Proceedings of the London Mathematical Society*, (2) 42, pp 230-265; correction*ibid*. 43, pp 544-546 (1937). [Available Online]. - Turing, A.M., 1937, "Computability and λ-Definability",
*The Journal of Symbolic Logic*, 2.

## Other Internet Resources

- Turing Machines,
the original version of the present entry, written by the
Editors at the
*Stanford Encyclopedia of Philosophy*in September 1995 and last modified in the Summer 2003 Edition. - The Alan Turing Home Page
- The Turing's World Homepage

### Busy Beaver

### The Halting Problem

### Online Turing Machine Simulators

There are many Turing machine simulators available. Here are three that use different technologies to implement simulators using your browser.- Andrew Hodges' Turing Machine Simulator (for limited number of machines)
- Suzanne Britton's Turing Machine Simulator (A Java Applet)
- CGI Based Turing Machine Simulator

- Turing's World: a courseware package available from CSLI Publications (Macintosh only)
- Visual Turing: freeware simulator for Widnows 95/98/NT/2000
