COS 226 Percolation
Programming Assignment checklist
Write a program to estimate the value of the percolation threshold via Monte Carlo simulation.
Install a Java programming environment. Install a Java programming environment on your computer by following these stepbystep instructions for your operating system [ Mac OS X · Windows · Linux ].
After following these instructions, the commands javacalgs4
and javaalgs4
will classpath in algs4.jar
,
which contains Java classes for I/O and all of the algorithms in the textbook.
To access a class in algs4.jar
, you need an import
statement, such as the ones below:
import edu.princeton.cs.algs4.StdRandom; import edu.princeton.cs.algs4.StdStats; import edu.princeton.cs.algs4.WeightedQuickUnionUF;
Percolation. Given a composite systems comprised of randomly distributed insulating and metallic materials: what fraction of the materials need to be metallic so that the composite system is an electrical conductor? Given a porous landscape with water on the surface (or oil below), under what conditions will the water be able to drain through to the bottom (or the oil to gush through to the surface)? Scientists have defined an abstract process known as percolation to model such situations.

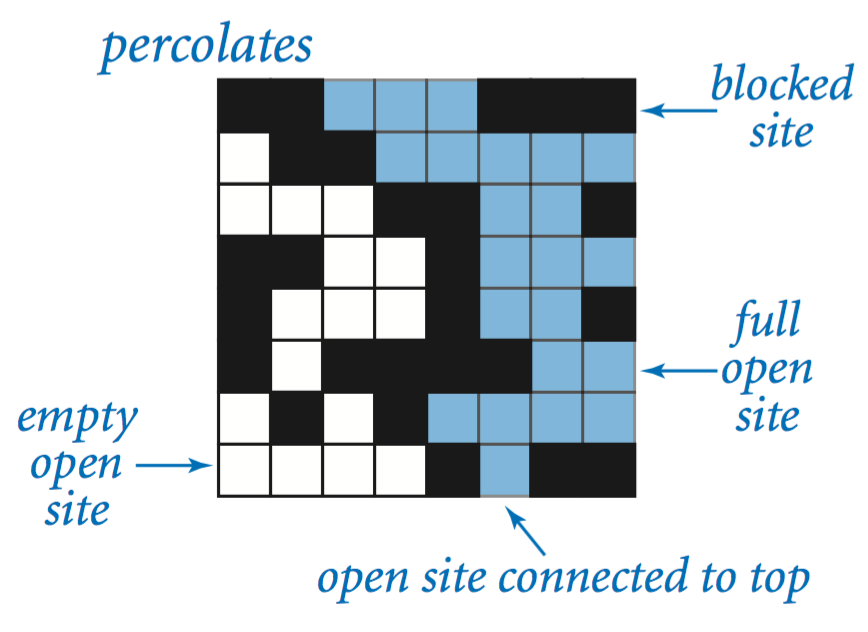

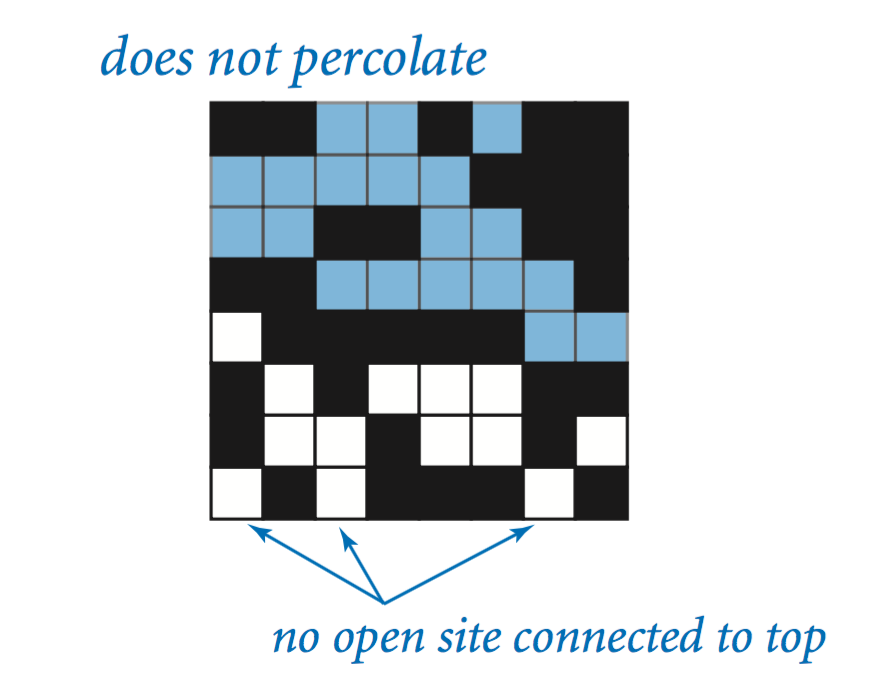

The model. We model a percolation system using an nbyn grid of sites. Each site is either open or blocked. A full site is an open site that can be connected to an open site in the top row via a chain of neighboring (left, right, up, down) open sites. We say the system percolates if there is a full site in the bottom row. In other words, a system percolates if we fill all open sites connected to the top row and that process fills some open site on the bottom row. (For the insulating/metallic materials example, the open sites correspond to metallic materials, so that a system that percolates has a metallic path from top to bottom, with full sites conducting. For the porous substance example, the open sites correspond to empty space through which water might flow, so that a system that percolates lets water fill open sites, flowing from top to bottom.)

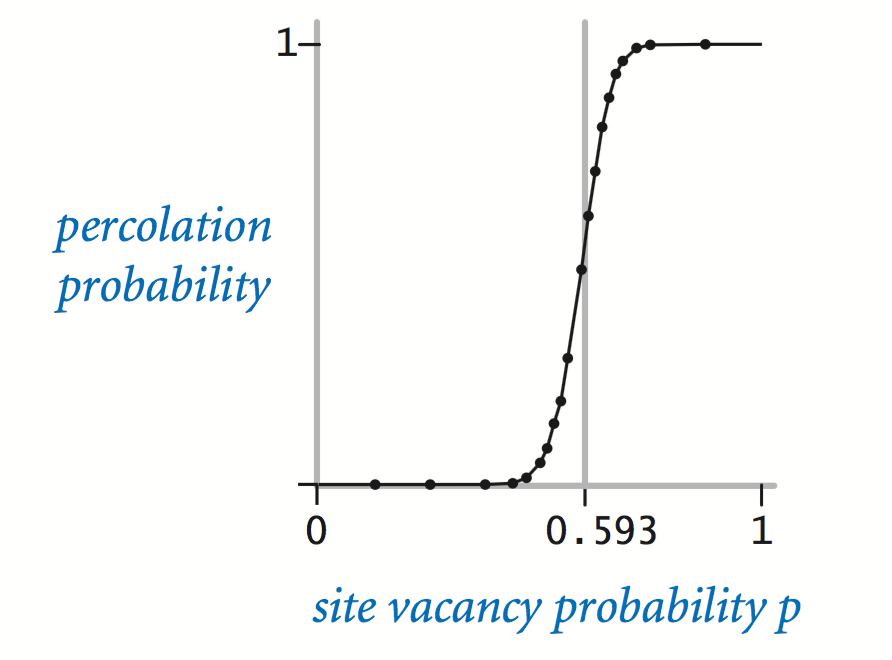

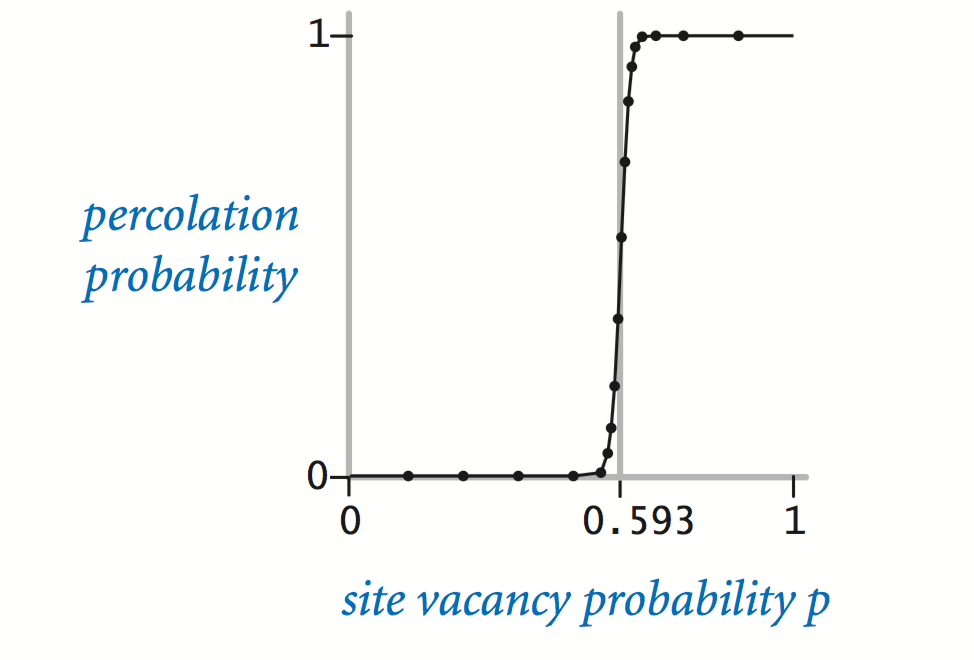

The problem. In a famous scientific problem, researchers are interested in the following question: if sites are independently set to be open with probability p (and therefore blocked with probability 1 − p), what is the probability that the system percolates? When p equals 0, the system does not percolate; when p equals 1, the system percolates. The plots below show the site vacancy probability p versus the percolation probability for 20by20 random grids (left) and 100by100 random grids (right).
When n is sufficiently large, there is a threshold value p* such that when p < p* a random nbyn grid almost never percolates, and when p > p*, a random nbyn grid almost always percolates. No mathematical solution for determining the percolation threshold p* has yet been derived. Your task is to write a computer program to estimate p*.
Percolation data type.
To model a percolation system, create a data type Percolation
with the following API:
public class Percolation { // creates nbyn grid, with all sites initially blocked public Percolation(int n) // opens the site (row, col) if it is not open already public void open(int row, int col) // is the site (row, col) open? public boolean isOpen(int row, int col) // is the site (row, col) full? public boolean isFull(int row, int col) // returns the number of open sites public int numberOfOpenSites() // does the system percolate? public boolean percolates() // unit testing (required) public static void main(String[] args) }
Corner cases. By convention, the row and column indices are integers between 0 and n − 1, where (0, 0) is the upperleft site.
java.lang.IllegalArgumentException
if any argument to open()
, isOpen()
, or isFull()
is outside its prescribed range.
java.lang.IllegalArgumentException
in the constructor if n ≤ 0.
Unit testing.
Your main()
method must call each public constructor and method directly and
help verify that they work as prescribed (e.g., by printing results to standard output).
Performance requirements.
The constructor must take time proportional to n^{2}; all methods must
take constant time plus a constant number of calls to the union–find methods
union()
, find()
, connected()
, and count()
.
Monte Carlo simulation. To estimate the percolation threshold, consider the following computational experiment:
For example, if sites are opened in a 20by20 grid according to the snapshots below, then our estimate of the percolation threshold is 204/400 = 0.51 because the system percolates when the 204th site is opened.




By repeating this computation experiment T times and averaging the results, we obtain a more accurate estimate of the percolation threshold. Let x_{t} be the fraction of open sites in computational experiment t. The sample mean \(\overline x\) provides an estimate of the percolation threshold; the sample standard deviation s measures the sharpness of the threshold.
\[ \overline x = \frac{x_1 \, + \, x_2 \, + \, \cdots \, + \, x_{T}}{T}, \quad s^2 = \frac{(x_1  \overline x )^2 \, + \, (x_2  \overline x )^2 \,+\, \cdots \,+\, (x_{T}  \overline x )^2}{T1} \]Assuming T is sufficiently large (say, at least 30), the following provides a 95% confidence interval for the percolation threshold:
\[ \left [ \overline x  \frac {1.96 s}{\sqrt{T}}, \;\; \overline x + \frac {1.96 s}{\sqrt{T}} \right] \]
To perform a series of computational experiments, create a data type PercolationStats
with the following API:
public class PercolationStats { // perform independent trials on an nbyn grid public PercolationStats(int n, int trials) // sample mean of percolation threshold public double mean() // sample standard deviation of percolation threshold public double stddev() // low endpoint of 95% confidence interval public double confidenceLow() // high endpoint of 95% confidence interval public double confidenceHigh() // test client (see below) public static void main(String[] args) }
The constructor takes two arguments n and T, and perform T independent computational experiments (discussed above) on an nbyn grid. Using this experimental data, it calculates the mean, standard deviation, and the 95% confidence interval for the percolation threshold.
Standard libraries.
Use
StdRandom
to generate random numbers; use
StdStats
to compute the sample mean and standard deviation;
use Stopwatch
to measure the running time.
Corner cases.
Throw a java.lang.IllegalArgumentException
in the constructor
if either n ≤ 0 or T ≤ 0.
Test client. The test client takes two commandline arguments n and T and prints the relevant statistics for T computational experiments on an nbyn grid.
% javaalgs4 PercolationStats 200 100 mean() = 0.592993 stddev() = 0.008770 confidenceLow() = 0.591275 confidenceHigh() = 0.594712 elapsed time = 0.373 % javaalgs4 PercolationStats 200 100 mean() = 0.592877 stddev() = 0.009991 confidenceLow() = 0.590919 confidenceHigh() = 0.594835 elapsed time = 0.364 % javaalgs4 PercolationStats 2 100000 mean() = 0.666948 stddev() = 0.117752 confidenceLow() = 0.666218 confidenceHigh() = 0.667677 elapsed time = 0.087
Analysis of running time.
Use the doubling hypothesis to estimate the running time of PercolationStats
as a function
of both n and T.
Percolation
data type using the quickfind algorithm in
QuickFindUF
.
Measure the running time for various values of n and T.
How does doubling n affect the total running time?
How does doubling T affect the total running time?
Give a formula (using tilde notation) of the total running
time on your computer (in seconds) as a single function of both
n and T.
Percolation
data type using the weighted quickunion algorithm in
WeightedQuickUnionUF
.
Answer the same questions in the previous bullet.
Helper files. The file percolation.zip contains a test client and sample input files.
Deliverables.
Submit only Percolation.java
(using the weighted quickunion algorithm
from
WeightedQuickUnionUF
)
and PercolationStats.java
.
We will supply algs4.jar
.
Do not call any library functions except those in
StdIn
,
StdOut
,
StdRandom
,
StdStats
,
Stopwatch
,
WeightedQuickUnionUF
,
and
java.lang
.
Finally, submit a readme.txt file and
answer all questions.
This assignment was developed by Bob Sedgewick and Kevin Wayne.
