Examples for Assignment 1

Random Noise

void Image::AddNoise(double factor);
Adds noise to an image. The amount of noise is given by the factor in the range [0.0..1.0]. 0.0 adds no noise. 1.0 adds a lot of noise.
0.0
0.25
0.5
0.75
1.0

Brightness

void Image::Brighten(double
factor);
Changes the brightness of an image by interpolating between the original image and a black image (factor = -1.0) or a white image (factor = 1.0). Interpolation with the black image darkens the image, and interpolation with the white image brightens it.  See Graphica Obscura.
0.0
0.5
1.0
1.5
2.0

Contrast

void Image::ChangeContrast(double factor);
Changes the contrast of an image by interpolating between a constant gray image (factor = 0) with the average luminance and the original image (factor = 1). Interpolation reduces contrast, extrapolation boosts contrast, and negative factors generate inverted images. See Graphica Obscura.
-0.5
0.0
0.5
1.0
1.7

Saturation

void Image::ChangeSaturation(double factor);
Changes the saturation of an image by interpolating between a gray level version of the image (factor = 0) and the original image (factor = 1). Interpolation decreases saturation, extrapolation increases it, and negative factors preserve luminance but invert the hue of the input image. See Graphica Obscura.
-1.0
0.0
0.5
1.0
2.5

Crop

Image* Image::Crop(int x, int y, int w, int h);
Extract a sub image from the image, at position (x,y), width w, and height h.



Crop(42,16,85,93)

Extract Channel

void Image::ExtractChannel(int channel);
Extract a channel of an image.  Leaves the specified channel intact.  Sets all other ones to zero.

Original

Red

Green

Blue

Quantization

void Image::Quantize(int nbits);
Converts an image to nbits bits per channel using uniform quantization.

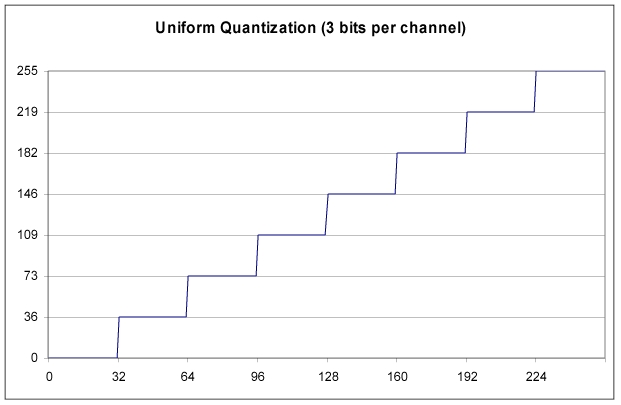

The number of levels per channel is L = 2nbits. The size of each input interval is a = 256 / L. The size of each output output interval is b = 255.0 / (L - 1). Each component c is mapped to floor(c / a) * b. The graph below shows the resulting staircase function for the case nbits = 3

All the pixels within the same input interval are mapped to the same output level. Notice the contours that appear when nbits is low.
1
2
3
4
5
Other mappings exist, and will be accepted. Just make sure you explain the mapping you use.

Random Dither

void Image::RandomDither(int nbits);
Converts an image to nbits bits per channel using random dithering. It is similar to uniform quantization, but random noise is added to each component during quantization. Using a and b as defined for quantization, each component c is mapped to floor(c / a + noise()) * b. The function noise() returns a random floating point number in the interval [-0.5,0.5].
1
2
3
4
5

Ordered Dither

void Image::OrderedDither(int nbits);
Converts an image to nbits bits per channel using ordered dithering. It is similar to uniform quantization, but pseudo-random noise is added to each component before quantization. The amount of noise added is determined by a Bayer's pattern matrix. The following examples used the matrix
Bayer4 = 15 7 13 5
3 11 1 9
12 4 14 6
0 8 2 10
For each pixel at (x,y), we compute i = x % 4, j = y % 4. Then, using a and b as defined for quantization, a component c is mapped to floor(c / a - 0.5 + Bayer4[i][j] / 15.0) * b.
1
2
3
4
5

Floyd-Steinberg Dither

void Image::FloydSteinbergDither(int nbits);
Converts an image to nbits per channel using Floyd-Steinberg dither with error diffusion. Each pixel (x,y) is quantized, and the quantization error is computed. Then the error is diffused to the neighboring pixels (x + 1, y), (x - 1, y + 1), (x, y + 1), and (x + 1, y + 1) , with weights 7/16, 3/16, 5/16, and 1/16, respectively.
1
2
3
4
5

Blur

void Image::Blur(double sigma);
Blurs an image by convolving it with a Gaussian filter. In the examples below, the Gaussian function used was


and the integer below each image indicates the radius of the filter width, which should be 3*sigma in your examples.

3
7
11
15
19

Edge detect

void Image::EdgeDetect();
Detect edges in an image by convolving it with an edge detection kernel. In the example below, the kernel used was
-1
-1
-1
-1
8
-1
-1
-1
-1

Scale

Image *Image::Scale(double sx, double sy);
Scales an image in x by sx, and y by sy. The result depends on the current sampling method (point, bilinear, or Gaussian). In the example below, the size of the Gaussian filter is 3x3.
Point
Bilinear
Gaussian
If minifying, instead of magnifying, first blur the image, then point sample. The size of the blur filter is the inverse of the minification factor, rounded up to the closest odd number greater than or equal to 3.

Rotate

Image *Image::Rotate(double angle);
Rotates an image by the given angle. The result depends on the current sampling method (point, bilinear, or Gaussian). In the example below, the size of the Gaussian filter is 3x3.
Point
Bilinear
Gaussian

Composite

void Image::Composite(Image *bottom, Image *top, Image *result);
Composites the bottom and top images into the result image.

Original Images


Brazilian soccer team ("seleção")
Me

Auxiliary Images

image -constantColor 373 512 0 0 0 > black.bmp
image -constantColor 373 512 0 0 255 > blue.bmp

image -scale .27272727 .27272727 < wagner.bmp > front_mask1.bmp
image -extractBlueMask 94 26 60 106 < front_mask1.bmp > front_mask2.bmp
image -subimage 94 26 60 106 < front_mask2.bmp > front_mask3.bmp

image -paste front_mask3.bmp 200 138 < blue.bmp > front_mask4.bmp
image -blur 11 < front_mask4.bmp > front_mask.bmp

image -subimage 94 26 60 106 < front_mask1.bmp > front1.bmp
image -paste front1.bmp 200 133 < black.bmp > front.bmp


Final Image

image -composite black.bmp front.bmp front_mask.bmp < selecao.bmp > final.bmp

Fun

void Image::Fun();
Warps an image using a creative filter of your choice. In the following example, each pixel is mapped to its corresponding scaled polar coordinates. The artifacts of point sampling are very noticeable in this example.
Original
Point
Bilinear
Gaussian

Morph

Image* ImageMorph (Image* I0, Image* I1, int numLines, Line* L0, Line* L1, double t);
Morph two images using [Beier92].  I0 and I1 are before and after images.  L0 and L1 are corresponding line segments.  t is the morph time, between 0 and 1.


before

after

 Quicktime (1.8mb)
 Windows AVI (4.2mb)
