Implement the classic Dijkstra's shortest path algorithm and optimize it for maps. Such algorithms are widely used in geographic information systems (GIS) including MapQuest and GPS-based car navigation systems.

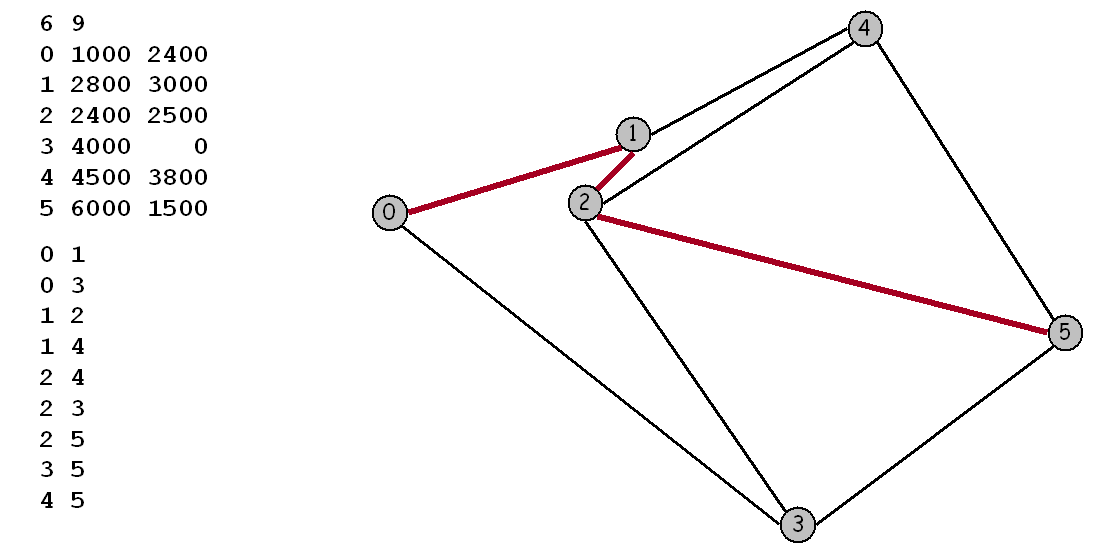

Maps. For this assignment we will be working with maps, or graphs whose vertices are points in the plane and are connected by edges whose weights are Euclidean distances. Think of the vertices as cities and the edges as roads connected to them. To represent a map in a file, we list the number of vertices and edges, then list the vertices (index followed by its x and y coordinates) and then list the edges (pairs of vertices). For example, input6.txt represents the map below:
After reading in a graph like this one, your program will read in one or more pairs of numbers representing the source and destination node, and will compute the corresponding shortest path. For instance, the red edges in the figure represent the shortest path from vertex 0 to vertex 5.
Dijkstra's algorithm. Dijkstra's algorithm is a classic solution to the shortest path problem. It is described in Sedgewick, Chapter 21. The basic idea is to maintain, for every vertex in the graph, the length of the shortest known path from the source to that vertex. These lengths are maintained in a priority queue. Initially, we put all the vertices on the queue with an artificially high priority and then assign priority 0.0 to the source. The algorithm proceeds by taking the lowest-priority vertex off the PQ, then checking all the vertices that can be reached from that vertex by one edge to see whether that edge gives a shorter path to the vertex from the source than the shortest previously known path. If so, it lowers the priority to reflect this new information.
Here is a step-by-step description that shows how Dijkstra's
algorithm finds the shortest path 0-1-2-5 from 0 to 5 in the example above.
This method computes the length of the shortest path. To keep track of the
path, we also maintain for each vertex its predecessor on the shortest
path from the source to that vertex.
The files EuclideanGraph.java, Point.java,
IndexPQ.java, IntIterator.java, and Dijkstra.java
provide a bare bones implementation of Dijkstra's algorithm for maps,
and you should use this as a starting point. The client program ShortestPath.java solves a single shortest
path problem and plots the results using turtle graphics. The client program Paths.java
solves many shortest path problems and prints the shortest paths
to standard output.
The client program Distances.java solves many shortest
path problems and prints only the distances to standard output.
process 0 (0.0)
lower 3 to 3841.9
lower 1 to 1897.4
process 1 (1897.4)
lower 4 to 3776.2
lower 2 to 2537.7
process 2 (2537.7)
lower 5 to 6274.0
process 4 (3776.2)
process 3 (3841.9)
process 5 (6274.0)
Your goal. Optimize Dijkstra's algorithm so that it can process thousands of shortest path queries for a given map. Once you read in (and optionally preprocess) the map, your program should solve shortest path problems in sublinear time, that is, in time significantly less than the size of the graph. One method would be to precompute the shortest path for all pairs of vertices; however you cannot afford the quadratic space required to store all of this information. Your goal is to reduce the amount of work involved per shortest path computation, without using excessive space. We suggest a number of potential ideas below which you may choose to implement. Or you can develop and implement your own ideas.
Idea 1. The naive implementation of Dijkstra's algorithm examines all V vertices in the graph. An obvious strategy to reduce the number of vertices examined is to stop the search as soon as you discover the shortest path to the destination. With this approach, you can make the running time per shortest path query proportional to E' log V' where E' and V' are the number of edges and vertices examined by Dijkstra's algorithm. However, this requires some care because just re-initializing all of the distances to ∞ would take time proportional to V. Since you are doing repeated queries, you can speed things up dramatically by only re-initializing those values that changed in the previous query.
Idea 2. You can cut down on the search time further by exploiting the Euclidean geometry of the problem, as described in Sedgewick 21.5. For general graphs, Dijkstra's algorithm relaxes edge v-w by updating dist[w] (the distance along the shortest known path from the source to vertex w, and denoted wt[w] in the book and in class) to the sum of dist[v] plus the distance from v to w. For maps, we instead update dist[w] to be the sum of dist[v] plus the distance from v to w plus the Euclidean distance from w to d minus the Euclidean distance from v to d. This is an instance of the A* algorithm, in this case, using the Euclidean heuristic. This heuristic affects performance (makes it much faster), but not correctness (in other words, the algorithm still computes the correct distance to destination d). See Sedgewick 21.5 for more details.
An equivalent and perhaps more intuitive way of implementing this heuristic is to maintain the values dist[v] exactly as before (i.e., without the modification described in the last paragraph), but at all times to assign each vertex v a priority in the priority queue that is equal to dist[v] plus the distance from v to d.
Idea 3. Use a faster priority queue. There is some room for optimization in the supplied priority queue. You could also consider using a multiway heap as in Sedgewick Program 20.10.
Testing. The file usa.txt contains 87,575 intersections and 121,961 roads in the continental United States. The graph is very sparse - the average degree is 2.8. Your main goal should be to answer shortest path queries quickly for pairs of vertices on this network. Your algorithm will likely perform differently depending on whether the two vertices are nearby or far apart. We provide input files that test both cases. You may assume that all of the x and y coordinates are integers between 0 and 10,000.
Deliverables. Improve the bare bones implementation by using some of the ideas described above together with your ingenuity. You may modify Dijkstra.java, EuclideanGraph.java, Point.java, and IndexPQ.java. However, your code must work with any of our three client programs. Submit all of the files needed to compile your program, except Turtle.java, StdIn.java, and In.java. In your program report, you should describe and justify your approach. Compare your approach to the bare bones implementation. In particular give the average number of vertices examined and average time per query.
Comparison of methods. We will compare all submitted programs by racing them off against each other. The fastest programs will be announced in class (or via email, in case we run out of time before the semester ends). Note that, although you are required to write a program that runs in sublinear time, your grade will not depend on how well you do relative to your classmates in this friendly competition.
