COS 226 Programming Assignment

Map Routing

Implement the classic Dijkstra's shortest path algorithm and optimize it for maps. Such algorithms are widely used in geographic information systems (GIS) including MapQuest and GPS-based car navigation systems.

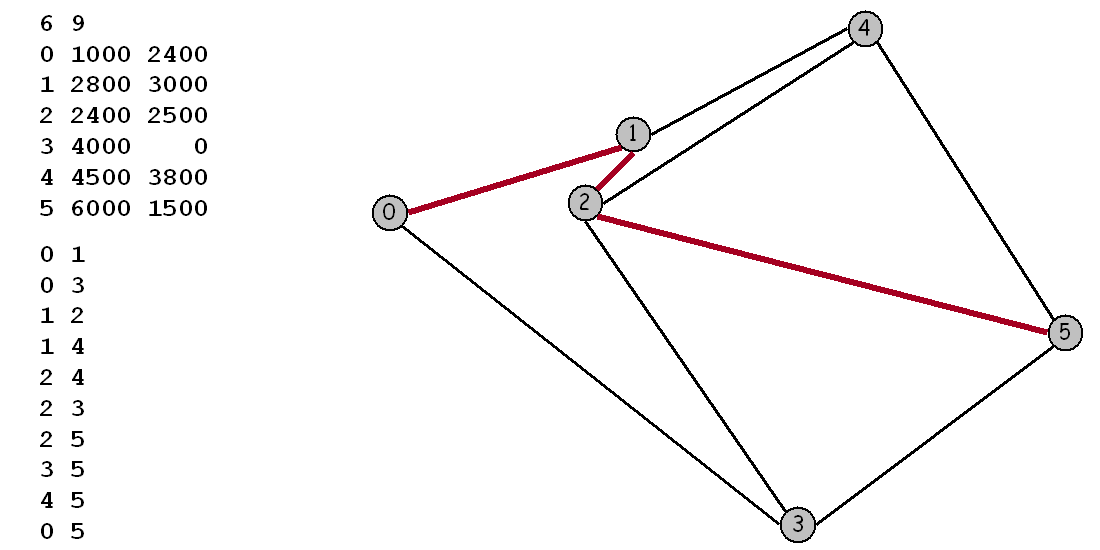

Maps.   For this assignment we will be working with maps, or graphs whose vertices are points in the plane and are connected by edges whose weights are Euclidean distances. Think of the vertices as cities and the edges as roads connected to them. To represent a map in a file, we list the number of vertices and edges, then list the vertices (index followed by its x and y coordinates), then list the edges (pairs of vertices), and finally the source and sink vertices. For example, input6.txt represents the map below:

Dijkstra's algorithm.   Dijkstra's algorithm is a classic solution to the shortest path problem. It is described in Sedgewick, Chapter 21. The basic idea is not difficult to understand. We maintain, for every vertex in the graph, the length of the shortest known path from the source to that vertex, and we maintain these lengths in a priority queue. Initially, we put all the vertices on the queue with an artificially high priority and then assign priority 0.0 to the source. The algorithm proceeds by taking the lowest-priority vertex off the PQ, then checking all the vertices that can be reached from that vertex by one edge to see whether that edge gives a shorter path to the vertex from the source than the shortest previously-known path. If so, it lowers the priority to reflect this new information.

Here is a step-by-step description that shows how Dijkstra's algorithm finds the shortest path 0-1-2-5 from 0 to 5 in the example above.

process 0 (0.0)
    lower 3 to 3841.9
    lower 1 to 1897.4
process 1 (1897.4)
    lower 4 to 3776.2
    lower 2 to 2537.7
process 2 (2537.7)
    lower 5 to 6274.0
process 4 (3776.2)
process 3 (3841.9)
process 5 (6274.0)
This method computes the length of the shortest path. To keep track of the path, we also maintain for each vertex, its predecessor on the shortest path from the source to that vertex. The files,,,, and provide a bare bones implementation of Dijkstra's algorithm for maps, and you should use this as a starting point. The client program solves a single shortest path problem and plots the results using turtle graphics. The client program solves many shortest path problems and prints the shortest paths to standard output. The client program solves many shortest path problems and prints only the distances to standard output.

Your goal.   Optimize Dijkstra's algorithm so that it can process thousands of shortest path queries for a given map. Once you read in (and optionally preprocess) the map, your program should solve shortest path problems in sublinear time. One method would be to precompute the shortest path for all pairs of vertices; however you cannot afford the quadratic space required to store all of this information. Your goal is to reduce the amount of work involved per shortest path computation, without using excessive space. We suggest a number of potential ideas below which you may choose to implement. Or you can develop and implement your own ideas.

Idea 1.   The naive implementation of Dijkstra's algorithm examines all V vertices in the graph. An obvious strategy to reduce the number of vertices examined is to stop the search as soon as you discover the shortest path to the destination. With this approach, you can make the running time per shortest path query proportional to E' log V' where E' and V' are the number of edges and vertices examined by Dijkstra's algorithm. However, this requires some care because just re-initializing all of the distances to ∞ would take time proportional to V. Since you are doing repeated queries, you can speed things up dramatically by only re-initializing those values that changed in the previous query.

Idea 2.   You can cut down on the search time further by exploiting the Euclidean geometry of the problem, as described in Sedgewick 21.5. For general graphs, Dijkstra's relaxes edge v-w by updating wt[w] to the sum of wt[v] plus the distance from v to w. For maps, we instead update wt[w] to be the sum of wt[v] plus the distance from v to w plus the Euclidean distance from w to d minus the Euclidean distance from v to d. This is known as the A* algorithm. This heuristics affects performance, but not correctness. (See Sedgewick 21.5 for a proof of correctness.)

Idea 3.   Use a faster priority queue. There is some room for optimization in the supplied priority queue. You could also consider using a multiway heap as in Sedgewick Program 20.10.

Testing.   The file usa.txt contains 87,575 intersections and 121,961 roads in the continental United States. The graph is very sparse - the average degree is 2.8. Your main goal should be to answer shortest path queries quickly for pairs of vertices on this network. Your algorithm will likely perform differently depending on whether the two vertices are nearby or far apart. We provide input files that test both cases. You may assume that all of the x and y coordinates are integers between 0 and 10,000.

Deliverables.   Improve the bare bones implementation by using some of the ideas described above together with your ingenuity. You may modify,,, and However, your code should work with any of our three client programs. Submit all of the files needed to compile your program, except,, and Also, submit a readme.txt file. Describe and justify your approach. Compare your approach to the bare bones implementation. In particular give the average number of vertices examined.

Contest.   An utterly useless prize will be awarded to the student who submits the best implementation.

This assignment was developed by Bob Sedgewick and Kevin Wayne.
