SEQUENTIAL CIRCUITS

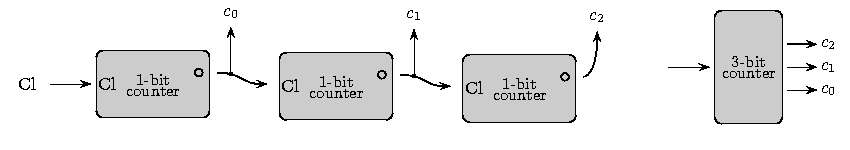

 1. Consider a 3-bit counter circuit that consists of 3 1-bit counter
    circuits wired together as below.



    Suppose that the input is given by the following timing diagram.



    Give the timing diagram of c0, c1, and c2.
