Assignment 3: OpenGL

Overview

Examples

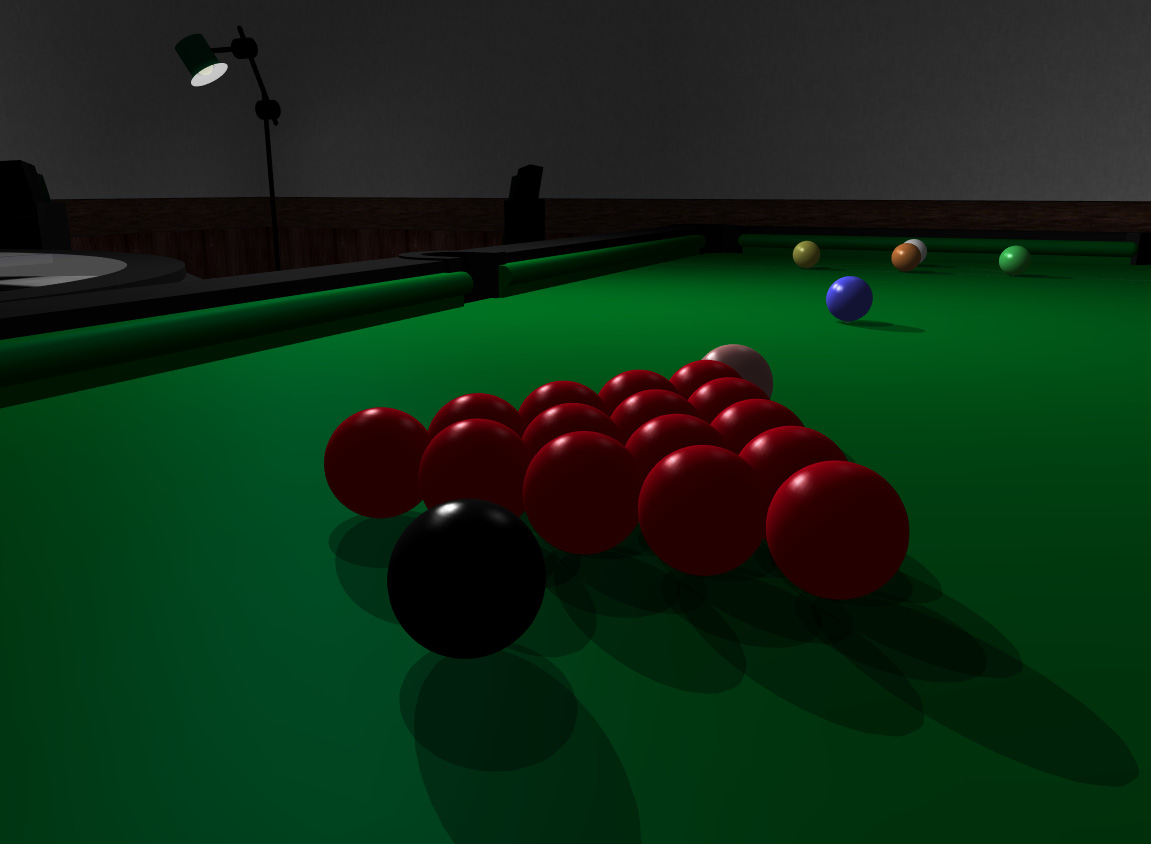

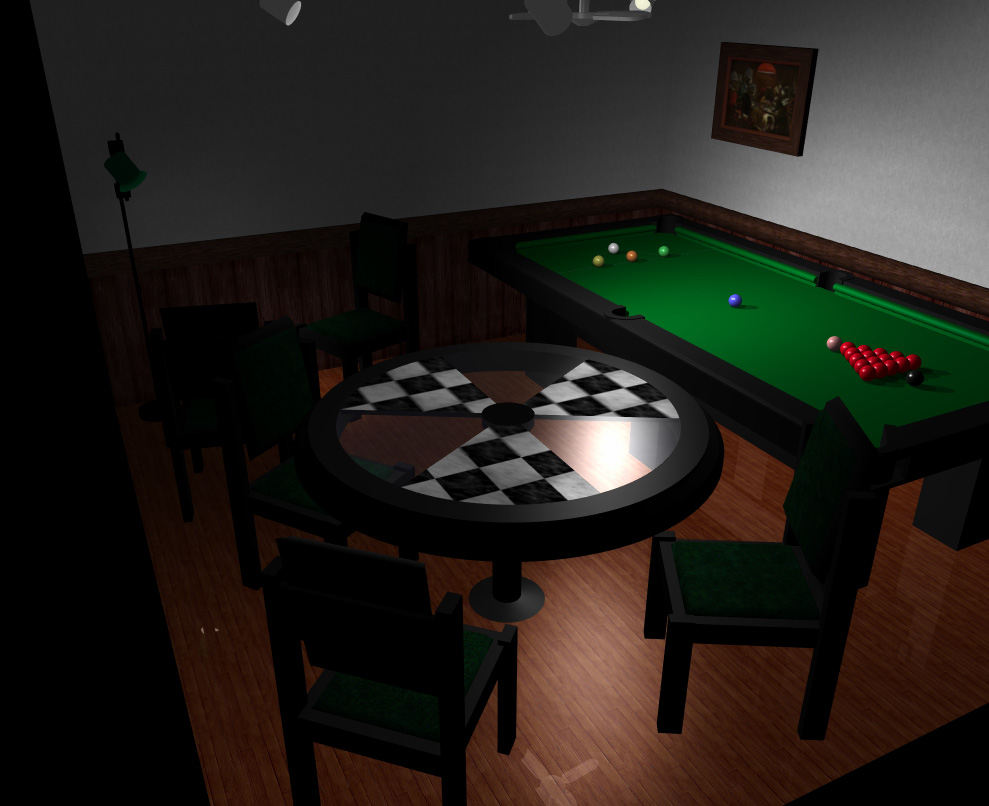

Transparency on table top  Reflection in the floor  Multiple light sources	Specular lighting on balls  Shadows on the table surface  Lamp is dynamic light source	Texture mapping on board  Full scene antialiasing  Replicated objects

What you Have to Do

• (1) Implement the Camera::draw(void) for a perspective camera.
• (1) Implement the Shape::draw(int cplx) methods for all classes derived from Shape (triangle, sphere, cone, cylinder, box, line, group).
• (1) Implement the Light::draw(int lightNum) for all classes derived from Light (point, directional, spot).
• (1) Implement the Material::draw(void) method for materials.
• (1) Implement the Texture::draw(void) method for textures.
• (1) Implement the Scene::draw(int cplx) method to draw the scene from the Draw function.

      It should update the appropriate camera, lights, etc. for the current viewpoint and then draw the shapes.
• (1) Construct a city scene with several buildings.
• (1) Include several everyday objects (e.g., cars, street lights, plants, etc.) in your scene.
• (1) Include at least one object (e.g., a car) that is instanced several times with different transformations.
• (1) Include at least one transparent surface (e.g., a glass building).
• (1) Include at least three texture mapped surfaces, each with a different texture (e.g., street signs, brick building facades, etc.).
• (1) Include at least three point or spot light sources (e.g., street lights, car headlights).
• (1) Include at least one animated object (e.g., a car moving along a road, a clock on a bell tower, etc.)
• (1) Implement interactive camera controls - the camera should move around the exterior of the scene, looking into the scene from outside, using a "crystal ball' style interface for the exterior viewing scheme. When the user holds the left button, moving the mouse left and right should rotate the world left and right about the world's origin, and moving up and down should rotate the world up and down about its origin.  If the user hold the middle button, then moving the mouse up and down should zoom toward and away from the origin.  When the user holds both buttons , moving the mouse should translate the world in a plane parallel to the view plane. This should alter the origin for the previously mentioned rotations, so you might add a control to reset the origin should the user end up in a strange state.
• (1) Implement a "walkthrough" mouse user interface to facilitate moving about the interior of the scene. For instance, holding down the left (right) mouse button could move forward (backward) and turn in the direction of the mouse cursor (left if the mouse is on the left side of the screen, etc.) by an amount proportional to the mouse cursors distance to the center of the window.  In this case, you should implement a method for toggling between interior walkthrough and exterior crystal ball interactive navigation schemes (e.g., a menu item or keyboard command).
• (1) Include a four-component texture (e.g., for a tree or person), where the fourth component, alpha, represents the opacity of the surface.
• (1) Include a "billboard" - a textured polygon that continually rotates to face the viewer (e.g., for a lamp post or a tree).
• (1) Include an object that responds to user mouse clicks (such as a light switch which turns on/off a light when clicked on by the user).
• (1) Include a mirror surface in your scene. Hint: Reflect the world about the mirror and render it again through a stencil buffer.
• (1) Include a curved surface drawn with NURBS (e.g., a sprial building like the Guggenheim Museum)
• (1) Include an object drawn with environment mapping.
• (2) Include an articulated object (e.g., a crane) with a hierarchy of parts at least 3 deep (e.g., upper arm, lower arm, hand) that move under interactive control by keyboard and/or mouse commands. Hint: see the robotic arm example in the OpenGL Programming Guide.
• (2) Implement view frustum culling to improve rendering speed. Check bounding volumes stored in the scene hierarchy to see whether they lie at least partially within the view frustum before drawing their contents.  You get a third point if you combine this feature with an adaptive method for increasing the attenuation due to fog while decreasing the far plane distance whenever the frame rate gets too low (this is a trick common in video games).
• (2) Implement adaptive levels of detail to improve rendering speed. Continuously vary the complexity of tesselated surfaces depending upon the distance of the viewer from the object. Hint: use this with GLU cones, spheres, cylinders which take arguments for their complexity.
• (2) Implement an animated texture on the surface of an object in the scene (e.g. a video board as in Times Square).
• (2) Implement drawing of shadows on at least one surface (such as the ground). Hint: See the OpenGL Programming Guide for the transformation which renders objects onto a plane.
• (3) Implement back-to-front ordering of primitives suitable for drawing more than one transparent object in your scene.
• (3) Implement particle effects (e.g. steam from a sewer grate). Hint: Maybe try rendering randomly moving, small triangles with a texture map of a dot on them... Make sure the effect is convincing.
• (?) Impress us with something we hadn't considered...

• (as listed above) implementing optional features,
• (1) submitting 3D models you constructed,
• (1) submitting images for the art contest,
• (1) submitting a .mpeg or .avi movie with a sequence of images captured from a continuous camera path, and
• (2) winning the art contest.

Getting Started

• rayView.[cpp/h] The code responsible for running the interactive user interface.
• shape.h The abstract base class that all shapes must implement
• group.[cpp/h] Code for the Shape subclass describing a scene-graph
• rayFileInstance.[cpp/h] Code for the Shape subclass describing the scene graph specified in a .ray file
• triangle.[cpp/h] Code for the Shape subclass describing a triangle
• sphere.[cpp/h] Code for the Shape subclass describing a sphere
• cone.[cpp/h] Code for the Shape subclass describing a cone
• cylinder.[cpp/h] Code for the Shape subclass describing a cylinder
• box.[cpp/h] Code for the Shape subclass describing a box
• line.[cpp/h] Code for the Shape subclass describing a line segment
• light.[cpp/h] The abstract base class that all l ights must implement
• pointLight.[cpp/h] Code for the Light subclass describing a point light
• directionalLight.[cpp/h] Code for the Light subclass describing a directional light
• spotLight.[cpp/h] Code for the Light subclass describing a spot light
• main.cpp This parses apart the command line arguments and invokes the raytracer
• scene.[cpp/h] Code for the classes that store environmental information, textures, materials, rayFiles etc.
• geometry.[cpp/h] Most of the code for the geometric manipulation you will need (matrix multiplication, vector addition etc.)
• boundingBox.[cpp/h] Code for defining bounding boxes.
• bmp.[cpp/h] Code responsible for reading and writing BMP files
• implemented.[cpp/h] Code defining a global flag that specifies if unimplemented methods should announce themselves when they are invoked.
• RayFiles/: Directory containing a variety of .ray files.
• viewer.dsp: Project file suitable for Visual C++ on Windows 2000 platform.
• Makefile: A Makefile suitable for UNIX platforms.

If you are developing on a UNIX machine, type make.

In either case an executable called viewer (or viewer.exe) will be created.

How the Program Works

The program takes in to mandatory arguments, the input (.ray) file name. It is invoked from the command line with:

    % viewer -src in.ray

Additionally, you can specify height, width, and tesselation complexity (100-1000) as follows:

    % viewer -src in.ray -width w -height h -cplx c

What Has Not Been (Completely) Implemented

The sublcasess of Shape must implement the Shape::draw(int cplx) method. The list for which this is not implemented is:

• Triangle::draw(int cplx)
• Sphere::draw(int cplx)
• Cone::draw(int cplx)
• Cylinder::draw(int cplx)
• Box::draw(int cplx)
• Line::draw(int cplx)
• Group::draw(int cplx)

• PointLight::draw(int lightNum)
• DirectionalLight::draw(int lightNum)
• SpotLight::draw(int lightNum)

• Camera::draw(void)
• Material::draw(void)
• Texture::draw(void)
• Scene::draw(int cplx)

• SpecialKeys(int key, int x, int y)
• DepressedMotion(int x, int y)
• Mouse(int button, int state, int x, int y)
• Draw(void)
• Reshape(int width, int height)

What to Submit

• the complete source code with a Makefile,
• any *.ray files you created (optional),
• the .mpeg movie for the movie feature (optional),
• the images for the art contest (optional), and
• a writeup.

Make sure the source code compiles in the MECA workstations. If it doesn't, you will have to attend to a grading session with a TA, and your grade will suffer.

Always remember the late policy and the collaboration policy.

Links

OpenGL Information

OpenGL Information from SGI

OpenGL Specification and Manual Pages

GLUT Information

GLUT Specification

GLUT Sample Programs

Hints

• Note that OpenGL uses degrees, not radians.
• Note that OpenGL's shininess and falloff coefficients range [0-128], not [0-1].
• Use display lists to radically immprove rendering speed.
• Use glut menus to allow the user to select controls for your extra features (e.g. number of jittered samples for anti-aliasing).
• Stay tuned for more hints.

Notes

• For those of you who are interested, there is a glut command: int glutGetModifiers(void) That returns one of GLUT_ACTIVE_SHIFT, GLUT_ACTIVE_CTRL, or GLUT_ACTIVE_ALT to specify if the appropriate button is depressed when the callback is being handled. (Using this in conjuction with mouse buttons allows you to link different events with a single mouse button.)
• Notes from the first precept are now available in power point.
• If you use the gluBuild2DMipMaps command you may run into some trouble if the dimensions of your image are not powers of two. (It says it rescales automatically, but I ran into some trouble, so just to be on the safe side you may want to rescale it yourself.)
• To clear up a question a number of people have asked: In order to draw your scene your Draw function will have to both draw a .ray file and then some other hard coded stuff. This does mean that your scene will work with only one specific .ray file, but that's ok.
• You should be careful with your texture generation. It seems that texture generating/binding does not work if you are within the scope of a glBegin command.
• The issue of binary writing on WINNT is still in existance. Apparently certain variables that were assumed to be global are not. Please be aware of this and change all reads and writes of .bmp files to be binary.

Announcements

• A number of new .ray files have been added to the RayFiles directory. The list includes several cars, a bicycle, two tree-like objects, a hydrant, and a streetlight. Feel free to include these in your scene as you see fit. (If you find 3D objects on the web that you would like to incorporate in your scene, let us know and we may be able to convert them to the .ray format for you.)
• A bug has been discovered in the parser. There was an error in the way that included .ray files were read in. The bug was in the Scene::parseShape method in scene.cpp. The code has been updated to reflect the bug fix. For those of you who have already implemented code in scene.cpp and don't want to simply copy over your changes, the bug fix is essentially three very small changes: In scene.cpp in the Scene::parseShape method, when ray_file_instance is being read, (first strcmp), it gets read into a variable called shape. This is bad. You should declare a local variable:
  RayFileInstance* rayFileInstance;
  and then change the lines:
  shape=new RayFileInstance(&(rayFiles[temp]));
  if(shape==NULL){
  ...
  current->addShape(shape);
  to the lines:
  rayFileInstance=new RayFileInstance(&(rayFiles[temp]));
  if(rayFileInstance==NULL){
  ...
  current->addShape(rayFileInstance);
