COS 126 Programming Assignment: Plucking a Guitar String

COS 126

Plucking a Guitar String

Programming Assignment

This assignment allows optional partnering. If you choose to do this, you must follow the pair programming guidelines. Anybody who gets <= 14 on the LFSR assignment needs to get permission from a lead preceptor for their partnership. Please note that writing code with a partner without following the pair programming instructions is a violation of the course collaboration policy. All writing of code, comments, the readme, and uploading to the dropbox must be done together from start to finish. If you come to office hours alone, you can get advice, but you may not change any code until both partners are together.

Write a program to simulate plucking a guitar string using the Karplus-Strong algorithm. This algorithm played a seminal role in the emergence of physically modeled sound synthesis (where a physical description of a musical instrument is used to synthesize sound electronically).

Digital audio. Before reading this assignment, review the material in the textbook on digital audio (pp. 147–151, 202–206).

Simulate the plucking of a guitar string. When a guitar string is plucked, the string vibrates and creates sound. The length of the string determines its fundamental frequency of vibration. We model a guitar string by sampling its displacement (a real number between –1/2 and +1/2) at N equally spaced points in time. The integer N equals the sampling rate (44,100 Hz) divided by the desired fundamental frequency, rounded up to the next integer.

Plucking the string. The excitation of the string can contain energy at any frequency. We simulate the excitation with white noise: set each of the N displacements to a random real number between –1/2 and +1/2.
The resulting vibrations. After the string is plucked, the string vibrates. The pluck causes a displacement that spreads wave-like over time. The Karplus-Strong algorithm simulates this vibration by maintaining a ring buffer of the N samples: the algorithm repeatedly deletes the first sample from the buffer and adds to the end of the buffer the average of the deleted sample and the first sample, scaled by an energy decay factor of 0.996. For example:

Why it works? The two primary components that make the Karplus-Strong algorithm work are the ring buffer feedback mechanism and the averaging operation.

The ring buffer feedback mechanism. The ring buffer models the medium (a string tied down at both ends) in which the energy travels back and forth. The length of the ring buffer determines the fundamental frequency of the resulting sound. Sonically, the feedback mechanism reinforces only the fundamental frequency and its harmonics (frequencies at integer multiples of the fundamental). The energy decay factor (.996 in this case) models the slight dissipation in energy as the wave makes a round trip through the string.
The averaging operation. The averaging operation serves as a gentle low-pass filter (which removes higher frequencies while allowing lower frequencies to pass, hence the name). Because it is in the path of the feedback, this has the effect of gradually attenuating the higher harmonics while keeping the lower ones, which corresponds closely with how a plucked guitar string sounds.

From a mathematical physics viewpoint, the Karplus-Strong algorithm approximately solves the 1D wave equation, which describes the transverse motion of the string as a function of time.

Ring buffer. Your first task is to create a data type to model the ring buffer. Write a class named RingBuffer that implements the following API:

public class RingBuffer
-----------------------------------------------------------------------------------------
        RingBuffer(int capacity)  // create an empty ring buffer, with given max capacity
    int size()                    // return number of items currently in the buffer
boolean isEmpty()                 // is the buffer empty (size equals zero)?
boolean isFull()                  // is the buffer full  (size equals capacity)?
   void enqueue(double x)         // add item x to the end
 double dequeue()                 // delete and return item from the front
 double peek()                    // return (but do not delete) item from the front
 static void main(String[] args)  // test client, tests all methods

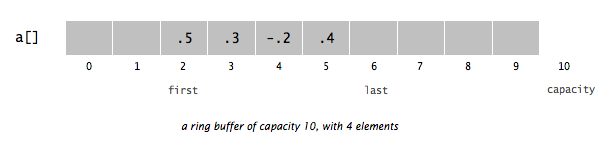

Since the ring buffer has a known maximum capacity, implement it using a double array of that length. For efficiency, use cyclic wrap-around: this ensures that each operation can be done in a constant amount of time. We recommend you maintain one integer instance variable first that stores the index of the least recently inserted item; maintain a second integer instance variable last that stores the index one beyond the most recently inserted item. To insert an item, put it at index last and increment last. To remove an item, take it from index first and increment first. When either index equals capacity, make it wrap-around by changing the index to 0.

Implement RingBuffer to throw a run-time exception if the client attempts to enqueue() into a full buffer or call dequeue() or peek() on an empty buffer.

Your test client may contain the tests we give you, ones you write yourself, or a combination thereof.

Guitar string. Next, create a data type to model a vibrating guitar string. Write a class named GuitarString that implements the following API:

public class GuitarString
------------------------------------------------------------------------------------------------------------------------
       GuitarString(double frequency)  // create a guitar string of the given frequency, using a sampling rate of 44,100
       GuitarString(double[] init)     // create a guitar string whose size and initial values are given by the array
  void pluck()                         // pluck the guitar string by replacing the buffer with white noise
  void tic()                           // advance the simulation one time step
double sample()                        // return the current sample
   int time()                          // return number of times tic was called so far
static void main(String[] args)        // test client, tests all methods

Constructors. There are two ways to create a GuitarString object.
- The first constructor creates a RingBuffer of the desired capacity N (sampling rate 44,100 divided by frequency, rounded up to the nearest integer), and initializes it to represent a guitar string at rest by enqueueing N zeros.
- The second constructor creates a RingBuffer of capacity equal to the size of the array, and initializes the contents of the buffer to the values in the array. In this assignment, this constructor's main purpose is for debugging and grading.
Pluck. Replace the N items in the ring buffer with N random values between -0.5 and +0.5.

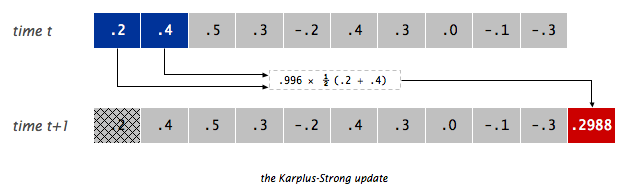

Tic. Apply the Karplus-Strong update: delete the sample at the front of the ring buffer and add to the end of the ring buffer the average of the first two samples, multiplied by the energy decay factor.
Sample. Return the value of the item at the front of the ring buffer.
Time. Return the total number of times tic() was called on this instance.

Again, your test client may contain the tests we give you, ones you write yourself, or a combination thereof.

Interactive guitar player. GuitarHeroLite.java is a sample GuitarString client that plays the guitar in real-time, using the keyboard to input notes. When the user types the lowercase letter 'a' or 'c', the program plucks the corresponding string. Since the combined result of several sound waves is the superposition of the individual sound waves, we play the sum of all string samples.


  public class GuitarHeroLite {
      public static void main(String[] args) {

          // create two guitar strings, for concert A and C
          double CONCERT_A = 440.0;
          double CONCERT_C = CONCERT_A * Math.pow(2, 3.0/12.0);
          GuitarString stringA = new GuitarString(CONCERT_A);
          GuitarString stringC = new GuitarString(CONCERT_C);

          while (true) {

              // check if the user has typed a key; if so, process it
              if (StdDraw.hasNextKeyTyped()) {
                  char key = StdDraw.nextKeyTyped();
                  if      (key == 'a') { stringA.pluck(); }
                  else if (key == 'c') { stringC.pluck(); }
              }

              // compute the superposition of samples
              double sample = stringA.sample() + stringC.sample();

              // play the sample on standard audio
              StdAudio.play(sample);

              // advance the simulation of each guitar string by one step
              stringA.tic();
              stringC.tic();
          }
       }
  }

Write a program GuitarHero that is similar to GuitarHeroLite, but supports a total of 37 notes on the chromatic scale from 110Hz to 880Hz. Use the following 37 keys to represent the keyboard, from lowest note to highest note:

String keyboard = "q2we4r5ty7u8i9op-[=zxdcfvgbnjmk,.;/' ";

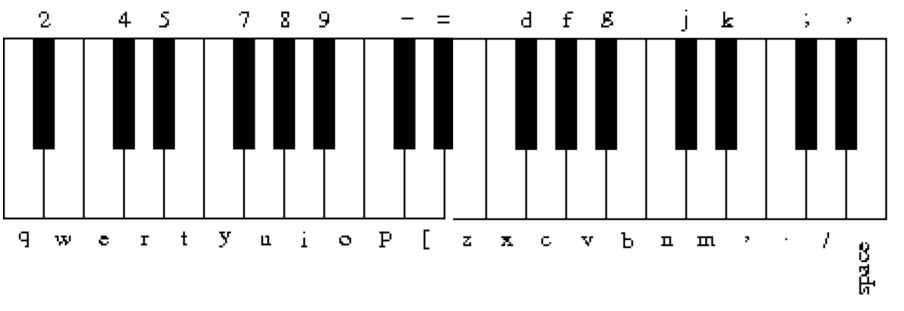

This keyboard arrangement imitates a piano keyboard: The "white keys" are on the qwerty and zxcv rows and the "black keys" on the 12345 and asdf rows of the keyboard.

The ith character of the string keyboard corresponds to a frequency of 440 × 2^{(i - 24) /
12}, so that the character 'q' is 110Hz, 'i' is 220Hz, 'v' is 440Hz, and ' ' is 880Hz. Don't even think of including 37 individual GuitarString variables or a 37-way if statement! Instead, create an array of 37 GuitarString objects and use keyboard.indexOf(key) to figure out which key was typed. Make sure your program does not crash if a key is pressed that does not correspond to one of your 37 notes.

Provided files. In the Possible Progress Steps on the checklist we provide optional templates for RingBuffer and GuitarString. Here is a copy of GuitarHeroLite.java, which you will extend to create GuitarHero. Finally, we provide a readme.txt as well as an abbreviated partner readme.txt file — in each pair, one partner should submit the .java files and the long readme, and the other should submit only a short readme.

Submission. Submit RingBuffer.java, GuitarString.java, GuitarHero.java, and a completed readme.txt. (Or, if your partner is submitting the java files, just submit the completed partner readme.txt.) The names, logins, and precept numbers of both partners MUST appear at the top of every submitted file.

If you and your partner both do the extra credit separately, you are both allowed to upload .java files to facilitate testing.

Extra credit. The extra credit is optional. If working with a partner, you can do it together or alone — but decide before you start it. Write a program AutoGuitar.java that will automatically play a song with GuitarStrings. The song should be between 10 seconds and 2 minutes in length. It will be run with

% java-introcs AutoGuitar

It will make calls to StdAudio.play() but it must not make any other calls to the Std* libraries. In particular, make sure there are no calls to StdDraw, and that it works with no user input. Your main() must terminate; it cannot loop infinitely. To get the timing to work, either use the Stopwatch class, or use the fact that 1/44100 of a second elapses between calls to StdAudio.play(). This will make it have consistent timing on different machines.

Use arrays, loops, conditionals, and randomization as you see fit. If you are interested, you can add chords, repetition, or different instruments (see below). You may submit additional classes, but don't modify your original classes (such as GuitarString).

If you find it helpful, you may submit a .txt file to be read with the In class, and you may hard-code the filename in your program.

Challenge for the bored. Here are suggestions on other effects and instruments to synthesize. Some come from the paper of Karplus and Strong.

Harp strings: Flipping the sign of the new value before enqueueing it in tic() will change the sound from guitar-like to harp-like. You may want to play with the decay factors to improve the realism, and adjust the buffer sizes by a factor of two since the natural resonance frequency is cut in half by the tic() change.
Drums: Flipping the sign of a new value with probability 0.5 before enqueueing it in tic() will produce a drum sound. A decay factor of 1.0 (no decay) will yield a better sound, and you will need to adjust the set of frequencies used.
Guitars play each note on one of 6 physical strings. To simulate this you can divide your GuitarString instances into 6 groups, and when a string is plucked, zero out all other strings in that group.
Pianos come with a damper pedal which can be used to make the strings stationary. You can implement this by, on iterations where a certain key (such as Shift) is held down, changing the decay factor.
While we have used equal temperament, the ear finds it more pleasing when musical intervals follow the small fractions in the just intonation system. For example, when a musician uses a brass instrument to play a perfect fifth harmonically, the ratio of frequencies is 3/2 = 1.5 rather than 2^7/12 ∼ 1.498. Write a program where each successive pair of notes has just intonation.
