Lab 7: Natural Language Processing and Machine Learning

Tue Nov 6 11:44:08 EST 2018
© xkcd.com

The combination of steadily increasing computing power and memory with a huge amount of data has made it possible to attack many long-standing problems of getting computers to do tasks that normally would require a human. Machine learning, artificial intelligence, and natural language processing (ML, AI, NLP) have been very successful for games (computer chess and Go programs are better than the best humans), speech recognition (think Alexa and Siri), machine translation, and self-driving cars.

This lab is an open-ended exploration of a few basic topics in NLP with a taste of ML. The hope is to give you at least some superficial experience, and, with a bit of experimentation, to also let you see how well these systems work, or don't. Your job along the way is to answer the questions that we pose, based on your experiments. Include images that you have captured from your screen as appropriate. Submit the result as a web page, using the mechanisms that you learned in the first two or three labs. No need for fancy displays or esthetics; just include text and images, suitably labeled. Use the template in the next section so we can easily see what you've done.

This is a new lab this year, so it's certainly going to have rough edges. Don't worry about details too much, but if you encounter something that seems seriously wrong, please let us know. Otherwise, have fun and see what you learn.

This lab can be done on any computer anywhere.

HTML template for your submission
Part 1: Word Trends and N-grams
Part 2: Language Tools
Part 3: Sentiment Analysis
Part 4: Machine Translation
Part 5: Machine Learning
Submitting your work

In this lab, we will highlight instructions for what you have to submit in a yellow box like this one.



HTML template for your submission

For grading, we need some uniformity among submissions, so you must use this template to collect your results as you work through the lab:

<html>
<title> Your netid, your name </title>
<body>
<h3> Your netid, your name </h3>
  Any comments that you would like to make about the lab,
  including troubles you had, things that were interesting,
  ways we could make it better.
<h3>Part 1</h3>
<h3>Part 2</h3>
<h3>Part 3</h3>
<h3>Part 4</h3>
<h3>Part 5</h3>
</body>
</html>

Put a copy of this in a file called lab7.html and as you work through the lab, fill in each part with what we ask for, using HTML tags like the ones that you learned in the first few labs.



Part 1: Word Trends and N-grams

The Google Books project has scanned millions of books from libraries all over the world. After the books were scanned, Google used optical character recognition on the scanned material to convert it into plain text that can be readily searched and used for language studies.

Google itself provides a web-based tool, the Google Books Ngram Viewer, that shows how often words and phrases have been used in a variety of corpora. (An n-gram is just a phrase of n words that occur in sequence.)

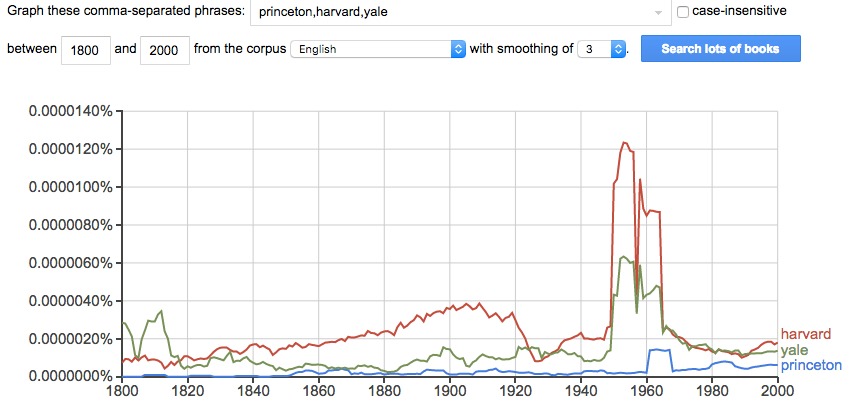

Word usage over time is often revealing and interesting. For example, the graph of "harvard, princeton, yale" shows that "Harvard" occurred much more often than "Yale", which in turn was much more frequent than "Princeton" in the overall corpus. (Sorry, Princeton students, but that's the way it is.)

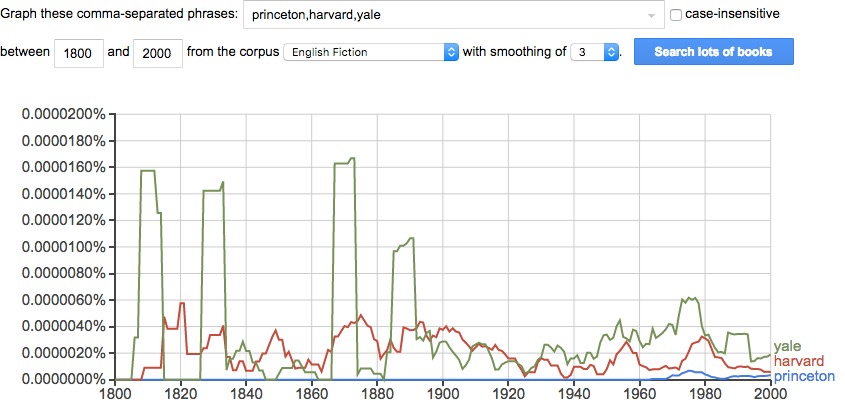

But the same search over "English Fiction" shows quite a different story:

What's with Yale?? This is the kind of unexpected result that might raise questions and lead to further exploration.

In this section of the lab, your task is to play with the n-gram viewer and provide a handful of results that you found interesting or worth further exploration. What you look at is up to you, though general areas might include names of places or people, major events, language evolution, correlation of words and phrases with major world events or social trends. You must provide at least two graphs that use some of the advanced features described on the how it works page.

Include at least two graphs that use some advanced feature of the Ngram viewer, with a paragraph or two that explains what you did, what advanced feature was used, and what your graphs show.



Part 2: Language Tools

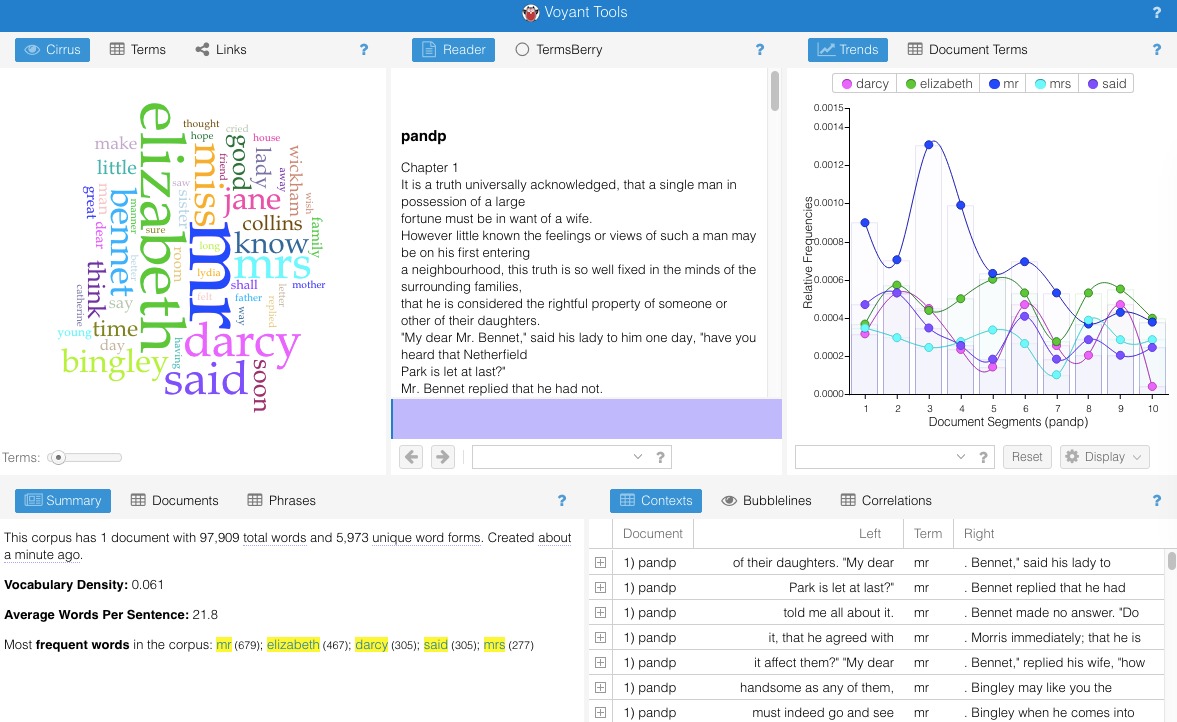

The Voyant system is widely used in digital humanities. It provides tools for counting things in documents and visualizing trends and associations among the words in one or more documents.

Start it up, examine either the Jane Austen or Shakespeare corpora that are already present (or both if you find it fun). Who used a bigger vocabulary? Who wrote longer sentences?

Now upload a text that you are interested in, for example a single novel or historical document. It should be of reasonable size, at least 10,000 words. (Pride and Prejudice is about 100,000 words, Jane Eyre is 185,000, Moby Dick is 210,000.) You can use these if you have no specific literary interest, but it's better to grab something that appeals to you from a site like Project Gutenberg.

Capture a word cloud ("Cirrus") that you like and include it in your ongoing report.

Pick two of the many tools that Voyant provides, and use them to produce some images and perhaps insights that you found interesting, illustrative, appealing, or whatever. (Voyant handles other languages besides English, if you'd like to explore that aspect.) The tools are available from the tiny icon that looks like a perspective view of 4 panes; it comes and goes at the top right of various windows.

Submit some combination of a couple of paragraphs of text and at least two images, including
    The book(s) you picked
    A word cloud
    The tools that you found most useful or insightful
    The displays that you particularly liked



Part 3: Sentiment Analysis

"Sentiment analysis" refers to the process of trying to determine whether a piece of text is fundamentally positive or negative; this has many applications in trying to understand customer feedback and reviews, survey responses, news stories, and the like.

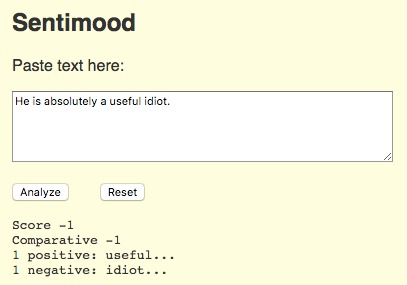

Sentimood is a simple-minded sentiment analyzer that basically just counts words with generally positive or negative connotations and computes some averages. You can see the list of words and their sentiment value by "View Source" in your browser.

Paste some text into the window and it will give you a score that indicates whether the text is positive or negative in tone, along with the words that led it to its conclusion. There's no limit to how much text you can give it, but a few hundred words is plenty.

One problem with Sentimood is that it doesn't understand English at all; it's just counting words. Could we do better by parsing sentences, perhaps to detect things like negation ("He is not an idiot") or qualification by a clause ("A bit slow but certainly not an idiot") or irony ("My, that is a baby, isn't it?").

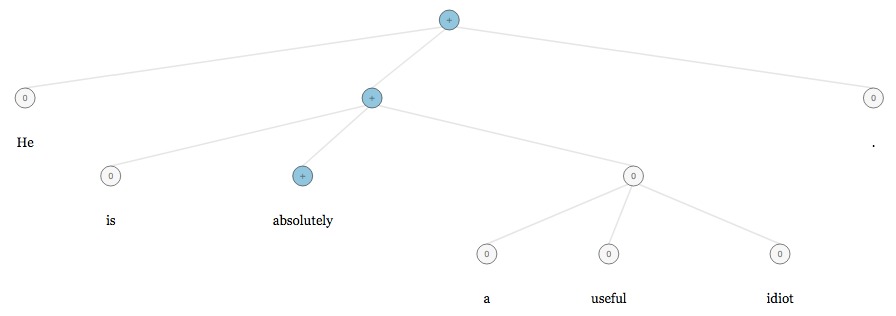

A sophisticated sentiment analyzer from Stanford's Natural Language Processing group does a better job of parsing English, and thus is better at assessing sentiment, though it too is easily fooled. Try it here.

This program has its own problems; in particular, it treats each sentence individually, so there's no good way to assess a longer work.

Find two or three words in Sentimood's list that could be positive or negative.

Give two or three words where you think the weighting is seriously wrong?

Try some sentences from literature, your own writing, tweets, or whatever, with both Sentimood and the Stanford analyzer. Give two examples of sentences where they agree and appear to be correct.

Give two examples where they differ markedly in their assessment.

Give two examples where they agree and appear to be clearly wrong.



Part 4: Machine Translation

Computer translation of one human language into another is a very old problem. Back in the 1950s, people confidently predicted that it would be a solved problem in the 1960s. Sadly, we're not there yet, though the situation is enormously better than it was, thanks to lots of computing power and very large collections of text that can be used to train machine-learning algorithms.

The classic challenge is translating the English expression "the spirit is willing but the flesh is weak" into Russian, then back to English. At least in legend, this came out as "the vodka is strong but the meat is rotten." Today, the Russian is "дух готов, но плоть слаба", and the English is much better: "the spirit is ready but the flesh is weak."

In this section, you have to experiment with Google Translate to get a sense of what works well today and what is not quite ready to replace people.

Try 3 or 4 inputs from different sources, like the first lines of novels or papers you've written or news stories or tweets. Using Google Translate, run them through another language that you know and back to English. Include at least two examples that work well and two that are spectacularly wrong.

How well does Google do on your chosen language? Would it be useful in practice? How about some other language that you know something about?

Repeat the exercise with a sequence of two other languages, so that for example you go from English to Twi to Urdu to English.



Part 5: Machine Learning

"Machine learning algorithms can figure out how to perform important tasks by generalizing from examples." Most machine-learning algorithms have a similar structure. They "learn" by processing a large number of examples that are labeled with the correct answer, for example, whether some text is spam or not, or which digit a hand-written sample is, or what kind of animal is found in a picture, or what the price of a house is. The algorithm figures out parameter values that enable it to make the best classifications or predictions based on this training set.

After training, the algorithm classifies new items, or predicts their values, based on what it learned from the training set.

There is an enormous range of algorithms, and much research in continuing to improve them. There are also many ways in which machine learning algorithms can fail -- for example, "over-fitting", in which the algorithm does very well on its training data but much less well on new data -- or producing results that confirm biases in the training data; this is an especially sensitive issue in applications like sentencing or predicting recidivism in the criminal justice system.

One particularly effective kind of ML is called "deep learning" because its implementation loosely matches the kind of processing that the human brain does. A set of neurons observe low-level features; their outputs are combined into another set of neurons that observe higher-level features based on the lower level, and so on. Deep learning has been very effective in image recognition, and that's the basis of this part of the lab.

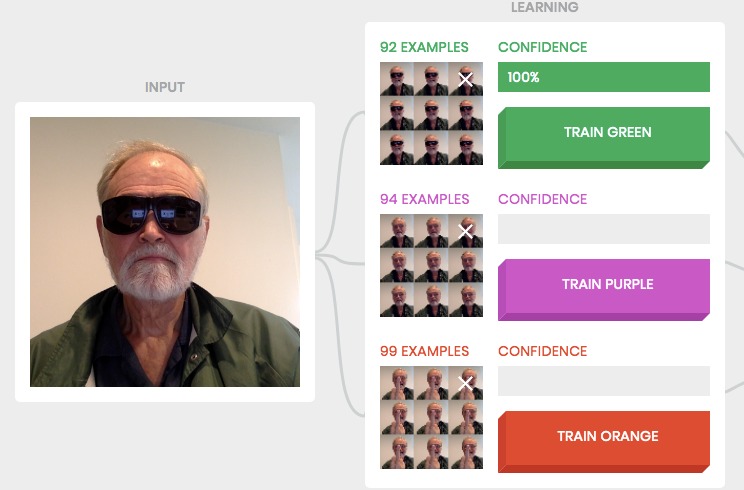

Google provides Teachable Machine, a simple interface that uses the camera on a computer to train a neural network on two or three visual inputs; the interface looks like this:

I trained the network on three images: with sunglasses, without, and without plus a rude gesture. The recognizer is quite good at distinguishing them. Your job is to do some comparable but hopefully more interesting and challenging examples of your own, and report on what you discovered about what works and what does not.

Using the deep learning link above, do two distinctly different image recognition tasks using the camera in your computer. This might be images of yourself in various attire, or of you and two friends, or inanimate objects, or lots of other things -- be imaginative!

For each experiment, describe what you tried, why you chose it, and how well it worked. How many training examples were necessary? How did it improve, if at all, with more training?

Include a screenshot like the one above.



Submitting Your Work

Make sure your lab7.html, including all images, is accessible at https://your_netid.mycpanel.princeton.edu/. The easiest way is to make a folder called lab7, then link to that from your index.html. Ask a friend to view your page and check all the links from his or her computer. You will have to make sure that any image files that you added are also readable. Use the cPanel web interface to adjust permissions if necessary.

When you are sure that your page is displaying correctly, upload your lab7.html and other files to https://dropbox.cs.princeton.edu/COS109_F2018/Lab7.
