Language Overview

Constraints

We will now look at how to write and understand Propane policies. The main building block in Propane is the constraint block, which associates prefixes with routing constraints. For example, the following policy adds the constraint that traffic destined for 1.2.3.4 should take a path that avoids location B.

define main = {
  1.2.3.4 => avoid(B)
}

Intuitively, you can think of each constraint as representing a set of (ranked) paths that are allowed by the policy. The network is free to choose any path dynamically, so long as it is in this set. In particular, each router in the network will use its most preferred (lowest ranked) path in this set. For example, the constraint avoid(B) represents the set of all paths that do not contain B. Each router would choose use its best path from this set.

Combinators

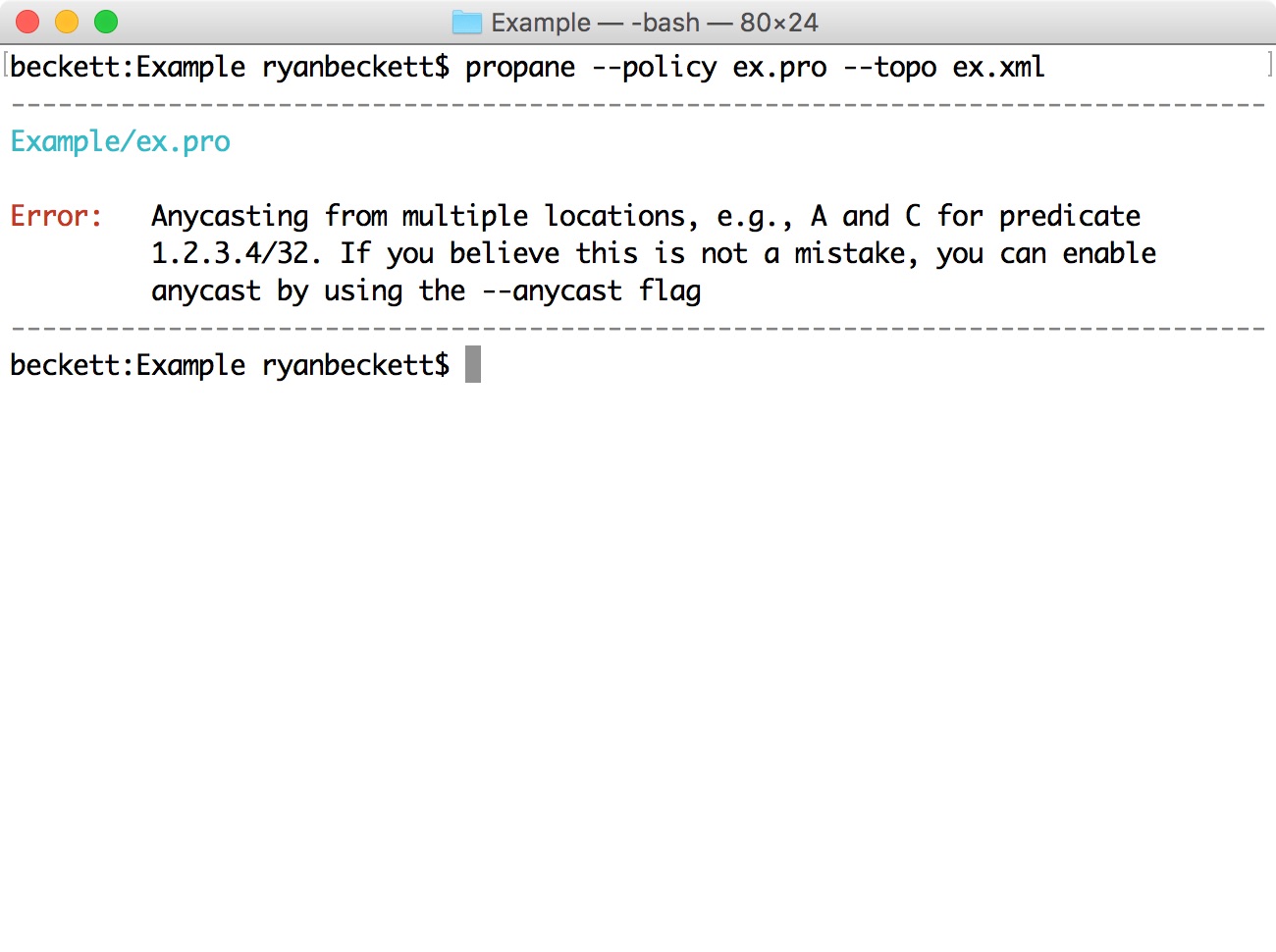

A single routing constraint is often not enough to capture the entire policy. In fact, if we tried to compile the example above for topology from the previous section, we would get the following compile-time error:


What does this error mean? The compiler has recognized that we have not constrained the routing policy to specify a destination location. By leaving the destination unspecified, it would be anycasted from every router. This is almost certainly not correct here, so we can add another constraint to the policy for the end point.

define main = {
  1.2.3.4 => avoid(B) & end(D)
}

Intuitively, the & operator ensures that both constraints are satisfied. This can be thought of as taking the set intersection of the allowed paths. The avoid(B) constraint defines paths that do not go through B, and the end(D) constraint defines all paths with a final hop of D. By intersecting these constraints, we are left with a set of paths both ending at D and avoiding B. Suppose now we wish to allow traffic to end up at either router C or router D (e.g., to anycast a service). We can allow this possibility using the + operator:

define main = {
  1.2.3.4 => avoid(B) & end(C + D)
}

The + operator takes the set union of paths. In this case, it allows traffic to end either at C or D. Note that operators can be used inside constraints, where end(C + D) is equivalent to end(C) + end(D). Now suppose we want to allow traffic to reach C or D from every router in our network except router A. In this case, we can use the not operator. We can modify the policy as follows:

define main = {
  1.2.3.4 => not start(A) & avoid(B) & end(C + D)
}

The not combinator negates a set of paths. In this case start(A) describes all paths that start at router A, while not start(A) describes all paths that do not start at A. The not operator binds more tightly than other operators, so it applies only to the start(A) constraint in this example.

The last combinator is the preference >> operator. The semantics of >> is that the constraint on the left should always be satisfied when possible. When it is not possible to satisfy the constraint (e.g., due to network failures), the constraint on the right should be satisfied instead. For example, suppose we prefer that traffic traverses middlebox M when possible, but any path is fine when this is not possible. We might write a policy that looks like the following:

define main = {
  1.2.3.4 => (through(B) >> any) & end(D)
}

This policy says to satisfy constraint through(M) when possible. When this is not possible due to failures, the constraint any applies, which allows any path. We can compose this preference with the additional constraint that traffic ends up at router D. The >> operator can be thought of as similar to the union (+) operator, but it associates a rank with paths. Paths satisfying the constraint on the left have a better rank than those on the right. Propane ensures all routers get their best possible ranked path according to the policy, given the network failures that have occurred.

Special Values

Propane includes two special values: in and out. The first value, in, denotes a set containing all of the routers that are internal to the network. If our network contains 3 internal routers: X,Y,Z, then we can think of in as a special value equivalent to:

define in = X + Y + Z

The second special value: out matches any external AS. This could either be a directly connected peer AS, or any other external downstream AS. For example, the constraint end(out) means that the traffic is external and should leave our network.

Constraint reference

The complete list of Propane constraints is shown below.

Constraint Example Meaning
end end(A + B) Traffic ultimately ends up at A or B
start start(A) Only traffic leaving A is allowed
enter enter(as100) Traffic should enter through peer as100
exit exit(Peer1) Traffic should exit through Peer1
path path(A,B,C,...) Traffic must follow the exact path A,B,C,...
reach reach(A,B) Router A should be able to send to destination B
always always(A+B+C) Every hop along the path should match A or B or C
internal internal The path should stay inside our network
through through(M1 + M2) Ensure traffic goes through location (or AS) M1 or M2
avoid avoid(B) Avoid using a path that goes through location B
valleyfree valleyfree(A+B, C+D, ...) Prevent valley routing in a dataceter with tiers A+B, ...
any any Matches and allows any path
drop drop The empty set of paths, drops traffic

Modularity and Abstraction

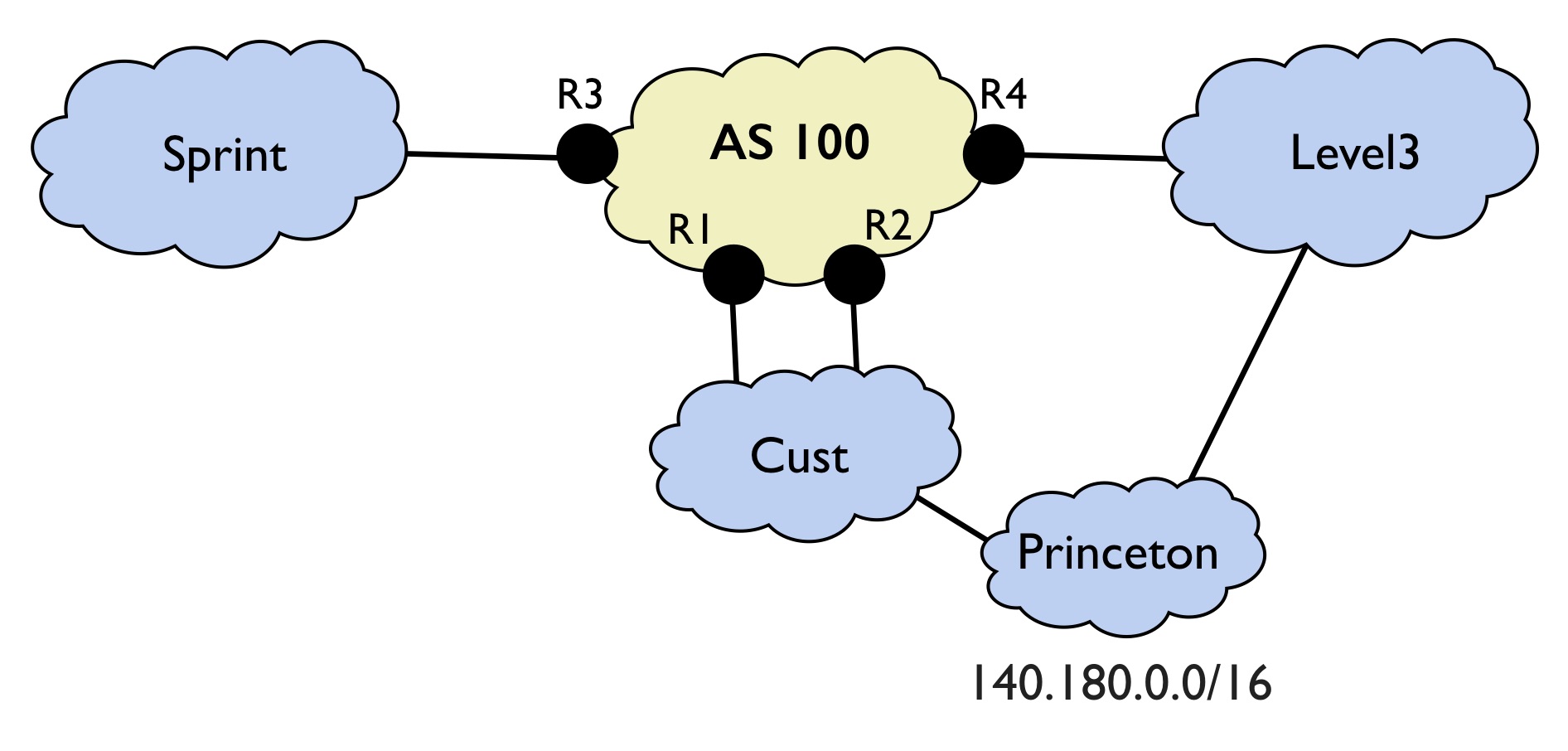

The ability to write modular policies and to create new, reusable abstractions is important. Propane supports features for both of these tasks. To see how this works, lets consider writing a configuration for a backbone network, depicted below:


You can find the topology and policy for this example in the Example2/ directory. In this example, we are configuring a backbone network. There are four internal routers R1-R4 and three external neighbors, peers Sprint and Level3, and customer Cust. The topology file is shown below.

ex2.xml

<topology asn="100">
  <!-- Internal routers -->
  <node internal="true" name="R1"></node>
  <node internal="true" name="R2"></node>
  <node internal="true" name="R3"></node>
  <node internal="true" name="R4"></node>

  <!-- External Peers -->
  <node internal="false" asn="200" name="Cust"></node>
  <node internal="false" asn="300" name="Sprint"></node>
  <node internal="false" asn="400" name="Level3"></node>

  <!-- Full mesh connectivity -->
  <edge source="R1" target="R2"></edge>
  <edge source="R1" target="R3"></edge>
  <edge source="R1" target="R4"></edge>
  <edge source="R2" target="R3"></edge>
  <edge source="R2" target="R4"></edge>
  <edge source="R3" target="R4"></edge>

  <!-- Connections to neighbors -->
  <edge source="R1" target="Cust"></edge>
  <edge source="R2" target="Cust"></edge>
  <edge source="R3" target="Sprint"></edge>
  <edge source="R4" target="Level3"></edge>
</topology>

Note that for external neighbors Sprint, Level3, and Cust, we include their AS number in the topology file. Also, although we know Princeton is connected to Cust we will not add this information into the topology description.

The policy we want to implement is roughly the following:

  • Never send traffic destined to private address space (e.g., 10.0.0.8)
  • Prefer to send traffic directly to customer Cust rather than through peers
  • Prefer to use the better link from R2 to Cust over the link R1 to Cust
  • Prevent becoming a transit point between Sprint and Level3
  • For security, ensure traffic for 140.180.0.0/16 ends up at Princeton

Lets start by creating a few definitions to name prefixes and peers.

define Princeton = as500
define Peer = {Sprint, Level3}
define private =
  10.0.0.0/[8..32] or
  172.16.0.0/[12..32] or
  192.168.0.0/[16..32] or
  169.254.0.0/[16..32]

This defines Princeton to be AS number 500. Even though it is not included in our topology file, we can refer to other ASes such as Princeton by directly referring to its AS number. The second line defines a Peer (with free exchange of traffic) to be the set containing Sprint and Level3. The set notation is just syntactic sugar for set union (Sprint + Level3). The last definition defines private address space as a range of different prefixes. The notation 10.0.0.0/[8..32] means any prefix for 10.*.*.* with length between 8 and 32 inclusive. We use the or operator to match any of a number of different prefixes.

Let us now implement the first three parts of the specification. For all traffic, we want to prefer Cust over peers, and to prefer R2 over R1. We can add these constraints with the following Propane definition:

define prefs = {
  private => drop,
  true => exit(R2 >> Cust >> Peer)
}

The first line says to perform a network-wide drop for private addresses. If we wanted to use private address space inside our network, we could have added the constraint private => internal instead. The second line applies to only public addresses and says that we want to leave through R2 if possible, otherwise leave through any exit point to Cust (in this case, that's just R1), and then Peer if neither is possible.

Next, we can define what transit traffic is. Intuitively, transit traffic between peers X and Y is traffic that enters the network through X and leaves through Y, or vice-versa. We can capture this definition as follows:

define transit(X,Y) = (enter(X) & exit(Y)) + (enter(Y) & exit(X))

Because Propane does not consider paths with loops, if we wanted, we could simplify this definition to the following equivalent definition:

define transit(X,Y) = enter(X+Y) & exit(X+Y)

Now lets add the constraint that we want to prevent transit traffic between Peers:

define notransit = {
  true => not transit(Peer,Peer)
}

Finally, we can add the constraint that traffic destined for 140.180.0.0/16 should end up at princeton.

define ownership = {
  148.180.0.0/16 => end(Princeton)
}

The final policy will combine all of these constraints together. We define a main constraint as before, but now we combine the prefs, notransit, and ownership constraints together using the same & operator.

define Princeton = as500
define Peer = {Sprint, Level3}

define prefs = {
  private => drop,
  true => exit(R2 >> Cust >> Peer)
}

define transit(X,Y) = enter(X+Y) & exit(X+Y)

define notransit = {
  true => not transit(Peer,Peer)
}

define ownership = {
  148.180.0.0/16 => end(Princeton)
}

define main = prefs & notransit & ownership

Propane combines constraint blocks by joining constraints prefix-by-prefix using the operator specified. For example, when we join the prefs and notransit with the & operator, the compiler realizes that the not transit(Peer,Peer) constraint should apply both to private and public addresses and will combine this constraint with the existing drop and exit(R2 >> Cust >> Peer) constraints using the & operator.
