Report of Image Analogy

Tianqiang Liu

Basic Algorithm

In this section, image analogy is completed in one level, without coherence, and without ANN acceleration. The result is shown in Figure 1.



a.jpg ap.jpg

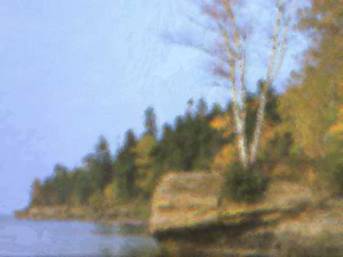

                                       Figure 1a A                                                                                            Figure 1b Ap

b.jpg blur.bmp

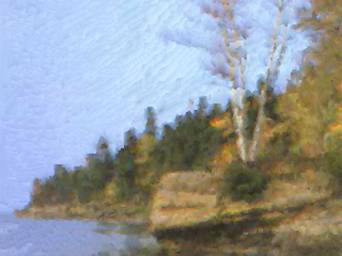

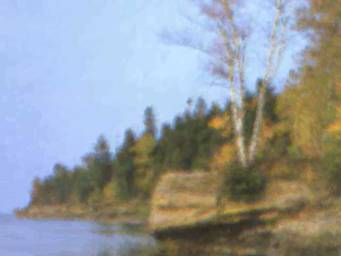

                           Figure 1c B                                                                                          Figure 1d Bp

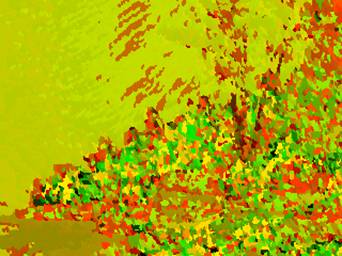

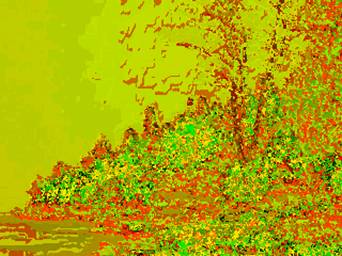

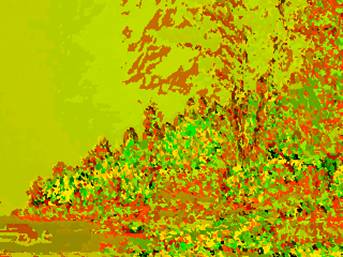

Figure 1e Matching Result



Figure 1e presents the matching image. For each pixel in Bp, we match a pixel from Ap to it. The red channel is the x position of the corresponding pixel from Ap, and the green channel is the y position. Because of the structure of .bmp file, the pixel with the position of (0, 0) is at the bottom left of the image.



The neighborhood size in the example is 5 by 5. The running time (resolution: 320*240pixels) is 2200 seconds.

Coherence Search

In this section, coherence search is added, and kappa is used to define the preference between coherence search and closest-distance search.

Figure 2a presents the result after taking coherence into consideration (with kappa = 5.0), and Figure 2b is the matching image.



blur_coh.bmp 234_match.bmp

                    Figure 2a Coherence Result (kappa = 5.0)                                        Figure 2b Matching Result



The size of regions in Figure 2b is apparently larger than that in Figure 1e, which is direct result of coherence. Figure 2a presents a different style of blur compared to Figure 1d, which is something like oil painting.



Taking coherence into consideration causes a bit more running time. In the example above, the running time is 2230s, also with the neighborhood of 5 by 5.



Figure 3 present the result with kappa = 1.0, note that the size of regions in the matching image is not as large as that in Figure 2b, giving a better result of blur.

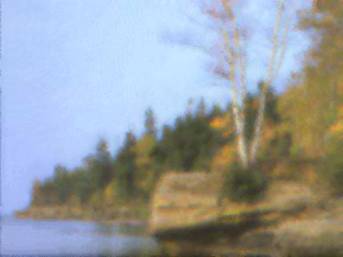

blursinglelevel.bmp match1.bmp

Figure 3a Coherence Result (kappa = 1.0)                                                  Figure 3b Matching Result



For the example of texture synthesis (Figure 4), the choice of kappa influences greatly on the result.



synth1.Ap.bmp  488_bp4.bmp  688_bp4.bmp

              Figure 5a Exemplar                                  Figure 5b kappa = 0.0                                     Figure 5c kappa = 6.0

Multi-resolution Synthesis

To implement multi-resolution synthesis, we should generate gaussian pyramids for image A, image Ap, image B, and do synthesis on each level, as shown in Figure 5.



254_bp1.bmp 254_bp2.bmp 254_bp3.bmp 254_bp4.bmp

                                                      Figure 5 Multi-resolution Synthesis



The running time increases not only because we have to generate 4 levels instead of 1, but also because we have to calculate with a longer feature vector at each pixel (since the neighboring pixels at coarser level is also included). The running time of the above example is 28021 seconds.



Although multi-resolution does not show great advantage over single-level synthesis in blurring, it outperforms single-level synthesis great in texture synthesis. Figure 6a shows the result of synthesis on flower in single-level, and Figure 6b shows the result in multi-level (4 levels). With the same parameters (kappa = 6.0, neighborhood size = 9 by 9), it is obvious that multi-level is helpful to preserve the unity of flowers in this case: from the result of single level implementation (Figure 6a), we can detect a lot of petal, but can hardly tell a complete flower.

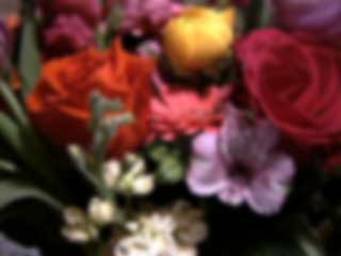

synthsinglelevel.bmp 688_bp4.bmp

         Figure 6a Single-level                                              Figure 6b Multi-level

ANN search acceleration

The result of ANN search acceleration is shown in Figure 7.

466_bp1 466_bp2 466_bp3 466_bp4

                                                        Figure 7 Synthesis with ANN



We achieve the same result with running time only 21 seconds (the error tolerance in ANN search is set as 0.0).



Constrained Texture Synthesis

We can no longer use L-shape to define the feature in Bp, since it is not a scanning order, and the neighborhood of a pixel which has been completed is totally random. Because the size of feature is not fixed, ANN cannot work in constrained texture synthesis, and we have to use brute force to find the corresponding pixel.



There is also another question that which pixel should be firstly synthesis? There are two possible methods. First one is bread-first-searching, that is to expand the completed pixels, and add the uncompleted pixels which are near to the completed pixels into an FIFO queue. In this sense, the pixel which is closer to the existing pixels are synthesized first, and pixels that are farther from the existing pixels synthesized later.



Another choice is to maintain a priority queue of pixels, and the value of a pixel is the number of pixels in its neighborhood that have been completed. The neighborhood here is the one used in calculating the feature for each pixel.



Figure 8 presents the result of these two different methods. Two other sets of results will be shown in Application: Image Inpainting.



color.bmp   mask.bmp

Figure 8a Original                     Figure 8b Mask

666_bp2.bmp   666_match2.bmp

Figure 8c Minimized Neighborhood   Figure 8d Matching Image

bp2.bmp   match2.bmp

Figure 8e BFS                Figure 8f Matching Image

Application: Image Filters

Blur Filter (4 levels, kappa = 1.0, neighborhood = 5 by 5)

a.jpg ap.jpg

                                               A                                                                                                             Ap

b.jpg 466_bp4.bmp

                                     B                                                                                                             Bp



Embossing Filter 1 (2 levels, kappa = 2.0, neighborhood = 5 by 5)

emboss.A.bmp emboss.Ap.bmp

                                     A                                                                                          Ap

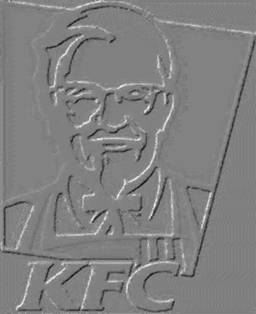

emboss.B.jpg   bp2.bmp

                                 B                                                                                          Bp



Embossing Filter 2 (3 levels, kappa = 2.0, neighborhood = 5 by 5) (A and Ap is same with above)

emboss.B.jpg   emboss.bmp

B                                                                                          Bp



Application: Texture Synthesis

Texture Synthesis 1 (4 levels, kappa = 6.0, neighborhood = 9 by 9, running time = 103 seconds)

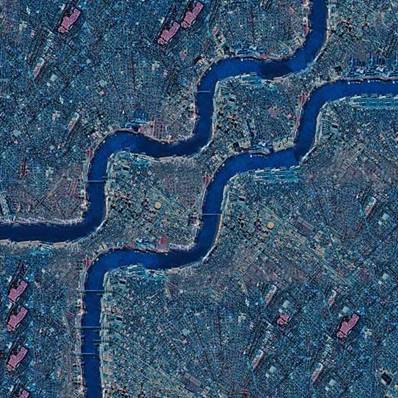

synth1.Ap.bmp 688_bp4.bmp 688_match4.bmp

                            Exemplar                                                         Result                                                             Matching Image (Finest Level)

Texture Synthesis 2 (4 levels, kappa = 6.0, neighborhood = 13 by 13, running time = 204 seconds)

synth2.Ap.jpg 257_bp4.bmp 257_match4.bmp

Exemplar                                                             Result                                                    Matching Image (Finest Level)



Texture Synthesis 3 (3 levels, kappa = 0.5, neighborhood = 9 by 9, running time = 23 seconds)

synth4.Ap.jpg 586_bp3.bmp 586_match3.bmp

Exemplar                                           Result                                                      Matching Image (Finest Level)

Application: Texture by Number

Texture by Number 1 (4 levels, kappa = 2.0, neighborhood = 9 by 9, running time = 1360 seconds)

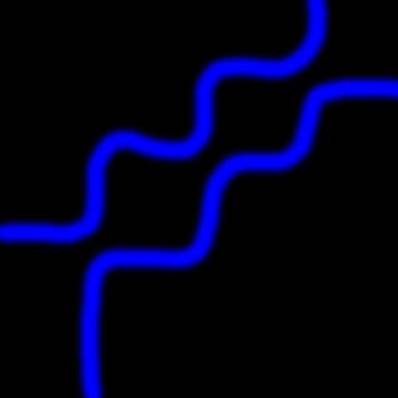

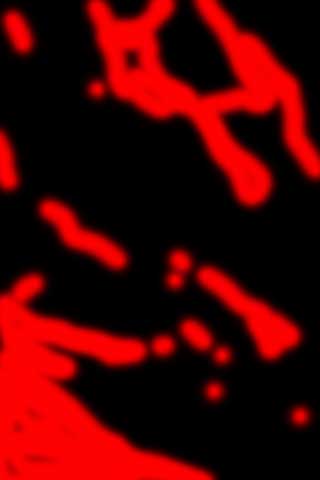

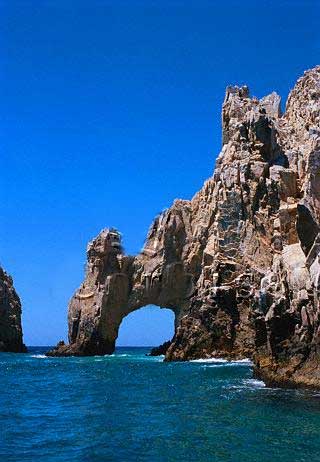

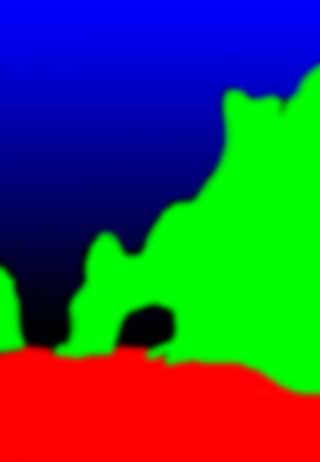

arch-mask.jpg arch.jpg

A                                                Ap

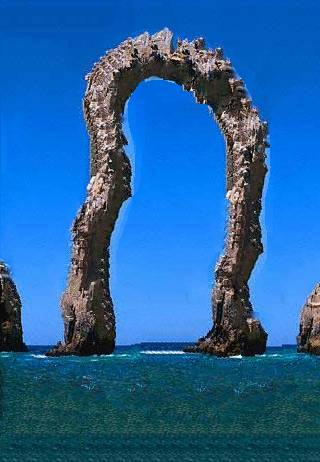

arch-newmask.jpg 422_bp3.bmp

                                     B                                             Bp



Texture by Number 2 (4 levels, kappa = 6.0, neighborhood = 9 by 9, running time = 3596 seconds)

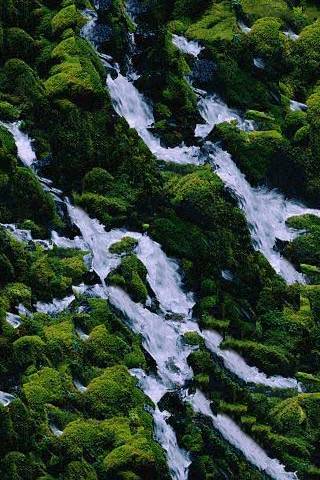

waterfall-mask.jpg waterfall.jpg

                     A                                              Ap

waterfall-newmask1.jpg 459_bp3.bmp

                   B                                                Bp



Texture by Number 3 (5 levels, kappa = 3.0, neighborhood = 9 by 9, running time = 15932 seconds)

neworleans-mask.jpg neworleans.jpg

                        A                                                             Ap

neworleans-newmask.jpg 404_bp4.bmp

                          B                                                          Bp

Application: Image Inpainting

(All the results below are generated using priority queue of number completed pixels in neighborhood)

Image Inpainting 1 (4 levels, kappa = 5.0, neighborhood = 13 by 13, running time 8084 seconds)

color.bmp 777_bp3.bmp



Image Inpainting 2 (3 levels, kappa = 1.0, neighborhood = 9 by 9, running time 57 seconds)

color.bmp 666_bp2.bmp



Image Inpainting 3 (4 levels, kappa = 3.0, neighborhood = 5 by 5, running time 2121 seconds)

color.bmp bp3.bmp

Application: Image Colorization

Image Colorization 1 (3 levels, kappa = 0.0, neighborhood = 5 by 5, running time 7 seconds)

welsh-src-gray.jpg welsh-src.jpg

                                     A                                                                                          Ap

welsh-dst-gray.jpg 288_bp3.bmp

                            B                                                                                          Bp

Image Colorization 2 (1 levels, kappa = 0.0, neighborhood = 5 by 5, running time 10 seconds)

art.A.jpg art.Ap.jpg

                                     A                                                                                                Ap

art.B.jpg         art.bmp
