Programming Assignment 1: Percolation

Write a program to estimate the value of the percolation threshold via Monte Carlo simulation.

Install a Java programming environment. Install a Java programming environment on your computer by following these step-by-step instructions for your operating system [ Mac OS X · Windows · Linux ]. After following these instructions you will have stdlib.jar and algs4.jar in your Java classpath: the former contains libraries for reading data from standard input, writing data to standard output, drawing results to standard draw, generating random numbers, computing statistics, and timing programs; the latter contains all of the algorithms in the textbook.

Percolation. Given a composite systems comprised of randomly distributed insulating and metallic materials: what fraction of the materials need to be metallic so that the composite system is an electrical conductor? Given a porous landscape with water on the surface (or oil below), under what conditions will the water be able to drain through to the bottom (or the oil to gush through to the surface)? Scientists have defined an abstract process known as percolation to model such situations.

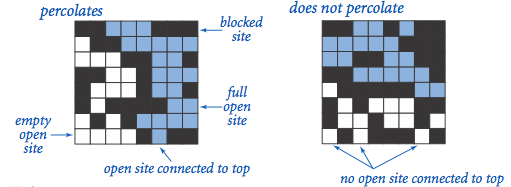

The model. We model a percolation system using an N-by-N grid of sites. Each site is either open or blocked. A full site is an open site that can be connected to an open site in the top row via a chain of neighboring (left, right, up, down) open sites. We say the system percolates if there is a full site in the bottom row. In other words, a system percolates if we fill all open sites connected to the top row and that process fills some open site on the bottom row. (For the insulating/metallic materials example, the open sites correspond to metallic materials, so that a system that percolates has a metallic path from top to bottom, with full sites conducting. For the porous substance example, the open sites correspond to empty space through which water might flow, so that a system that percolates lets water fill open sites, flowing from top to bottom.)

Percolates

The problem. In a famous scientific problem, researchers are interested in the following question: if sites are independently set to be open with probability p (and therefore blocked with probability 1 − p), what is the probability that the system percolates? When p equals 0, the system does not percolate; when p equals 1, the system percolates. The plots below show the site vacancy probability p versus the percolation probability for 20-by-20 random grid (left) and 100-by-100 random grid (right).

Percolation threshold for 20-by-20 grid                Percolation threshold for 100-by-100 grid

When N is sufficiently large, there is a threshold value p* such that when p < p* a random N-by-N grid almost never percolates, and when p > p*, a random N-by-N grid almost always percolates. No mathematical solution for determining the percolation threshold p* has yet been derived. Your task is to write a computer program to estimate p*.

Percolation data type. To model a percolation system, create a data type Percolation with the following API:

public class Percolation {
   public Percolation(int N)              // create N-by-N grid, with all sites blocked
   public void open(int i, int j)         // open site (row i, column j) if it is not already
   public boolean isOpen(int i, int j)    // is site (row i, column j) open?
   public boolean isFull(int i, int j)    // is site (row i, column j) full?
   public boolean percolates()            // does the system percolate?
   public static void main(String[] args) // unit tests for this class (not graded) (see checklist)
}
}

By convention, the indices i and j are integers between 0 and N − 1, where (0, 0) is the upper-left site: Throw a java.lang.IndexOutOfBoundsException if either i or j is outside this range. The constructor should take time proportional to N2; all methods should take constant time plus a constant number of calls to the union-find methods union(), find(), connected(), and count().

Monte Carlo simulation. To estimate the percolation threshold, consider the following computational experiment:

For example, if sites are opened in a 20-by-20 lattice according to the snapshots below, then our estimate of the percolation threshold is 204/400 = 0.51 because the system percolates when the 204th site is opened.

      Percolation 50 sites
50 open sites
Percolation 100 sites
100 open sites
Percolation 150 sites
150 open sites
Percolation 204 sites
204 open sites

By repeating this computation experiment T times and averaging the results, we obtain a more accurate estimate of the percolation threshold. Let xt be the fraction of open sites in computational experiment t. The sample mean μ provides an estimate of the percolation threshold; the sample standard deviation σ measures the sharpness of the threshold.

Estimating the sample mean and variance
Assuming T is sufficiently large (say, at least 30), the following provides a 95% confidence interval for the percolation threshold:

95% confidence interval for percolation threshold

To perform a series of computational experiments, create a data type PercolationStats with the following API.

public class PercolationStats {
   public PercolationStats(int N, int T)    // perform T independent computational experiments on an N-by-N grid
   public double mean()                     // sample mean of percolation threshold
   public double stddev()                   // sample standard deviation of percolation threshold
   public double confidenceLow()            // low end of 95% confidence interval
   public double confidenceHigh()           // high end of 95% confidence interval
   public static void main(String[] args)   // unit tests for this class (not graded) (see checklist)
}
The constructor should throw a java.lang.IllegalArgumentException if either N ≤ 0 or T ≤ 0.

The constructor should take two arguments N and T, and perform T independent computational experiments (discussed above) on an N-by-N grid. Using this experimental data, it should calculate the mean, standard deviation, and the 95% confidence interval for the percolation threshold. Use standard random from stdlib.jar to generate random numbers; use standard statistics from stdlib.jar to compute the sample mean and standard deviation.

Example values after creating PercolationStats(200, 100)
mean()                  = 0.5929934999999997
stddev()                = 0.00876990421552567
confidenceLow()         = 0.5912745987737567
confidenceHigh()        = 0.5947124012262428

Example values after creating PercolationStats(200, 100)
mean()                  = 0.592877
stddev()                = 0.009990523717073799
confidenceLow()         = 0.5909188573514536
confidenceHigh()        = 0.5948351426485464


Example values after creating PercolationStats(2, 10000)
mean()                  = 0.666925
stddev()                = 0.11776536521033558
confidenceLow()         = 0.6646167988418774
confidenceHigh()        = 0.6692332011581226

Example values after creating PercolationStats(2, 100000)
mean()                    = 0.6669475
stddev()                  = 0.11775205263262094
confidenceLow()         = 0.666217665216461
confidenceHigh()        = 0.6676773347835391

Analysis of running time and memory usage.

Deliverables. Submit only Percolation.java (using the weighted quick-union algorithm as implemented in the WeightedQuickUnionUF class) and PercolationStats.java. We will supply stdlib.jar and WeightedQuickUnionUF. Your submission may not call any library functions other than those in java.lang, stdlib.jar, and WeightedQuickUnionUF. Also, submit a readme.txt file and answer all questions. You will need to read the COS 226 Collaboration Policy in order to answer the related questions in your readme file.


This assignment was developed by Bob Sedgewick and Kevin Wayne.
Copyright © 2008.
