Homework #2
|
Fall 2007
|
Submit hard copies of these on or before the due date as described on the assignments page. Approximate point values are given in brackets next to each problem.
1. [15] Consider the following search problem:

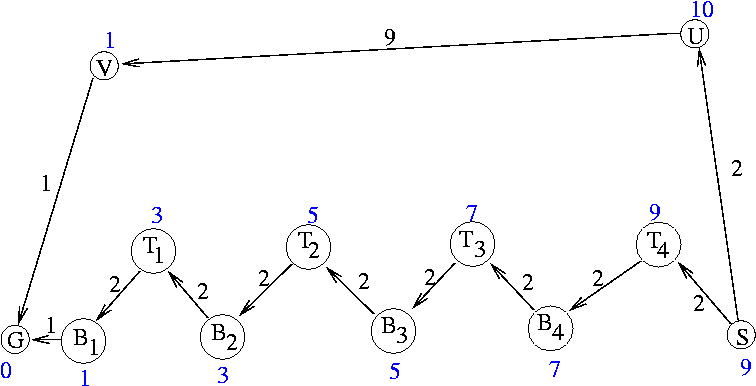

The states are the vertices of this graph. The start state is S, and the goal state is G. The actions permit movement along directed edges with costs as indicated. (For instance, the cost of moving from S to U is 2; the cost from U to V is 9.) The numbers in blue by each vertex indicate heuristic h values. (For instance, h(S)=9; h(U)=10.)
a. Show that this choice of h is consistent.
b. Draw the search tree that would result from running greedy best-first search. Also number the nodes of the search tree in the order in which they are expanded. For instance, place the number 1 by the start node (associated with the start state S).
c. Do the same thing for A*. Also indicate the g and f values associated with each search node.
2. [10] Exercise 4.7 in R&N. Also, answer the following: Does the admissible-but-not-consistent heuristic that you constructed have the monotone property that we discussed? In other words, is it the case that the f-values are nondecreasing along every path?
3. [8] Exercise 4.11 in R&N.
4. [15] Exercise 6.1 in R&N. Assume player X goes first. In part (a), "game" should be interpreted to refer to a complete path through the search tree from the root to a leaf, in other words, a sequence of plays culminating in either a victory for one of the players or a draw. Note that part (a) asks for an approximate estimate, so don't spend a lot of time trying to get an exact answer. In part (e), "optimal order" means that the best successors (in terms of their value) are always examined first.
5. [10] Exercise 6.2 in R&N.
In this programming assignment, you will use the A* algorithm to solve instances of the Rush Hour puzzle. This will involve implementing a graph-search version of A*, along with three heuristics, and testing your implementation on several Rush Hour puzzles. Code is being provided for handling input/output, for representing states, search nodes and puzzles, etc. Your job will be simply to fill in code for A* and the heuristics.
You also are asked to submit a brief written report, as described below.

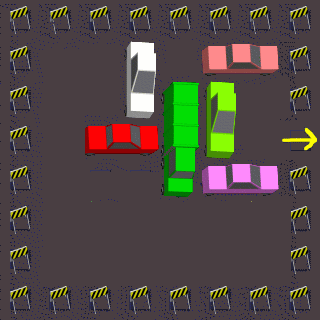

This assignment focuses on Rush Hour puzzles such as the following:
In Rush Hour puzzles such as this one, the red car is stuck in traffic and is trying to escape. Cars can be moved up and down or left and right. They are allowed to move more than one square in a single move, but cannot move over or through other cars. The goal is to clear a path so that the red car can escape past the yellow arrow. You are encouraged to try it out yourself at puzzles.com, as well as other sites such as here and here. (The puzzles.com site requires Internet Explorer to play.)
One of the main parts of this project is implementing A* and three heuristics for solving Rush Hour puzzles. Your implementation of A* should use a graph-search, not a tree-search. In other words, it should check to be sure that it is not re-exploring parts of the search space that have already been explored. The goal of the search is to solve the puzzle in the fewest moves possible, so the cost of a search path should simply be the number of legal moves made.
Here are the three heuristics that you should implement and test A* on:
In your written report, you should include a clear and precise description of the advanced heuristic that you chose to implement. You also should include a brief but convincing argument of why both the blocking heuristic and your advanced heuristic are consistent, and therefore appropriate for use with A* graph search.
We are providing code for handling input/output, representing states, search nodes, etc. Your job is simply to fill in A* and the two non-trivial heuristics.
The class Puzzle represents an instance of a Rush Hour puzzle. This class includes methods for accessing information about the puzzle that is being represented, as well as for reading in a list of puzzles from a data file. In addition, this class maintains a counter of the number of states that have been expanded for this puzzle. Methods for accessing, incrementing or resetting this counter are also provided.
Note that every car is constrained to only move horizontally or vertically. Therefore, each car has one dimension along which it is fixed, and another dimension along which it can be moved. The fixed dimension is stored here as part of the puzzle, while the variable dimension is stored as part of the state (class State).
The goal car (the one we are trying to move to the exit) is always assigned index 0.
The class State represents a state or configuration of the puzzle. Methods are provided for constructing a state, for accessing information about a state, for printing a state, and for expanding a state (i.e., obtaining a list of all states immediately reachable from it). Also provided are hashCode and equals methods which override the same methods provided by the Object class. These are provided so that State objects representing the identical configuration will be considered equal.
The class Node represents a search node of the puzzle, including an actual state, the depth of the node, and a link to the parent node that makes it possible to trace back a path to the root node. Methods are provided for accessing information about the search node, and for expanding it (i.e., obtaining a list of all nodes immediately reachable from it, corresponding to the immediately reachable states). Note the distinction between states and search nodes as discussed in class.
Your A* implementation will take as input a heuristic. Heuristics are classes that implement the Heuristic interface that we are providing. Such classes must include a method for computing the value of the heuristic at a given state. The ZeroHeuristic implementation has been provided.
We also are providing a class called BranchingFactor that includes a static method for computing average branching factor as defined in R&N.
Finally, the class RushHour consists of a simple main for running A* on all three heuristics and for all of the puzzles included in a file named in argv[0]. For instance, on unix systems, the command java RushHour jams.txt will run the program on all puzzles in the file jams.txt. The program prints out the solution for each puzzle and each heuristic, and prints a table summarizing the results. You may wish to modify this main to obtain printed results in some other form, or to test your program in some other way.
In addition to the code we are providing, as always, you are welcome to use anything provided in the Standard Java Platform. You may find some of these classes, such as TreeSet or PriorityQueue, especially helpful.
Locations on the grid of a Rush Hour puzzle are identified by their (x, y) coordinates, where the upper left corner is square (0,0). For instance, in the puzzle above, the red car occupies squares (1,2) and (2,2). The goal is to move the red car so that it occupies squares (5,2) and (6,2).
Puzzles can be read from a file into memory using the static method Puzzle.readPuzzlesFromFile. Such puzzles should be encoded as in the following example representing the puzzle above:
example
6
1 2 h 2
2 0 v 2
4 0 h 2
3 1 v 3
4 1 v 2
4 3 h 2
.
The first line assigns a name to the puzzle, in this case "example". The next line, "6", gives the size of the grid, i.e., this puzzle is defined on a 6x6 grid. The next line, "1 2 h 2", gives a description of the red car. Note that the goal car must always be given first. The first two numbers (1,2) give the (x, y) coordinates of the upper left corner of the car. The "h" indicates that the car is horizontally oriented ("v" would have indicated vertical orientation). The last number "2" indicates that the car has size (i.e., length) 2. The next line, "2 0 v 2" describes the pink car, and so on. The last line must consist of a single period, indicating the end of the description of the puzzle. Multiple puzzles may be described consecutively in a single file.
Internally, within the Puzzle class, each car is represented by its orientation (vertical or horizontal), its size and its fixed position. In addition, the variable position of its upper left corner is stored in the State class. For instance, the red car would have a fixed position of 2, and an initial variable position of 1. During the course of the search, this variable position might vary between 0 and 5 (inclusive), with 5 indicating that the goal has been attained. Similarly, the pink car would have a fixed position of 2 and a variable position initially of 0, but varying between 0 and 4.
For this assignment, you can assume that the puzzle is a 6x6 grid, that the goal car always has size 2 and is horizontally oriented, and that all cars have size either 2 or 3. However, you are free to experiment with puzzles not satisfying these constraints.
Puzzles can be printed in a rudimentary ascii form using the State.print method. For instance, the puzzle above would be printed as follows:
+-------------+
| . . ^ . < > |
| . . v ^ ^ . |
| . < > | v .
| . . . v < > |
| . . . . . . |
| . . . . . . |
+-------------+
We are providing a file called jams.txt of the forty puzzles appearing on the puzzles.com site. However, you will surely want to test and debug your code on smaller puzzles of your own design.
Below is a summary of how my own implementation performed on the first five puzzles with the zero and blocking heuristics. (If my results seem fishy to you, please let me know right away.)
| ZeroHeuristic | BlockingHeuristic
name | nodes dpth br.fac | nodes dpth br.fac
-----------+-----------------------+----------------------
Jam-1 | 11587 8 3.066 | 8678 8 2.950
Jam-2 | 24178 8 3.380 | 6201 8 2.820
Jam-3 | 7814 14 1.789 | 5007 14 1.728
Jam-4 | 3491 9 2.326 | 1303 9 2.061
Jam-5 | 24040 9 2.928 | 8353 9 2.583
You may notice that the results you achieve for the number of nodes searched are different, and frequently better, than the sample ones above. The number of nodes searched can vary pretty widely, even among "correct" implementations, due to slight variations involving the handling of nodes in the fringe that have the same cost. The results above were achieved for an implementation in which such ties are broken in a FIFO order, i.e., the node that was placed in the fringe earliest is removed first, an approach that actually appears to be suboptimal. In any case, any way you choose to handle ties is acceptable and the potential variation in results will be taken into account when grading your assignments. (However, see the note below under "debugging tips".)
Note that in general we will not provide full-scale "reference solutions" for the programming assignments. Being able to thoroughly test and then debug computer programs is an important and often challenging task (especially for AI programs) requiring skill that is well worth developing. A good way to test your program is to run it on a variety of small problem instances where you know what the correct behavior should be. Also, sometimes the answer can be computed in two different ways; for instance, on this problem, we know that the search depth of the optimal solution should be the same regardless of which heuristic is used.
Your job is to fill in the A* algorithm which belongs in the constructor of the AStar class. A template has been provided. This constructor must take as input both a puzzle and a heuristic. The solution, represented as an array of states, must be returned in the path field of the constructed object (or path should be set to null if no solution is found). You may also wish to add other fields returning other information.
You also need to provide implementations of the BlockingHeuristic and your own AdvancedHeuristic, both being implementations of the Heuristic interface. Again, templates for these have been provided.
The final code that you turn in for A* and heuristics should not write anything to standard output or standard error. You should not modify any of the "finished" code that we are providing, with the exception of RushHour.main which you are welcome to modify.
All code and data files can be obtained from this directory, or all at once from this zip file. Documentation is available here.
After you have your code working, you should run it on the forty puzzles that we are providing. Then, examine the results, and write a brief (say, 1-3 paragraph) discussion of the results. Some questions to think about include but should not be limited to the following: How did the different heuristics compare in performance on this problem? What about the results was surprising and what was just as you expected? Why is less searching (as measured by the number of search states generated) sometimes smaller for puzzles whose solution is actually deeper? Why does it matter how ties are broken in choosing nodes to pull off the fringe? The puzzles are listed roughly in order of supposed difficulty. Is it possible to discern what makes a problem hard or easy for humans in terms of its search characteristics? How does the search approach compare to how a human might solve these problems? What thoughts do you have about how this approach might be improved?
In preparing this discussion, you are welcome and encouraged to explore the results both anecdotally and numerically. For instance, you might want to figure out what made particular puzzles hard or easy. Or, you might want to look at the results ordered by the depth of the solution, or you might want to look at average performance within each of the categories listed on the puzzles.com site (beginner, intermediate, etc.). You might even want to make graphical plots of the results (although this certainly is not required).
If you are having trouble debugging your code, here are some things to think about:
When doing a graph-search, we need to check whether we have visited a node, so that we do not explore the same part of the search space twice. How do we do this? Should we check a node to see if it has already been visited when we pull it off the fringe, i.e., before we expand it? Or should we check a node before we add it to the fringe, in other words, right after it has been generated? For BFS, it doesn't matter. But for A*, it matters a lot. Make sure that your implementation of A* is doing the right thing.
Also, if you are using the Comparator interface, keep in mind that an object that implements Comparator needs to impose a total order over the objects that it is likely to see. This means (for instance) that if compare(o1, o2) is positive (so that o1 is considered greater than o2), then compare(o2, o1) must be negative, for all objects o1 and o2. So, simply setting compare(o1,o2) > 0 every time there is a tie will not work. (If you think about how priority queues and binary decision trees work, you can see why the ordering over objects has to be a total order, and why inconsistent responses from compare() will mess things up.) See the documentation provided with the standard java platform for more details on the requirements for Comparator objects.
Using moodle, you should turn in the following:
In addition, you should turn in a hard-copy write-up including the following:
Hard copy of this written work should be submitted in the manner explained on the assignments page.
We will automatically test your code on Rush Hour puzzles, possibly different from those that we provided. Your grade will depend largely on getting the right answers. In addition, your code should be efficient enough to run reasonably fast (easily running in not more than a few minutes on all forty puzzles and all three heuristics on a typical PC) and without running out of memory. Your code should not terminate prematurely with an exception (unless given bad data, of course); code that does otherwise risks getting no credit for the automatic testing portion of the grade. As always, you should follow good programming practices, including documenting your code enough for the TA's to be able to read and understand it. Creativity in the design of the advanced heuristic will be one factor in your overall grade.
Your write-up should be clear, concise, critical, thoughtful and perceptive.
This programming assignment will be worth about 75 points (about 35 for a correct implementation of all the algorithms, 10 for documentation and good programming practice, and 30 for the write-up).
Thanks to Michael Littman from whom this assignment was liberally borrowed.
