Written Exercise 3

Due Tuesday, Nov. 28
  1. A diffuse light source with area A emits equal radiance L everywhere across its surface, uniformly in all directions. Find the total power emitted.

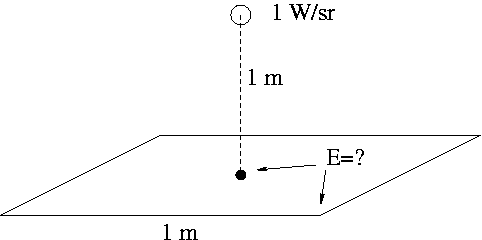

  2. A point light source having an intensity of 1 watt per steradian (emitting uniformly in all directions) is 1 meter away from the center of a square patch of surface, of edge length 1 meter. Find the irradiance at the center of the square, and at the corner.

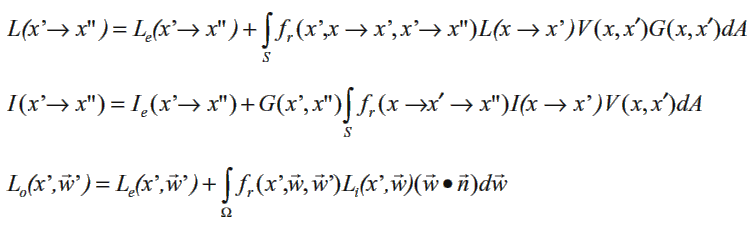

  3. Following are three different versions of the rendering equation. For each one, provide a picture ad short phrase or equation describing each term (e.g., I(x' -> x'') is the intensity of light traveling from point x' to point x''). Then, show that the equations are the same by deriving two of them from one of the others.

Submitting

Please submit the answers to these questions in writing in class on November 28 or by pdf via email to funk@princeton.edu (please include "CS526" in the subject line).

Please see the general notes on submitting your assignments, as well as the late policy and the collaboration policy.
