Part 1: Cells and Formulas
Part 2: Ranges and Functions
Part 3: Importing and Graphing Data
Part 4: How to Lie with Statistics (1)
Part 5: How to Lie with Statistics (2)

### Part 1: Cells and Formulas

#### Starting Excel

If there's an Excel shortcut on the desktop, click that; otherwise, find it with Explorer in "C: | Program Files | Microsoft Office | Office"; there will be a file called Excel.exe that you can click on. Or use "Start | Find files | Excel.exe". When things settle down, it should look approximately like this:

Take some time now to explore the menus, toolbars, and the like.

#### Basic Concepts

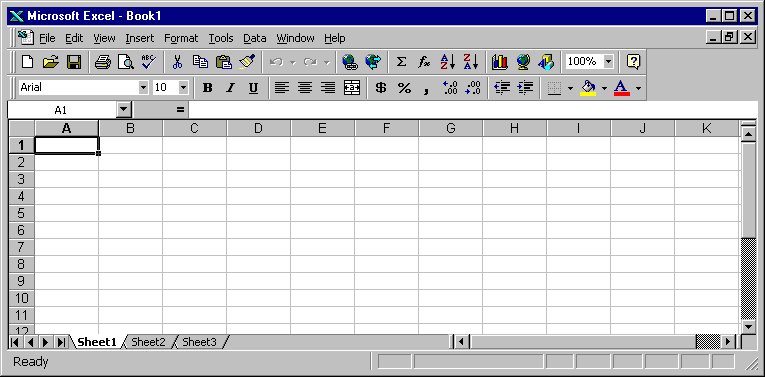

The basic organizational unit in Excel is the (work)sheet, which consists of an array of rows numbered 1 through 65536 (where does that number come from?) and columns labeled A, B, C, ..., through IV (where does that label come from?). Near the bottom of the Excel window you will see a tab labeled Sheet1, which is Excel's default name for the first sheet. A workbook is a collection of one or more sheets, a useful way to group related data sets in a single file but keep them cleanly separated. The default workbook name is Book1, which appears in the title bar of the window. You're going to put the results of various parts of this lab into multiple sheets, so pay attention to where things are going.

The individual elements of a spreadsheet are called cells. A cell is identified by its row and column; thus the cell in the upper left corner (highlighted when you started Excel) is named A1. The highlighted cell is called the active cell.

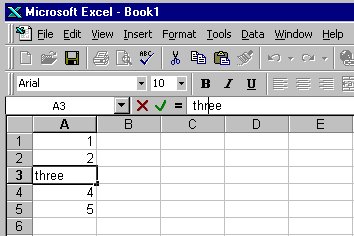

Cells can contain numbers (the most common case) or text, and their values can be set by what you type into them, loaded from files or the Internet, or computed by a formula that derives a value from the values of other cells.

Time to do some experimenting.

• Type some numbers into cells: put 1 in A1, 2 in A2, etc., down to 5 in A5.
• If you start at A1, then push Enter after each value, Excel will advance the active cell to the next row automatically.
• Experiment with correcting typing errors, going back to change a previous value, and so on. You can fix mistakes by retyping, or you can edit in the small editing window just above the column labels:

You can change the format of cell data by "Format | Cells", and then select "Number" to set the numeric display, "Alignment" to control centering, "Font" to set size and color, and so on. The most common reason to adjust cell format is to cause data to be treated as numeric and displayed with the same number of significant digits, or to define the format for data that represent dates. You can instead put text in cells to serve as headings for columns or rows; text can be set in various sizes and fonts as well.

You can use commands under "Edit" to clear cell contents entirely. In all of these, you can select a single cell, a group of cells, one or more entire rows, or one or more entire columns; the action applies to the selected range.

To insert an additional row or column, highlight the row or column before which you want to insert, then use the "Insert" menu.

#### Formulas

Each cell can have attached to it a formula that computes the value displayed in the cell, usually from values in other cells. Then when cell values change, formulas are re-evaluated, and updated values are displayed.

A formula is typed into a cell just like data except that the first character must be an equals sign =. To experiment with this:

• Make sure cells A1 through A5 contain the digits 1 through 5.
• Go to cell A7 and type =A1+A2+A3+A4+A5 and push Enter. (You can type in lower case if you prefer; Excel will capitalize automatically.) If this doesn't cause cell A7 to display the value 15, check your typing.
• Now experiment with changing values in cells A1 through A5, verifying each time that the sum in A7 is properly updated.
Note that when you select A7 later, the cell value is displayed in the cell itself, but the formula is displayed in the formula area just above the sheet.

A further experiment:

• Type the formulas =A1*A1 in cell B1, =A2*A2 in cell B2, and so on through B5. Verify that the computed values are correct.
• Place the corresponding summation formula in B7 and verify that it produces the right answer.

It takes a lot of typing to enter data values and formulas this way, so Excel provides some convenient shortcuts.

• Clear all the cells that you have used so far.
• Put 1 in A1 and 2 in A2.
• Select A1 and A2.
• Place the mouse on the lower right corner of A2; the cursor should change to a little plus sign.
• Drag the plus sign down the column to row 40 and release it.
The column should fill with the integers from 1 to 40: Excel has made a (very good) guess about how you want the sequence 1, 2, ... extended and has done it for you.
• Type the formula =A1*A1 in cell B1.
• Using the same technique, extend the series to cell B40 and verify that the values are right.

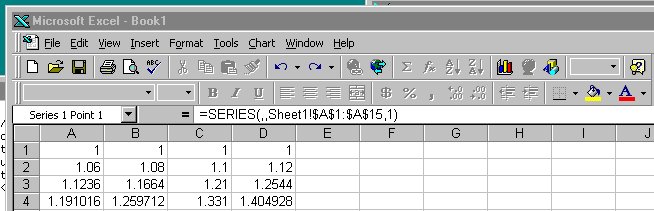

Again, Excel has extended a sequence, but observe carefully that it has extended the formulas, not the values.

Finally,

• Type the formula =2^A1 in cell C1.
• Extend this series down to cell C40.
• If you narrow the column, the numbers will change format, likely twice. What's happening?
• Suppose you start with the value 2 in cell D1. What different (not the same as in C2) formula could you put in D2 and then extend to D40 that would provide the same sequence of values in D1:D40 as in C1:C40?

Excel, like Word, uses Visual Basic as a scripting language. All of Excel's myriad capabilities (including anything you can do with keyboard and mouse) are accessible from VB code. This can be used to organize much more complicated computation than would be feasible with simple formulas in cells, to tailor the interface for specific purposes, and to access all of the repertoire of other components on Windows. And of course the bad news is that spreadsheets can be just as much carriers of VB-based viruses as Word documents, so you should run Excel with macros disabled by default.

We won't pursue any of this further, but if you want to explore, VB is waiting for you: Tools / Macro / VB Editor.... One of the neatest features is that you can turn on the "macro recorder"; this will record whatever subsequent actions you perform and convert them into the equivalent VB code. It's a very effective learning tool and a valuable complement to the manual.

#### The Rule of 72

We've talked about "the rule of 72", a handy rule of thumb that is used to make quick estimates of how fast interest or investments compound. If you invest a hundred dollars now at 10% per annum (assuming you could do that well!), at the end of a year it will pay ten dollars of interest. That gives you \$110; if you invest that for the second year at the same 10%, at the end of two years, you'll have \$121. Eventually, after about 7 or 8 years, you'll have \$200; your money will have doubled.

The rule of 72 tells you how to estimate the doubling time approximately: divide 72 by the interest rate, and that's the number of periods. So at 10% per year, the doubling time is about 7.2 years. If the interest rate is only 6%, the doubling time is about 12 years. Of course, you can turn it around: divide 72 by the number of periods and it gives the interest rate. Consider Moore's Law, that the capacity of semiconductor chips doubles every 18 months. By the Rule of 72, we see that capacity is compounding at about 72/18 = 4% per month.

The approximation isn't perfect, but it's pretty accurate for the kinds of percentages found in daily life for home mortgage interest rates, bond interest, car payments, tuition increases, and so on. If you want to see how it works, Google provides lots of hits; this one is pretty clear.

Your task is to make a spreadsheet that shows how good the approximation is for a variety of interest rates.

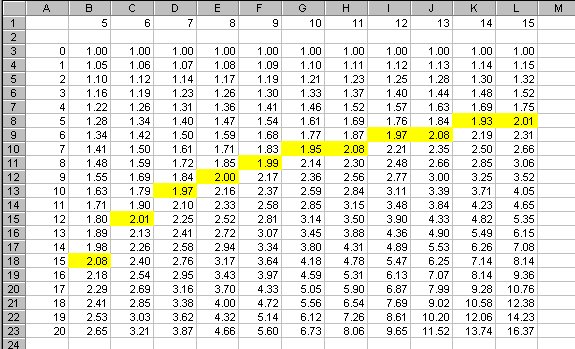

 Clear the contents of Sheet1. Create a table with a heading row B1:L1 that contains the rate in percent from 5 to 15. Put the year number in A3:A23, from 0 to 20 inclusive. Into the range B3:L23 put the compounded values, beginning with year 0. The formula for compound interest is value = (1+rate)^years. Set the cell format for these cells to display exactly two digits after the decimal point. Set a yellow background color in the cell in each column where the initial value is closest to having doubled.

Try to do this with as little typing and as much use of Excel's extension feature as possible. Your table should look like this when done:

The rule shows further doublings as well; for instance, note that at 8%, one doubling takes 9 years, and the next takes another 9 years -- that is, 18 years doubles twice, or a factor of four. Check some of the other entries for similar consistency.

In this lab, you will be using a new sheet for each part, each with its own name. For this part,

 Double-click on the tab that says Sheet1. Type the name Rule72 in its place. Save the spreadsheet in a file called lab7.xls.

You'll be updating this file throughout the labs, so be sure to save regularly.

### Part 2: Ranges and Functions

#### Ranges

So far we have talked about groups of cells by explicitly naming them in a summation like =A1+A2+A3, or implicitly by letting Excel extend a series for us. It's also possible to specify a rectangular array of cells in terms of the cells at the upper left and lower right corners. Such an array is called a range, and is written with the names of the two cells separated by a colon.

For example, A1:A10 describes a column range 10 cells high but only one cell wide. The range B2:K2 represents a row of 10 cells starting at B2, and A1:J10 represents an array of 100 cells, 10 by 10, that starts in the upper left corner. As a special case, A2:A2 is a range that consists of a single cell, and that can be abbreviated to the familiar A2.

Excel provides more complicated ranges, but for the most part, simple rectangular arrays are all we need. It is also possible to name a range, which is easier to understand and refer to in a big spreadsheet; we won't be using that facility here.

#### Functions

The range notation gives us a way to specify an arbitrarily large group of cells, and thus write out computations more compactly and clearly. For instance, it's impractical to type a formula like =A1+A2+A3+... if there are more than a few terms in the summation; a range is a lot easier.

Excel provides a great number of mathematical functions that perform operations over a range of cells. The simplest of these is sum, which adds up the numbers in a range: the formula =SUM(range) produces the sum of the values in the cells in the specified range.

• Go to an unused Sheet.
• Using the methods of the previous section, put the numbers 1..10 in cells A1 through A10.
• Put the formula =SUM(A1:A10) in cell A12.
• Verify that the answer is correct.
Among the other useful functions are average, median, product, max (which computes the maximum value in a range), min, and count, which counts the number of non-blank cells in the range. There are also conditionals like countif and sumif that count or sum only those cells that match some condition.
• Using the data in the range A1:C5, put formulas for sum, average, max, min, and count of each row in cells E1 through E5.
• Put numbers in some of the cells in the range A1 through C5 and observe how the values of the formulas are updated. Be sure you understand what is happening.

#### Inserting Rows and Columns

What happens if you need another row or column, because your data set has expanded? If you insert a row or a column within a range, Excel is pretty clever about guessing what you mean, and will extend the formula for you. But if you add a row or column at one end of the range, Excel isn't sure what you had in mind, and doesn't change the formula. Verify this behavior:

• Put the numbers 1..10 in cells A1 through A10.
• Put the formula =SUM(A1:A10) in cell A12.
• Now insert a new row 10 and put the value 100 in it. Note that the sum is now displayed in A13 instead of A12. Does the value in A13 change? Does the formula in A13 change?
• Continue the experiment by inserting a new row before row 1, and a new row after the last row of data. Check what happens to the data and the formula.
There's nothing to save for this part of the lab, but be sure that you understand how these functions work, since you will need some of them in later parts.

### Part 3: Importing and Graphing Data

#### Importing Data From Files

It's all well and good to create synthetic data to play with, but in the real world, one usually works with real numbers. In this section, you will experiment with data from Yahoo Finance, which provides a wealth of financial information in convenient formats.

The task is to generate a table that displays stock prices and relative performance for two stocks for the past two or three months. You can choose any two stocks you like. We looked at Cisco vs. Microsoft in class; other interesting pairs might be selected from among Amazon, Ebay, Google, Yahoo, IBM, Oracle, Ford, GM, etc. Here we will just call the two stocks FOO and BAR.

• At finance.yahoo.com, select and display your first stock.
• Go to "Historical prices", set the range of dates, push "Get Prices".
• Either save the file and import it into Excel, or open it directly; the latter is easier.
• Repeat for your second stock.

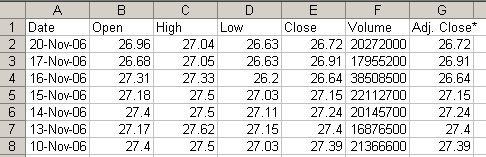

You now have two Excel windows, each displaying something like this:

Now merge the two data sequences into one sheet:

• In each sheet, delete all columns except "Adj. Close" and delete the first row. This should leave exactly one column of prices in each sheet.
• In BAR, copy column A.
• In FOO, select cell B1, then Paste; this should paste all the BAR values beside the matching FOO values.

The prices are in most recent first order, which is wrong for graphing. Reverse them:

• Insert a new column A.
• Insert numbers 1, 2, ... down column A.
• Select the three columns, then under Data, pick "Sort...", and sort the data into descending order. It should now look something like this:

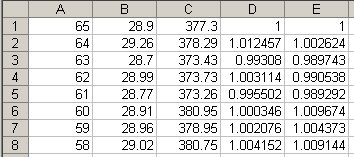

At this point, if you select columns B and C, you can produce a graph that compares the two stocks, but it won't be very interesting if their prices differ by too much, as in the table above. So the next step is to make two new columns that show how the prices have changed in proportion to the first value.

• In D1, enter the formula =B1/B\$1.
• Extend it down to the end of the data.
• Repeat in E1 for column C.
The formula =B1/B\$1 is not an error. Normally when Excel extends formulas it modifies cell references, using relative values. The \$ in a reference like B\$1 tells Excel to leave that cell reference unchanged ("absolute" instead of relative), so the subsequent formulas will be =B2/B\$1, =B3/B\$1, etc. Thus each cell will contain the ratio of the price to the initial price. The result looks like this:

#### Graphing Data

The next step is to draw a graph of some of this data. Excel will let you display data in a lot of different ways, some sensible and some definitely not. We want to see two graphs here. One can be a plain vanilla graph that shows the comparison between the two stocks in a simple way, like this:

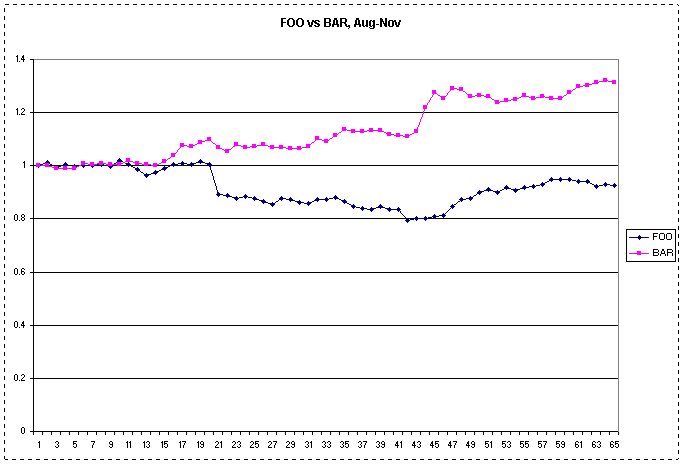

 Use the chart wizard ("Insert | Chart" or this icon ) to create a graph that looks approximately like the one above but with a meaningful title, proper labels, etc. Use the chart wizard to create another graph that is as different from the previous one as you can manage while still displaying the same information in a form that can potentially be understood. Place it near the other chart. Make the two charts approximately the same size and position them so the charts and the numeric data can all be seen at once.

Now transfer the data and the graphs to your lab7.xls. (This assumes that you are also running Excel on lab7.xls.)

 Select Edit, then Move or Copy Sheet, then "To book" lab7.xls. Check "Create a copy", push OK. In your lab7.xls, double-click on the tab for the copied worksheet and rename it Stocks.

### Part 4: How to Lie with Statistics (1)

#### Gee-Whiz Graphs

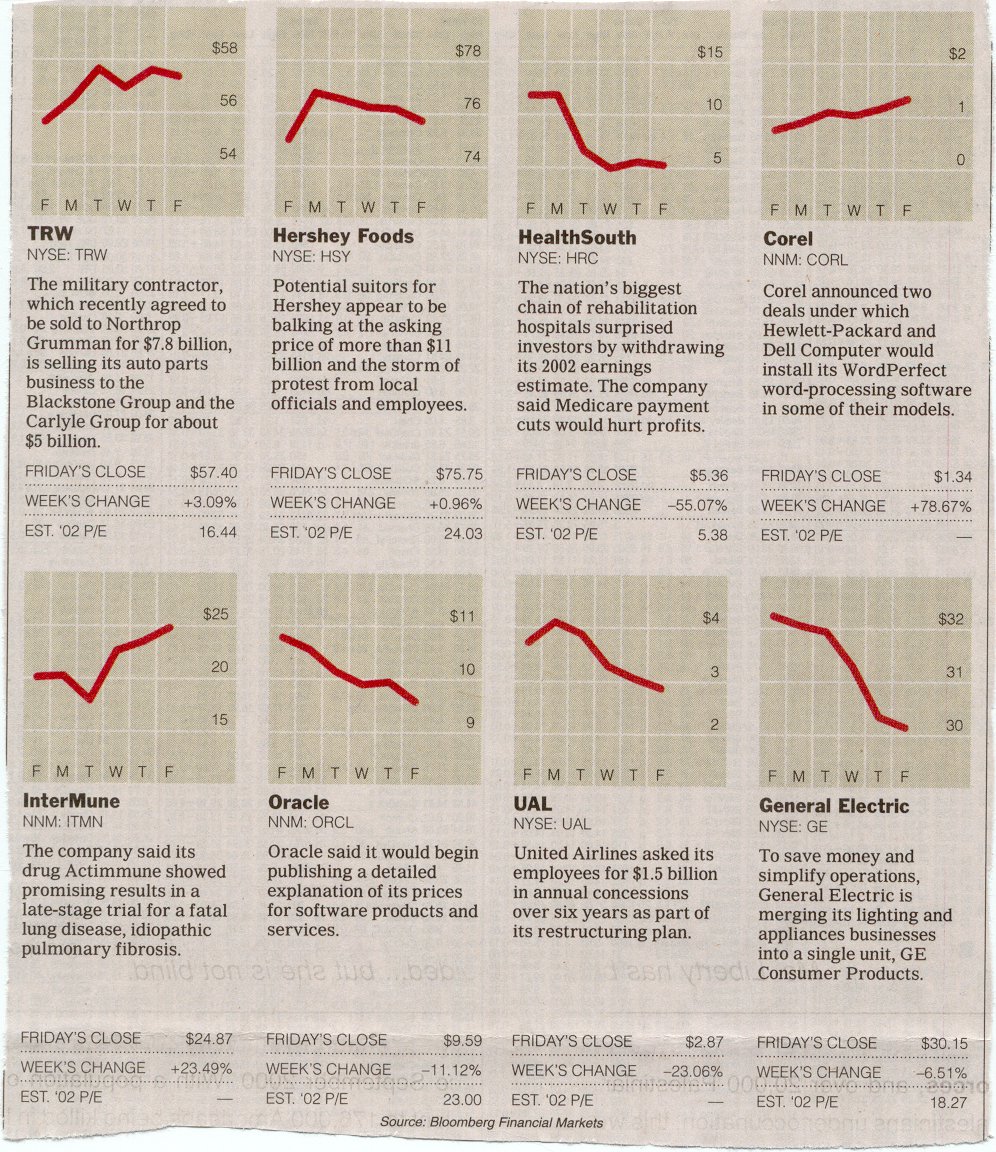

Every week, the New York Times business section shows the week's performance for 8 selected stocks; the graphical component shows how their prices have risen and/or fallen during the week. Here's the picture for the week ending August 30, 2002:

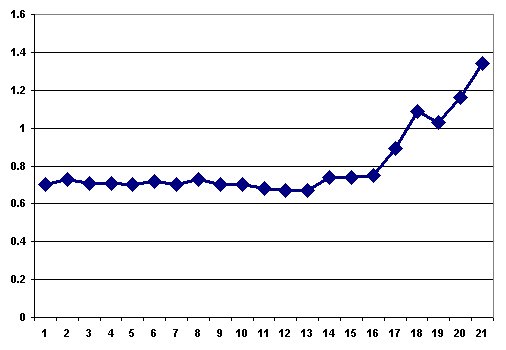

A quick glance at these graphs suggests that TRW, Corel, and InterMune all went up about the same amount, for example, while HealthSouth, Oracle and UAL all went down about the same amount; GE fared a little worse.

Or did they? These are examples of what Darrell Huff, in the wonderful book How to Lie with Statistics, calls the Gee-Whiz Graph, a form of statistical chicanery that is all too common in newspapers (even the Prince!) and magazines. (Six months later, the Times printed an article decrying the practice, though without acknowledging how often they did it themselves; their subsequent charts have on average been much better.)

Gee-whiz graphs are deceptive because they use the entire chart area to give the impression of a big change. This gives entirely the wrong impression when not much is happening and it makes comparisons quite misleading. Consider TRW versus Corel. TRW seems to have risen a bit more than Corel, at least graphically, but in fact their fortunes were enormously different: TRW rose a modest 3%, while Corel went up by 78%! Similarly, one could easily conclude that GE went down more than HealthSouth, but in fact, the declines are 6.5% and 55%. (This was about the beginning of a decline for HealthSouth as more and more fraud was uncovered in their accounting.)

The heart of the deception is plotting a graph that doesn't include the full range of data. Each graph should be plotted with the Y axis beginning at zero; that would give a much more accurate sense of the magnitude of the change. And then if each is plotted with a comparable upper bound, somewhat above the largest data value, that makes it possible to compare the two graphs in a meaningful way.

Your task is to produce two sensible graphs that permit such a fair comparison, by having the Y axis start at 0 and the values just about fill the vertical range, like this graph of the Corel data:

The files hrc.txt and ge.txt contain the raw data from which these graphs were produced, for the entire month of August 2002. Use the closing prices from those files to produce two graphs of about the same size (2 or 3 inches on a side) but where the scale goes from 0 to the next round number above the higest value; plot them side by side, along with the data values in three columns (date, HealthSouth, GE). You're welcome to pick any other pair of interesting stocks over any period.

Note that the data in these text files is in the wrong order; use Excel's sorting capabilities (e.g., Data | Sort...) to get it into the right order.

 Go to a new sheet and rename it Lies Load the date and closing-price data from hrc.txt into A1:B22 of sheet Lies. Cut and paste is easiest. Draw a graph approximately like the one above, but with the Y origin set to zero. Load the data from ge.txt into C1:C22 of sheet Lies. Draw a graph like the one above, with Y origin set to zero. Position the graphs side by side and near the 3 data columns.

### Part 5: How to Lie with Statistics (2)

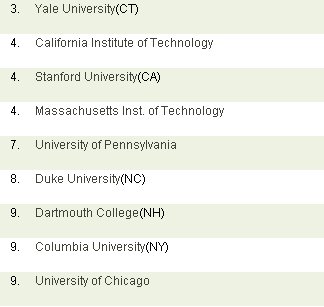

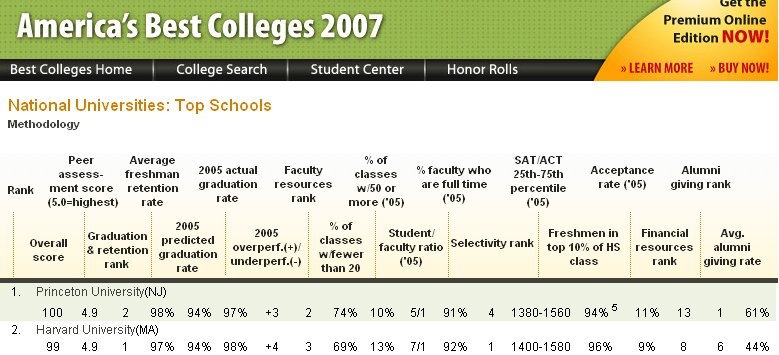

It's always nice when others recognize one's true greatness, as US News and World Report has done every year since 2000:

But how are these rankings really determined? And just how much do they really mean?

US News explains their methodology. They collect data on a variety of factors for each school, weight the factors according to how important they seem, and then sort the results. For example, "peer assessment" accounts for 25% of the score, "student selectivity" for 15% (half of that is SAT scores), and alumni giving percentage for 5%. Princeton ties with Harvard on the first, is behind on the second, and wins big on the third. So if only SAT scores mattered, Princeton would be further down. (The details change from year to year, and each year US News becomes more circumspect about revealing anything.)

There are at least two problems with these ranking schemes: the data itself is suspect, and the weighting factors are arbitrary. (We pass over how schools themselves might try to game the system, a tactic that is not unheard of.) In this lab, we'll accept the data values, however flaky they might be, and focus on the weighting factors.

The file usnews2004.xls contains some carefully fiddled data and a set of weights, loosely based on the data from 2004, that almost preserve the 2004 ordering; many factors have been unceremoniously dropped and a few data values have been adjusted, so don't read anything into this, especially not about the merits of individual schools then or now. Here is the display:

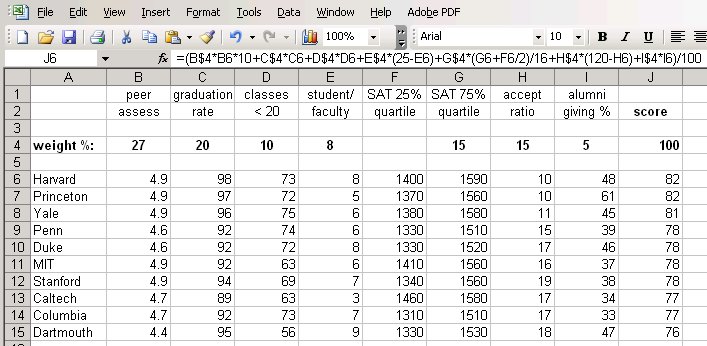

The first two rows show the factors, and the fourth row gives weights that sum to 100% (cell J4). The range J6:J15 shows the computed scores. The formula box shows the formula being used to compute J4; subsequent rows have the same formula except for cell references. A couple of factors are combined (SAT) or complemented (acceptance rate); for instance a low acceptance rate is deemed better than a high acceptance rate.

Your task is to find several sets of non-negative weights that will rearrange the schools in various ways. Note that the weights in B4:I4 must sum to 1.

• Download file usnews2004.xls from the browser and open it in Excel. (It will appear in a new workbook.)
• Select and Copy all its cells.
• Go to Book1.
• Insert a new Sheet, and rename it Rank.
• Select cell A1 and Paste.
Now you can begin experimenting to find interesting weighting factors.

 Find a set of weights that drops Harvard as far down as you can while ensuring that Princeton is in first place. Copy the weights into B17:I17. In the interests of fairness, find a set of weights that drops Princeton as far down as you can while putting Harvard in first place. Copy them into B18:I18. Find a set of weights that raises Dartmouth as high up as you can manage. Copy them into B19:I19.

Give this a decent effort, not just the first obvious thing that happens to make a change. You should also experiment with Excel's sorting capabilities here; at the end, you should be able to sort the schools by any combination of factors, for example, by decreasing reputation score and within that by increasing acceptance rate.

### Part 6: Submitting your Work

At this point you should have a workbook with four sheets: Rule72, Stocks, Lies, Rank. Check through them to make sure they look right.

• Be sure to save your work as lab7.xls on your H: drive. This is your backup in case something goes wrong with the submission or your computer.
• Mail a copy of lab7.xls to yourself, as another backup. Make sure that it arrives OK, that the attachment is about the right size, etc.

When you are absolutely sure that you have all the individual sheets in lab7.xls and have saved it on your network drive, send email to cos109@princeton.edu, with lab7.xls as an attachment. The subject of the message should be "Lab 7 - Your Name".
